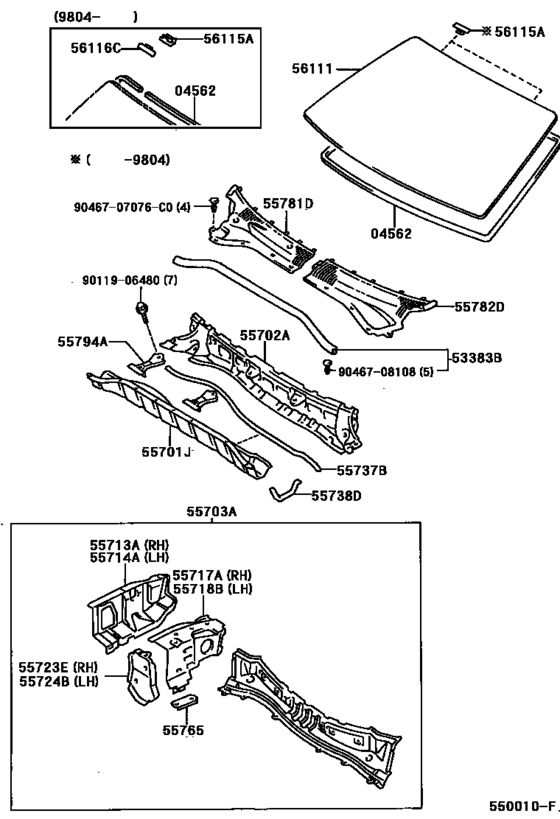

Cowl Panel & Windshield Glass ([05.1996 - ] (9605- )) Diagram Toyota IPSUM
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- SXM10
- grade
- E
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- From
- 05.1996
- To
- 05.2001
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-26010 Dam Kit, Windshield Glass[05.1996 -] CXM10,SXM1# |
04562-26010 |
US $39.06 |
||
|
53383B
|
53383B
53383-44010 Seal, Hood To Cowl Top[05.1996 - 09.1999] CXM10,SXM1# |
53383-44010 |
US $36.11 |
||
| replacement | |||||
|
53383B
|
53383B
53383-44012 Seal, Hood To Cowl Top[05.1996 - 09.1999] CXM10,SXM1# |
53383-44012 |
US $36.40 |
||
|
53383B
|
53383B
53383-44012 Seal, Hood To Cowl Top[09.1999 -] CXM10,SXM1# |
53383-44012 |
US $36.40 |
||
|
55701J
|
55701J
55712-44010 Panel Sub-Assy, Cowl Top, Outer[05.1996 -] CXM10,SXM1# |
55712-44010 |
US $155.79 |
||
|
55702A
|
55702A
55702-44010 Panel Sub-Assy, Cowl Top, Outer Front[05.1996 -] CXM10,SXM1# |
55702-44010 |
US $168.90 |
||
| replacement | |||||
|
55702A
|
55702A
55702-44020 Panel Sub-Assy, Cowl Top, Outer FrontCOWL TOP, OUTER FRONT [05.1996 -] CXM10,SXM1# |
55702-44020 |
US $170.35 |
||
|
55703A
|
55703A
55703-44900 Panel Sub-Assy, Cowl Top, Inner[05.1996 -] CXM10,SXM1# |
55703-44900 |
US $358.18 |
||
|
55713A
|
55713A
55713-44010 Panel, Cowl Top Side, Rh[05.1996 -] CXM10,SXM1# |
55713-44010 |
US $53.14 |
||
|
55714A
|
55714A
55714-44010 Panel, Cowl Top Side, Lh[05.1996 -] CXM10,SXM1# |
55714-44010 |
US $53.14 |
||
|
55717A
|
55717A
55717-44010 Panel, Cowl Top Side, Inner Rh[05.1996 -] CXM10,SXM1# |
55717-44010 |
US $44.84 |
||
|
55718B
|
55718B
55718-44010 Panel, Cowl Top Side, Inner Lh[05.1996 -] CXM10,SXM1# |
55718-44010 |
US $44.84 |
||
|
55723E
|
55723E
55723-44010 Gusset, Front Panel, Rh[05.1996 -] CXM10,SXM1# |
55723-44010 |
US $18.20 |
||
|
55724B
|
55724B
55724-44010 Gusset, Front Panel, Lh[05.1996 -] CXM10,SXM1# |
55724-44010 |
US $18.20 |
||
|
55737B
|
55737B
55737-44010
Seal, Heater Air Duct Splash Shield, No.1
[05.1996 -] CXM10,SXM1# |
55737-44010 |
— | ||
| replacement | |||||
|
55737B
|
55737B
55737-48010 Seal, Heater Air Duct Splash Shield, No.1[05.1996 -] CXM10,SXM1# |
55737-48010 |
US $14.71 |
||
|
55738D
|
55738D
55738-44010 Seal, Heater Air Duct Splash Shield, No.2[05.1996 -] CXM10,SXM1# |
55738-44010 |
US $5.68 |
||
|
55765
|
55765
55765-44010 Bracket, Hood Damper Mounting[05.1996 -] CXM10,SXM1# |
55765-44010 |
US $4.96 |
||
|
55781D
|
55781D
55708-44010 Louver, Cowl Top Ventilator, Rh[05.1996 -] CXM10,SXM1# |
55708-44010 |
US $101.92 |
||
| replacement | |||||
|
55781D
|
55781D
55708-44020 Louver, Cowl Top Ventilator, Rh[05.1996 -] CXM10,SXM1# |
55708-44020 |
US $113.57 |
||
|
55781D
|
55781D
55708-44020 Louver, Cowl Top Ventilator, Rh[05.1996 -] CXM10,SXM1# ｶﾝﾚｲﾁ ｼﾖｳ |
55708-44020 |
US $113.57 |
||
|
55782D
|
55782D
55709-44010 Louver, Cowl Top Ventilator, Lh[05.1996 -] CXM10,SXM1# |
55709-44010 |
US $101.92 |
||
| replacement | |||||
|
55782D
|
55782D
55709-44020 Louver, Cowl Top Ventilator, Lh[05.1996 -] CXM10,SXM1# |
55709-44020 |
US $113.57 |
||
|
55782D
|
55782D
55709-44020 Louver, Cowl Top Ventilator, Lh[05.1996 -] CXM10,SXM1# ｶﾝﾚｲﾁ ｼﾖｳ |
55709-44020 |
US $113.57 |
||
|
55794A
|
55794A
55794-44010 Bracket, Weatherstrip Wiper Pivot Guide, No.2[05.1996 -] CXM10,SXM1# |
55794-44010 |
US $13.69 |
||
|
56111
|
56111
56111-44030
Glass, Windshield
[05.1996 -] CXM10,SXM1#..E ＊ＴＬ，Ｔ＝４．７，グリーン |
56111-44030 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[04.1998 -] CXM10,SXM1# |
56115-30100 |
from US $1.70 |
||
|
56115A
|
56115A
56116-35050 Stopper, Windshield Glass, No.1[05.1996 - 04.1998] CXM10,SXM1# |
56116-35050 |
from US $1.92 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[04.1998 -] CXM10,SXM1# |
56116-22050 |
from US $1.38 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
|
9046708108
|
9046708108
90467-08108 Clip(For Hood To Cowl Top Seal) |
90467-08108 |
from US $0.82 |
||
