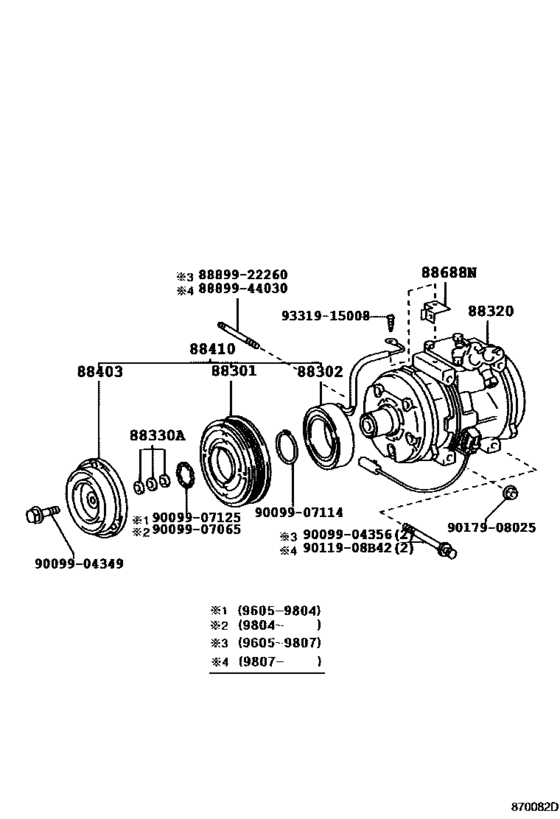

Heating & Air Conditioning - Compressor ([05.1996 - ] (9605- )SXM1#) Diagram Toyota IPSUM
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- SXM10
- grade
- E
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- From
- 05.1996
- To
- 05.2001
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-32070
Rotor Sub-Assy, Magnet Clutch
[07.1998 -] SXM10..E |
88412-32070 |
— | ||
|
88301
|
88301
88412-44010
Rotor Sub-Assy, Magnet Clutch
[05.1996 - 08.1997] SXM1# |
88412-44010 |
— | ||
|
88302
|
88302
88411-22310
Stator Sub-Assy, Magnet Clutch
[05.1996 - 08.1997] SXM1# |
88411-22310 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[05.1996 - 08.1997] SXM1# |
88411-2A030 |
US $79.67 |
||
| replacement | |||||
|
88302
|
88302
88411-02030 Stator Sub-Assy, Magnet Clutch[05.1996 - 08.1997] SXM1# |
88411-02030 |
US $294.80 |
||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[08.1997 - 07.1998] CXM10,SXM1# |
88411-2A030 |
US $79.67 |
||
| replacement | |||||
|
88302
|
88302
88411-02030 Stator Sub-Assy, Magnet Clutch[08.1997 - 07.1998] CXM10,SXM1# |
88411-02030 |
US $294.80 |
||
|
88302
|
88302
88411-44010 Stator Sub-Assy, Magnet Clutch[07.1998 -] SXM10..E |
88411-44010 |
US $61.68 |
||
|
88320
|
88320
88320-44010
Compressor Assy, Cooler
[05.1996 - 08.1997] SXM1#..E,IPSUM |
88320-44010 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-44H90
Compressor Assy, Cooler
[05.1996 - 08.1997] SXM1#..E,IPSUM |
88320-44H90 |
— | ||
|
88320
|
88320
88320-44020
Compressor Assy, Cooler
[05.1996 - 08.1997] SXM1# ｱﾘ(ﾘﾔ ｸ-ﾗ) |
88320-44020 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-44H91
Compressor Assy, Cooler
[05.1996 - 08.1997] SXM1# ｱﾘ(ﾘﾔ ｸ-ﾗ) |
88320-44H91 |
— | ||
|
88320
|
88320
88320-44050
Compressor Assy, Cooler
[04.1998 - 07.1998] SXM10..E |
88320-44050 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-42H91
Compressor Assy, Cooler
[04.1998 - 07.1998] SXM10..E |
88320-42H91 |
— | ||
|
88320
|
88320
88320-44110
Compressor Assy, Cooler
[07.1998 - 05.2001] SXM10..E |
88320-44110 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.1996 - 08.1997] SXM1# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[05.1996 - 08.1997] SXM1# |
88403-30290 |
US $86.66 |
||
|
88403
|
88403
88403-32010
Hub Sub-Assy, Magnet Clutch
[07.1998 -] SXM10..E |
88403-32010 |
— | ||
|
88410
|
88410
88410-44010
Clutch Assy, Magnet
[05.1996 - 08.1997] SXM1# |
88410-44010 |
— | ||
|
88410
|
88410
88410-44060 Clutch Assy, Magnet[07.1998 -] SXM10..E |
88410-44060 |
US $556.19 |
||
|
88688N
|
88688N
88688-33260
Bracket, Cooler Compressor
[05.1996 - 08.1997] SXM1# |
88688-33260 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8889922260
|
8889922260
88899-22260
Cover, Evaporator
|
88899-22260 |
— | ||
|
8889944030
|
8889944030
88899-44030
Cover, Evaporator
|
88899-44030 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
US $4 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
