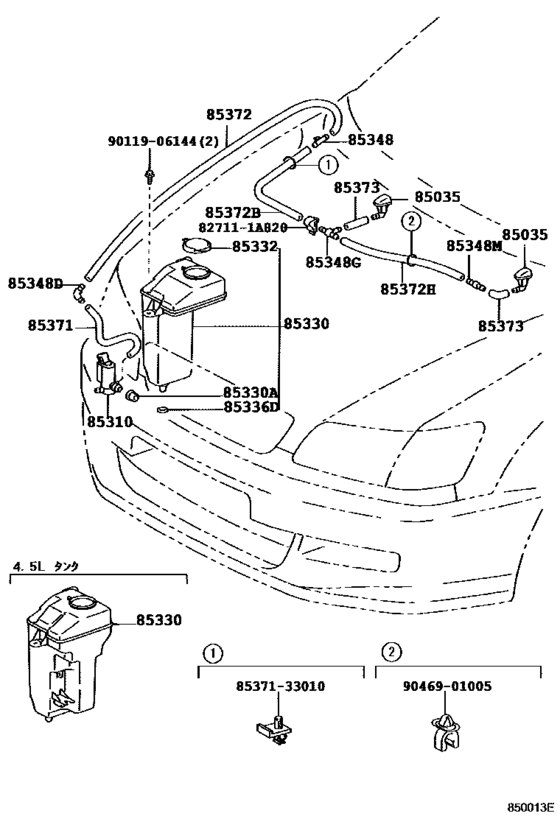

Windshield Washer ([05.1996 - ] (9605- )) Diagram Toyota IPSUM
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- SXM10
- grade
- E
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- From
- 05.1996
- To
- 05.2001
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-44010 Nozzle Sub-Assy, Washer[05.1996 -] CXM10,SXM1# |
85381-44010 |
from US $11.27 |
||
|
85310
|
85310
85330-10290
Motor And Pump Assy, Windshield Washer
[05.1996 -] CXM10,SXM1# |
85330-10290 |
— | ||
|
85330
|
85330
85315-44010
Jar Assy, Windshield Washer
[05.1996 -] CXM10,SXM1# 2.5L:ｲﾗｽﾄｻﾝｼﾖｳ |
85315-44010 |
— | ||
|
85330
|
85330
85315-44020
Jar Assy, Windshield Washer
[05.1996 -] CXM10,SXM1# 4.5L:ｲﾗｽﾄｻﾝｼﾖｳ |
85315-44020 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1996 -] CXM10,SXM1# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1996 -] CXM10,SXM1# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1996 -] CXM10,SXM1# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-20300 Cap, Windshield Washer Jar[05.1996 -] CXM10,SXM1# |
85316-20300 |
US $3.14 |
||
|
85336D
|
85336D
85336-20340
Packing, Windshield Washer Jar
[05.1996 -] CXM10,SXM1# |
85336-20340 |
— | ||
|
85348
|
85348
85375-17050 Joint, Windshield Washer Hose, No.1[05.1996 -] CXM10,SXM1# |
85375-17050 |
US $0.99 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[05.1996 -] CXM10,SXM1# |
85355-20200 |
from US $1.03 |
||
|
85348G
|
85348G
85375-28110 Joint, Windshield Washer Hose, No.1[05.1996 -] CXM10,SXM1# |
85375-28110 |
from US $3.36 |
||
|
85348M
|
85348M
85349-89122 Valve Sub-Assy, Washer[05.1996 -] CXM10,SXM1# |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1996 -] CXM10,SXM1# ＊Ｈ，Ｌ＝２３０ |
90099-33080 |
US $9.43 |
||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1996 -] CXM10,SXM1# ＊Ｈ，Ｌ＝１３７０ |
90446-07001 |
from US $2.10 |
||
|
85372B
|
85372B
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1996 -] CXM10,SXM1# ＊Ｈ，Ｌ＝５４０ |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1996 -] CXM10,SXM1# ＊Ｈ，Ｌ＝４５０ |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1996 -] CXM10,SXM1# ＊Ｈ，Ｌ＝７０ |
90099-33080 |
US $9.43 |
||
|
827111A820
|
827111A820
82711-1A820 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A820 |
US $1.65 |
||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
from US $1.33 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9046901005
|
9046901005
90469-01005 New Genuine Part |
90469-01005 |
US $2.72 |
||
