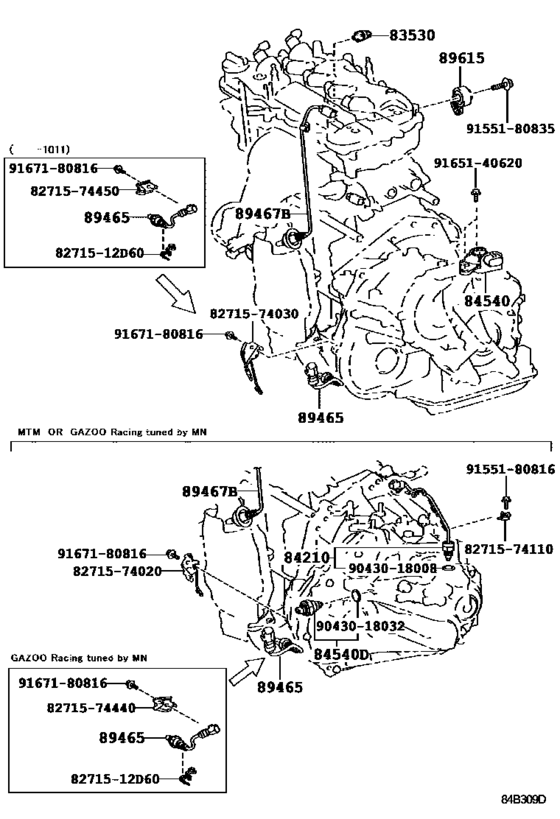

Switch & Relay & Computer ([08.2009 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0908- )NGJ10) Diagram Toyota IQ
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGJ10
- grade
- 130G
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- From
- 11.2010
- To
- 03.2016
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[11.2008 -] KGJ10,NGJ10 ＤＥＮＳＯ |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2008 -] KGJ10,NGJ10 ＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[11.2008 -] KGJ10,NGJ10 ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2008 -] KGJ10,NGJ10 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-74010 Switch Assy, Back-Up LampBACK-UP LAMP [11.2010 - 03.2016] NGJ10..6F |
84210-74010 |
US $20.24 |
||
|
84540D
|
84540D
84545-20021 Switch Assy, Neutral Start[11.2010 - 03.2016] NGJ10..6F |
84545-20021 |
US $26.35 |
||
|
89465
|
89465
89465-74030 Sensor, Oxygen[11.2010 -] NGJ10 |
89465-74030 |
US $149.76 |
||
|
89467B
|
89467B
89467-74030 Sensor, Air Fuel RatioAIR FUEL RATIO [08.2009 -] NGJ10 |
89467-74030 |
US $228.96 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[11.2008 -] KGJ10,NGJ10 |
89615-20090 |
from US $36.02 |
||
|
8271512D60
|
8271512D60
82715-12D60 Bracket,wiring Harness Clamp |
82715-12D60 |
US $3.20 |
||
|
8271574020
|
8271574020
82715-74020
Bracket,wiring Harness Clamp
|
82715-74020 |
— | ||
|
8271574030
|
8271574030
82715-74030 Bracket,wiring Harness Clamp |
82715-74030 |
US $5.68 |
||
|
8271574110
|
8271574110
82715-74110 Bracket,wiring Harness Clamp |
82715-74110 |
US $2.91 |
||
|
8271574440
|
8271574440
82715-74440
Bracket,wiring Harness Clamp
|
82715-74440 |
— | ||
|
8271574450
|
8271574450
82715-74450 Bracket,wiring Harness Clamp |
82715-74450 |
US $5.24 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9043018032
|
9043018032
90430-18032 New Genuine Part |
90430-18032 |
US $1.44 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.80 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.84 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
