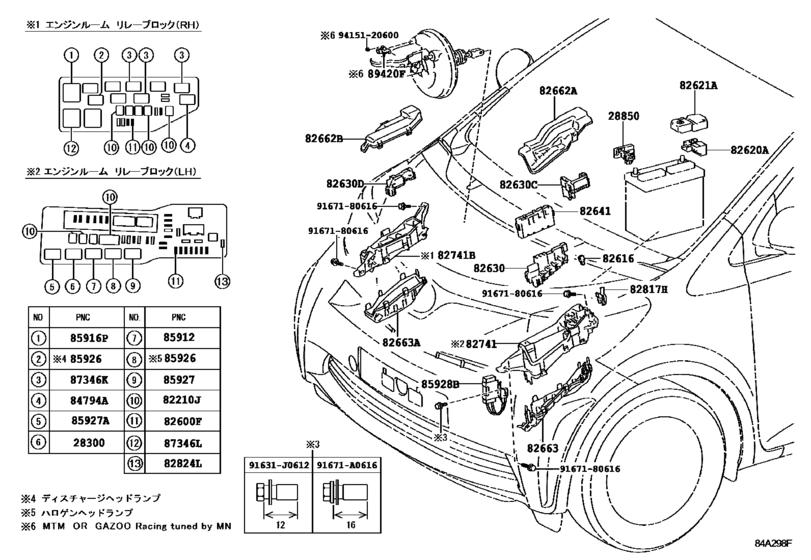

Switch & Relay & Computer ([11.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ (0811- )) Diagram Toyota IQ
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGJ10
- grade
- 130G
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- From
- 11.2010
- To
- 03.2016
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[08.2012 - 09.2012] 1NRFE..NGJ10..6F ＧＡＺＯＯ ＲＡＣＩＮＧ |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2012 - 09.2012] 1NRFE..NGJ10..6F ＧＡＺＯＯ ＲＡＣＩＮＧ |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-47020 Relay Assy, StarterSTARTER [11.2010 -] 1NRFE..NGJ10..6F |
28300-47020 |
US $39.60 |
||
|
28850
|
28850
28850-40010 Sensor Assy, Battery Current[11.2008 -] 1KRFE,1NRFE..KGJ10,NGJ10 |
28850-40010 |
US $81.40 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[11.2008 -] KGJ10,NGJ10 ４０Ａ，メス端子 |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[11.2008 -] KGJ10,NGJ10 ３０Ａ，メス端子,エンジンル−ム Ｒ／Ｂ |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[08.2009 -] NGJ10 ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[11.2008 -] KGJ10,NGJ10 ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[11.2008 -] KGJ10,NGJ10 ５０Ａ−３０Ａ−５０Ａ，メス端子 |
90982-08302 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[11.2008 -] KGJ10,NGJ10 ３０Ａ，メス端子,インストルメントパネルＪ／Ｂ |
90982-08306 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2008 -] KGJ10,NGJ10 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2008 -] KGJ10,NGJ10 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[09.2010 -] KGJ10,NGJ10 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-52070 Block Assy, Fusible LinkFUSIBLE LINK [09.2010 -] KGJ10,NGJ10 |
82620-52070 |
from US $9.60 |
||
|
82621A
|
82621A
82621-74010 Cover, Fusible LinkFUSIBLE LINK [11.2008 -] KGJ10,NGJ10 |
82621-74010 |
US $11.36 |
||
|
82630
|
82630
82631-74010 Holder Assy, FuseFUSE [11.2008 -] KGJ10,NGJ10 |
82631-74010 |
US $32.76 |
||
|
82630C
|
82630C
82631-74020 Holder Assy, FuseFUSE [11.2008 -] KGJ10,NGJ10 |
82631-74020 |
US $23.88 |
||
|
82630D
|
82630D
82631-74030 Holder, FuseFUSE [11.2008 -] KGJ10,NGJ10 寒冷地仕様; KGJ10,NGJ10 寒冷地仕様＆ヘッドランプ−ディスチャージ（スモーク）; KGJ10,NGJ10 ヘッドランプ−ディスチャージ（スモーク） |
82631-74030 |
US $19.66 |
||
|
82641
|
82641
82641-74010 Relay, Integration No.1INTEGRATION NO.1 [11.2008 -] KGJ10,NGJ10 |
82641-74010 |
US $92.60 |
||
|
82662A
|
82662A
82662-74011 Cover, Relay Block, Upper, No.1[09.2010 -] KGJ10,NGJ10 |
82662-74011 |
US $20.53 |
||
|
82662A
|
82662A
82662-74021 Cover, Relay Block, Upper, No.1[09.2010 -] KGJ10,NGJ10 ヘッドランプ−ディスチャージ（スモーク） |
82662-74021 |
US $20.53 |
||
|
82662B
|
82662B
82662-74100 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [08.2009 -] NGJ10 寒冷地仕様; NGJ10 寒冷地仕様＆ヘッドランプ−ディスチャージ（スモーク）; NGJ10 ヘッドランプ−ディスチャージ（スモーク） |
82662-74100 |
US $17.91 |
||
|
82663
|
82663
82663-74010 Cover, Relay Block, LowerRELAY BLOCK, LOWER [11.2008 -] KGJ10,NGJ10 |
82663-74010 |
US $28.83 |
||
|
82663A
|
82663A
82663-74020 Cover, Relay Block, Lower, No.2RELAY BLOCK, LOWER, NO.2 [11.2008 -] KGJ10,NGJ10 寒冷地仕様; KGJ10,NGJ10 寒冷地仕様＆ヘッドランプ−ディスチャージ（スモーク）; KGJ10,NGJ10 ヘッドランプ−ディスチャージ（スモーク） |
82663-74020 |
US $19.07 |
||
|
82741
|
82741
82741-74010 Block, Engine Room RelayENGINE ROOM RELAY [11.2008 -] KGJ10,NGJ10 |
82741-74010 |
US $59.23 |
||
|
82741B
|
82741B
82741-74020 Block, Engine Room RelayENGINE ROOM RELAY [11.2008 -] KGJ10,NGJ10 寒冷地仕様; KGJ10,NGJ10 寒冷地仕様＆ヘッドランプ−ディスチャージ（スモーク）; KGJ10,NGJ10 ヘッドランプ−ディスチャージ（スモーク） |
82741-74020 |
US $42.95 |
||
|
82817H
|
82817H
82817-74080 Protector, Wiring HarnessWIRING HARNESS [11.2008 -] KGJ10,NGJ10 |
82817-74080 |
US $3.06 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[09.2010 -] KGJ10,NGJ10 |
82824-41010 |
from US $3.24 |
||
|
84794A
|
84794A
90987-02027 Relay[11.2008 -] KGJ10,NGJ10 寒冷地仕様 |
90987-02027 |
from US $31.43 |
||
|
85912
|
85912
90987-02027 Relay[11.2008 -] KGJ10,NGJ10; KGJ10..100X フロントエアコン−オート; KGJ10,NGJ10..CVFC..(100G,130G) “→（ゴー）”; KGJ10,NGJ10..CVFC..(100G,130G) フロントエアコン−マニュアル |
90987-02027 |
from US $31.43 |
||
|
85916P
|
85916P
90987-02025 Relay[11.2008 -] NGJ10..6F ヘッドランプ−ディスチャージ（スモーク） |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02027 Relay[11.2008 -] KGJ10,NGJ10 |
90987-02027 |
from US $31.43 |
||
|
85927
|
85927
90987-02027 Relay[11.2008 -] KGJ10,NGJ10 |
90987-02027 |
from US $31.43 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[11.2008 -] KGJ10,NGJ10 |
90987-04004 |
from US $42.71 |
||
|
85928B
|
85928B
85928-74010 Resistor, Cooling FanCOOLING FAN [11.2008 - 08.2012] KGJ10,NGJ10 |
85928-74010 |
US $69.60 |
||
| replacement | |||||
|
85928B
|
85928B
85928-74011 Resistor, Cooling Fan[11.2008 - 08.2012] KGJ10,NGJ10 |
85928-74011 |
US $67.62 |
||
|
85928B
|
85928B
85928-74011 Resistor, Cooling Fan[09.2012 -] KGJ10,NGJ10 |
85928-74011 |
US $67.62 |
||
|
87346K
|
87346K
90987-02027 Relay[08.2009 -] NGJ10 寒冷地仕様 |
90987-02027 |
from US $31.43 |
||
|
87346L
|
87346L
90987-02025 Relay[08.2009 -] NGJ10 寒冷地仕様 |
90987-02025 |
from US $44.54 |
||
|
89420F
|
89420F
89421-26030 Sensor Assy, Vacuum[11.2010 - 03.2016] NGJ10..6F |
89421-26030 |
from US $87.32 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.66 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9415120600
|
9415120600
94151-20600 New Genuine Part |
94151-20600 |
US $1.44 |
||
