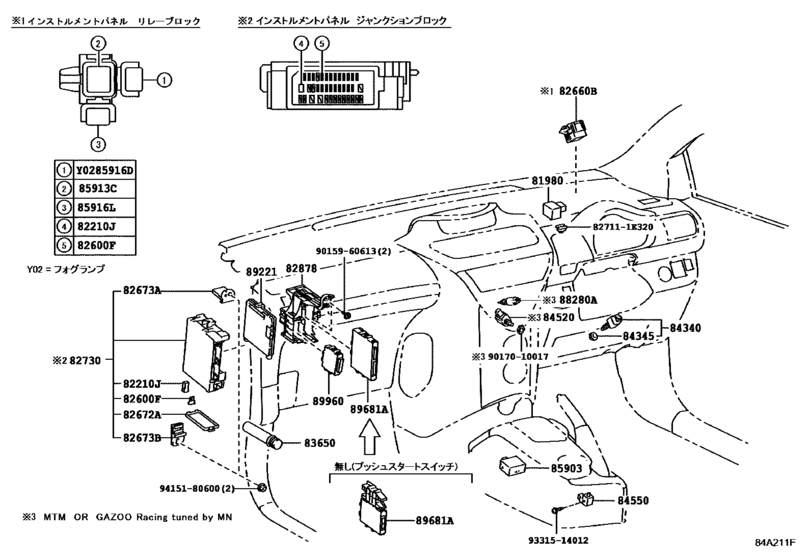

Switch & Relay & Computer ([11.2008 - ] ｶｳﾙ (0811- )) Diagram Toyota IQ
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGJ10
- grade
- 130G
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- From
- 11.2010
- To
- 03.2016
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[11.2008 -] KGJ10,NGJ10 |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[11.2008 -] KGJ10,NGJ10 ４０Ａ，メス端子 |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[11.2008 -] KGJ10,NGJ10 ３０Ａ，メス端子,エンジンル−ム Ｒ／Ｂ |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[08.2009 -] NGJ10 ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[11.2008 -] KGJ10,NGJ10 ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[11.2008 -] KGJ10,NGJ10 ５０Ａ−３０Ａ−５０Ａ，メス端子 |
90982-08302 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[11.2008 -] KGJ10,NGJ10 ３０Ａ，メス端子,インストルメントパネルＪ／Ｂ |
90982-08306 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2008 -] KGJ10,NGJ10 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2008 -] KGJ10,NGJ10 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2008 -] KGJ10,NGJ10 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82660B
|
82660B
82660-74010 Block Assy, RelayRELAY [11.2008 -] KGJ10,NGJ10 |
82660-74010 |
US $17.78 |
||
|
82672A
|
82672A
82672-74010 Cover, Junction BlockJUNCTION BLOCK [11.2008 -] KGJ10,NGJ10 |
82672-74010 |
US $3.93 |
||
|
82672A
|
82672A
82672-74020 Cover, Junction BlockJUNCTION BLOCK [11.2008 -] KGJ10,NGJ10 ヘッドランプ−ディスチャージ（スモーク）; KGJ10,NGJ10 ヘッドランプ−ディスチャージ（スモーク）＆リヤフォグランプ−有り |
82672-74020 |
US $3.93 |
||
|
82673A
|
82673A
82673-74010 Bracket, Junction BlockJUNCTION BLOCK [11.2008 -] KGJ10,NGJ10 |
82673-74010 |
US $5.97 |
||
|
82673B
|
82673B
82673-74020 Bracket, Junction BlockJUNCTION BLOCK [11.2008 -] KGJ10,NGJ10 |
82673-74020 |
US $5.10 |
||
|
82730
|
82730
82730-74010 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [11.2008 -] KGJ10,NGJ10 |
82730-74010 |
US $195.10 |
||
|
82730
|
82730
82730-74020 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [11.2008 -] KGJ10,NGJ10 リヤフォグランプ−有り |
82730-74020 |
US $195.10 |
||
|
82730
|
82730
82730-74040 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [08.2012 - 09.2012] NGJ10..6F ＧＡＺＯＯ ＲＡＣＩＮＧ |
82730-74040 |
US $195.10 |
||
|
82730
|
82730
82730-74060 Block Assy, Instrument Panel Junction[11.2010 -] NGJ10..6F ヘッドランプ−ディスチャージ（スモーク）; NGJ10..6F ヘッドランプ−ディスチャージ（スモーク）＆リヤフォグランプ−有り |
82730-74060 |
US $182 |
||
|
82878
|
82878
82878-74010 Box, Computer Integration, LhCOMPUTER INTEGRATION, LH [11.2008 -] KGJ10,NGJ10 |
82878-74010 |
US $51.11 |
||
|
83650
|
83650
90986-01005
Fusee
[11.2008 -] KGJ10,NGJ10 |
90986-01005 |
— | ||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[11.2008 -] KGJ10,NGJ10 |
84340-69075 |
from US $36.23 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2008 -] KGJ10,NGJ10 |
84345-51010 |
from US $3.52 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[11.2010 - 03.2016] NGJ10..6F |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[11.2008 - 03.2016] KGJ10,NGJ10 |
84550-16060 |
from US $17.48 |
||
|
85913C
|
85913C
90987-02025 Relay[11.2008 -] NGJ10..6F;KGJ10..100X; KGJ10..100X フロントエアコン−オート |
90987-02025 |
from US $44.54 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2010 -] NGJ10..6F |
90987-02027 |
from US $31.43 |
||
|
88280A
|
88280A
88280-42010 Switch Assy, ClutchCLUTCH [11.2010 - 03.2016] NGJ10..6F |
88280-42010 |
from US $15.52 |
||
|
89221
|
89221
89220-74140 Computer, Multiplex Network BodyMULTIPLEX NETWORK BODY [11.2008 -] NGJ10..6F;KGJ10..100X |
89220-74140 |
US $206.75 |
||
|
89221
|
89221
89220-74160 Computer, Multiplex Network BodyMULTIPLEX NETWORK BODY [05.2009 -] NGJ10..6F;KGJ10..100X ヘッドランプ−ディスチャージ（スモーク） |
89220-74160 |
US $206.75 |
||
|
89681A
|
89681A
89690-74030 Computer, Power Management ControlPOWER MANAGEMENT CONTROL [11.2010 -] NGJ10..6F |
89690-74030 |
US $264.99 |
||
|
89960
|
89960
89960-74010 Computer Assy, Headlamp LevelingHEADLAMP LEVELING [11.2008 -] KGJ10,NGJ10 ヘッドランプ−ディスチャージ（スモーク） |
89960-74010 |
US $298.48 |
||
|
89960
|
89960
89960-74030 Computer Assy, Headlamp Leveling[08.2012 - 09.2012] NGJ10..6F ＧＡＺＯＯ ＲＡＣＩＮＧ |
89960-74030 |
US $716.35 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $0.96 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
