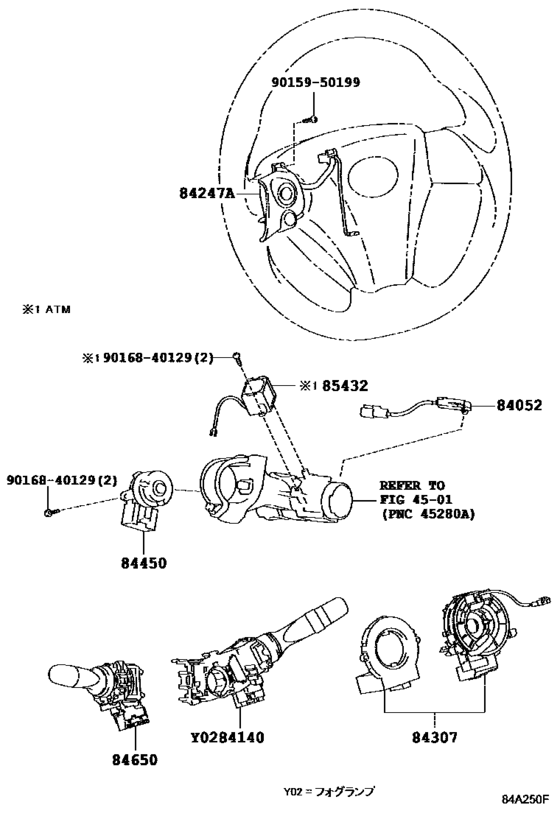

Switch & Relay & Computer ([11.2008 - ] ｽﾃｱﾘﾝｸﾞ (0811- )) Diagram Toyota IQ
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGJ10
- grade
- 130G
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- From
- 11.2010
- To
- 03.2016
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-60020 Switch Assy, Un-Lock Warning[11.2008 - 03.2016] NGJ10..6F;KGJ10..100X; KGJ10..100X フロントエアコン−オート |
84052-60020 |
US $16.02 |
||
| replacement | |||||
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[11.2008 - 03.2016] NGJ10..6F;KGJ10..100X; KGJ10..100X フロントエアコン−オート |
84052-22050 |
from US $14.26 |
||
|
84140
|
84140
84140-12570 Switch Assy, Headlamp Dimmer[08.2012 - 09.2012] NGJ10..6F ＧＡＺＯＯ ＲＡＣＩＮＧ |
84140-12570 |
US $133.20 |
||
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[11.2010 -] NGJ10..6F ヘッドランプ−ディスチャージ（スモーク） |
84140-42070 |
US $103.60 |
||
|
84140
|
84140
84140-42080 Switch Assy, Headlamp Dimmer[11.2010 -] NGJ10..6F ヘッドランプ−ディスチャージ（スモーク）＆リヤフォグランプ−有り |
84140-42080 |
US $103.60 |
||
|
84140
|
84140
84140-52100 Switch Assy, Headlamp Dimmer[11.2010 -] NGJ10..6F |
84140-52100 |
US $103.60 |
||
|
84140
|
84140
84140-52120 Switch Assy, Headlamp Dimmer[11.2010 -] NGJ10..6F リヤフォグランプ−有り |
84140-52120 |
US $96.27 |
||
|
84247A
|
84247A
84247-74010-C1 Switch, Steering Pad, Lh[08.2009 - 03.2016] NGJ10 BLACK,TRIM1#,4#,7#,8# |
84247-74010-C1 |
US $115.02 |
||
|
84307
|
84307
84307-74020
Cable Sub-Assy, Spiral
[11.2008 -] KGJ10,NGJ10 |
84307-74020 |
— | ||
| replacement | |||||
|
84307
|
84307
8430774021 Cable Sub-Assy, Spiral W/Sensor[11.2008 -] KGJ10,NGJ10 |
8430774021 |
US $462 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[11.2008 - 03.2016] NGJ10..6F;KGJ10..100X; KGJ10..100X フロントエアコン−オート |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-52190 Switch Assy, Windshield Wiper[11.2008 - 03.2015] KGJ10,NGJ10 |
84652-52190 |
US $82.99 |
||
| replacement | |||||
|
84650
|
84650
84652-52191 Switch Assy, Windshield Wiper[11.2008 - 03.2015] KGJ10,NGJ10 |
84652-52191 |
US $111 |
||
|
84650
|
84650
84652-52191 Switch Assy, Windshield Wiper[04.2015 -] KGJ10,NGJ10 |
84652-52191 |
US $111 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
