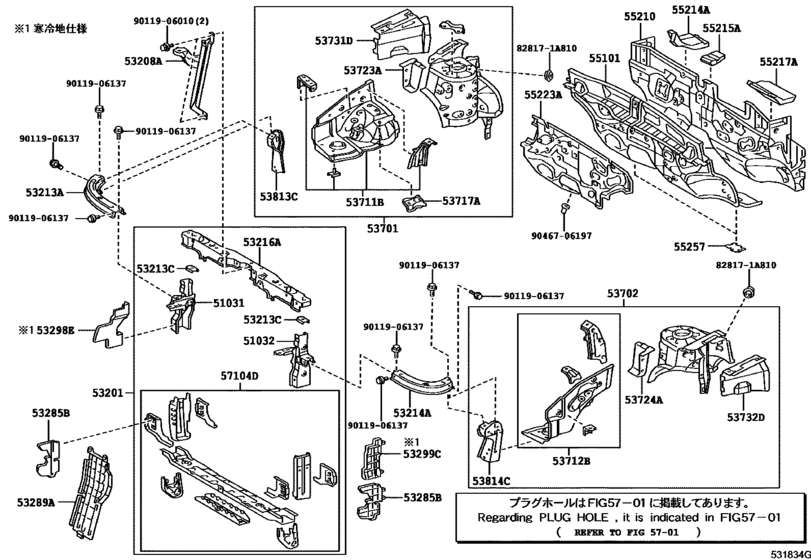

Front Fender Apron & Dash Panel ([09.2004 - ] (0409- )) Diagram Toyota ISIS
- Year
- 2004 - 2009
- Sales region
- Japan
- Frame
- ANM10
- grade
- L
- ENGINE
- 1AZFSE
- From
- 09.2004
- To
- 09.2009
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51031
|
51031
51031-44010 Gusset Sub-Assy, Front Crossmember, Rh[09.2004 - 09.2006] ANM1#,ZNM10 |
51031-44010 |
US $24.75 |
||
|
51032
|
51032
51032-44010 Gusset Sub-Assy, Front Crossmember, Lh[09.2004 - 09.2006] ANM1#,ZNM10 |
51032-44010 |
US $24.75 |
||
|
53201
|
53201
53201-44130 Support Sub-Assy, Radiator[09.2004 - 09.2006] ANM1#,ZNM10 |
53201-44130 |
US $458.64 |
||
| replacement | |||||
|
53201
|
53201
53201-44131 Support Sub-Assy, Radiator[09.2004 - 09.2006] ANM1#,ZNM10 |
53201-44131 |
from US $467.60 |
||
|
53201
|
53201
53201-44131 Support Sub-Assy, Radiator[10.2006 - 09.2009] ANM1#,ZNM10 |
53201-44131 |
from US $467.60 |
||
|
53208A
|
53208A
53208-44030 Support Sub-Assy, Hood Lock[09.2004 - 05.2007] ANM1#,ZNM10 |
53208-44030 |
US $42.64 |
||
|
53208A
|
53208A
53208-44031 Support Sub-Assy, Hood Lock[05.2007 - 09.2009] ANM1#,ZNM10 |
53208-44031 |
US $44.23 |
||
|
53213A
|
53213A
53213-44020 Support, Radiator, Upper Rh[09.2004 - 09.2009] ANM1#,ZNM10 |
53213-44020 |
US $37.70 |
||
|
53213C
|
53213C
53213-12110 Support, Radiator, Upper Front[09.2004 - 09.2009] ANM1#,ZNM10 |
53213-12110 |
US $15.04 |
||
|
53214A
|
53214A
53214-44020 Support, Radiator, Upper Lh[09.2004 - 09.2009] ANM1#,ZNM10 |
53214-44020 |
US $37.70 |
||
|
53216A
|
53216A
53216-44040 Support, Radiator, Upper[09.2004 - 09.2009] ANM1#,ZNM10 |
53216-44040 |
US $84.36 |
||
|
53285B
|
53285B
53285-44030 Seal, Radiator Side Air, No.1[09.2004 - 09.2009] ANM1#,ZNM10 |
53285-44030 |
US $14.56 |
||
|
53289A
|
53289A
53289-44010 Cover, Radiator Support Opening[09.2004 - 09.2009] ANM1#,ZNM10 |
53289-44010 |
US $36.78 |
||
|
53298E
|
53298E
53298-44040 Seal, Radiator Side, Rh[09.2004 - 09.2009] ANM1#,ZNM10 寒冷地仕様 |
53298-44040 |
US $14.24 |
||
|
53299C
|
53299C
53299-44020 Seal, Radiator Side, Lh[09.2004 - 09.2009] ANM1#,ZNM10 寒冷地仕様 |
53299-44020 |
US $11.28 |
||
|
53701
|
53701
53701-44060 Apron Sub-Assy, Front Fender, Rh[09.2004 - 09.2009] ANM1#,ZNM10 |
53701-44060 |
US $294.11 |
||
|
53702
|
53702
53702-44060 Apron Sub-Assy, Front Fender, Lh[09.2004 - 09.2009] ANM1#,ZNM10 |
53702-44060 |
US $221.31 |
||
|
53711B
|
53711B
53711-44902 Apron, Front Fender, Front Rh[09.2004 - 09.2009] ANM1#,ZNM10 |
53711-44902 |
US $103.81 |
||
|
53712B
|
53712B
53712-44901 Apron, Front Fender, Front Lh[09.2004 - 09.2009] ANM1#,ZNM10 |
53712-44901 |
US $54.75 |
||
|
53717A
|
53717A
53717-12060 Plate, Fender Apron[09.2004 - 09.2009] ANM1#,ZNM10 |
53717-12060 |
US $8.88 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[09.2004 - 09.2009] ANM1#,ZNM10 |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[09.2004 - 09.2009] ANM1#,ZNM10 |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[09.2004 - 09.2009] ANM1#,ZNM10 |
53731-12160 |
from US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[09.2004 - 09.2009] ANM1#,ZNM10 |
53732-12140 |
US $20.09 |
||
|
53813C
|
53813C
53813-44030 Extension, Front Fender, Rh[09.2004 - 09.2009] ANM1#,ZNM10 |
53813-44030 |
US $25.23 |
||
|
53814C
|
53814C
53814-44030 Extension, Front Fender, Lh[09.2004 - 09.2009] ANM1#,ZNM10 |
53814-44030 |
US $26.14 |
||
|
55101
|
55101
55101-44390 Panel Sub-Assy, Dash[09.2004 - 09.2009] ANM10 |
55101-44390 |
US $497.95 |
||
|
55210
|
55210
55210-44080 Insulator Assy, Dash Panel[09.2004 - 07.2006] ANM1#,ZNM10 |
55210-44080 |
US $180.54 |
||
| replacement | |||||
|
55210
|
55210
55210-44082 Insulator Assy, Dash Panel[09.2004 - 07.2006] ANM1#,ZNM10 |
55210-44082 |
US $112.11 |
||
|
55210
|
55210
55210-44081 Insulator Assy, Dash Panel[08.2006 - 07.2009] ANM1#,ZNM10 |
55210-44081 |
US $148.51 |
||
| replacement | |||||
|
55210
|
55210
55210-44082 Insulator Assy, Dash Panel[08.2006 - 07.2009] ANM1#,ZNM10 |
55210-44082 |
US $112.11 |
||
|
55210
|
55210
55210-44082 Insulator Assy, Dash Panel[08.2009 - 09.2009] ANM1#,ZNM10 |
55210-44082 |
US $112.11 |
||
|
55214A
|
55214A
55214-44010 Pad, Dash Panel Insulator, No.2[09.2004 - 09.2009] ANM1#,ZNM10 |
55214-44010 |
US $14.56 |
||
|
55215A
|
55215A
55215-44010 Pad, Dash Panel Insulator, No.3[09.2004 - 03.2009] ANM10,ZNM10 |
55215-44010 |
US $14.56 |
||
| replacement | |||||
|
55215A
|
55215A
55215-44011 Pad, Dash Panel Insulator, No.3[09.2004 - 03.2009] ANM10,ZNM10 |
55215-44011 |
US $9.03 |
||
|
55215A
|
55215A
55215-44011 Pad, Dash Panel Insulator, No.3[04.2009 - 09.2009] ANM10,ZNM10 |
55215-44011 |
US $9.03 |
||
|
55217A
|
55217A
55217-44010 Retainer, Dash Panel Silencer[09.2004 - 09.2009] ANM1#,ZNM10 |
55217-44010 |
US $44.55 |
||
|
55223A
|
55223A
55223-44060 Insulator, Dash Panel, Outer[09.2004 - 02.2009] ANM1#,ZNM10 |
55223-44060 |
US $78.62 |
||
| replacement | |||||
|
55223A
|
55223A
55223-44061 Insulator, Dash Panel, Outer[09.2004 - 02.2009] ANM1#,ZNM10 |
55223-44061 |
US $48.92 |
||
|
55223A
|
55223A
55223-44061 Insulator, Dash Panel, Outer[03.2009 - 09.2009] ANM1#,ZNM10 |
55223-44061 |
US $48.92 |
||
|
55257
|
55257
55257-13010 Cover, Dash Panel Opening[09.2004 - 09.2009] ANM1#,ZNM10 |
55257-13010 |
US $2.91 |
||
|
57104D
|
57104D
57104-44050 Member Sub-Assy, Front Cross[09.2004 - 09.2006] ANM1#,ZNM10 |
57104-44050 |
US $362.54 |
||
| replacement | |||||
|
57104D
|
57104D
57104-44051 Member Sub-Assy, Front Cross[09.2004 - 09.2006] ANM1#,ZNM10 |
57104-44051 |
US $299.94 |
||
|
57104D
|
57104D
57104-44051 Member Sub-Assy, Front Cross[10.2006 - 09.2009] ANM1#,ZNM10 |
57104-44051 |
US $299.94 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.72 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
US $1.92 |
||
