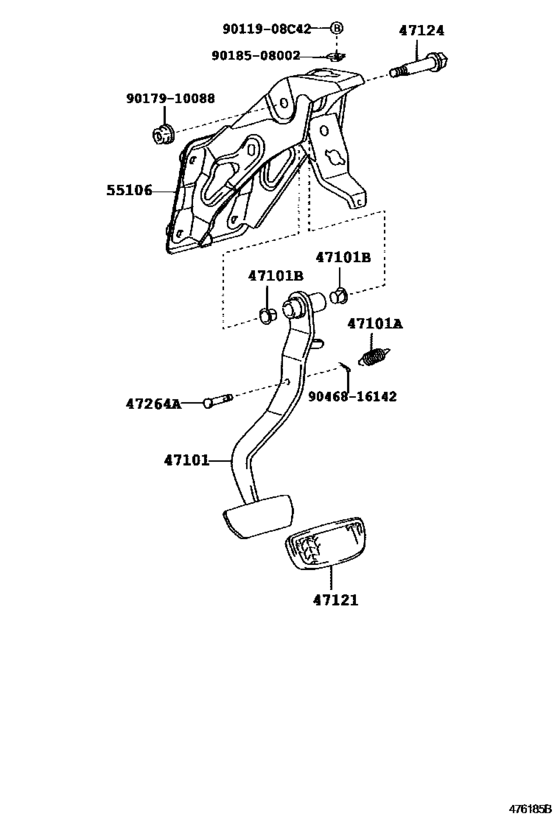

Brake Pedal & Bracket ([09.2004 - ] (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-68010 Pedal Sub-Assy, Brake[09.2009 -] ZGM1# |
47101-68010 |
US $23.59 |
||
|
47101A
|
47101A
90507-15005 Spring(For Brake Pedal Return)[09.2009 -] ZGM1# |
90507-15005 |
US $2.62 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[09.2009 -] ZGM1# |
90386-13015 |
from US $0.64 |
||
|
47121
|
47121
47121-52010 Pad, Brake Pedal[09.2009 -] ZGM1# |
47121-52010 |
from US $3.39 |
||
|
47124
|
47124
90109-10174 Shaft, Clutch Pedal[09.2009 -] ZGM1# |
90109-10174 |
US $2.48 |
||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[09.2009 -] ZGM1# |
90249-08051 |
US $3.05 |
||
|
55106
|
55106
55106-68010 Support Sub-Assy, Brake Pedal[09.2009 -] ZGM1# |
55106-68010 |
US $28.54 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.43 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9018508002
|
9018508002
90185-08002 New Genuine Part |
90185-08002 |
US $2.62 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
