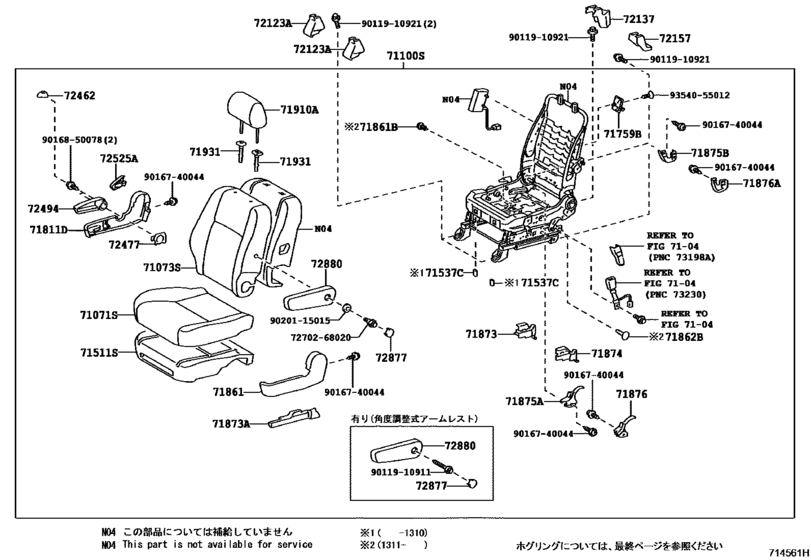

Front Seat & Seat Track ([09.2004 - ] ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞｯｸﾞ),RH ｼｰﾄ (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-44C80-E0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM11,15..G GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）,GREGE,TRIM4# |
71071-44C80-E0 |
US $318.86 |
||
| replacement | |||||
|
71071S
|
71071S
71071-44D00-E0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM11,15..G GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）,GREGE,TRIM4# |
71071-44D00-E0 |
US $318.86 |
||
|
71071S
|
71071S
71071-44D00-E0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM11,15..G ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド＆カーテンシールド）,GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド ＆カーテンシールド）,GREGE,TRIM4# |
71071-44D00-E0 |
US $318.86 |
||
|
71071S
|
71071S
71071-44D10-E0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM1#..L GREGE,TRIM4# |
71071-44D10-E0 |
US $304.30 |
||
| replacement | |||||
|
71071S
|
71071S
71071-44D20-E0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM1#..L GREGE,TRIM4# |
71071-44D20-E0 |
US $304.30 |
||
|
71071S
|
71071S
71071-44D20-E0 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM10..L Ｘ−ＳＥＬＥＣＴＩＯＮ ＊（Ｘ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド＆ カーテンシールド）,GREGE,TRIM4#; ZGM1#..L ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド＆カーテンシールド）,GREGE,TRIM4# |
71071-44D20-E0 |
US $304.30 |
||
|
71073S
|
71073S
71073-44F30-E0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM11,15..G GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）,GREGE,TRIM4# |
71073-44F30-E0 |
US $457.18 |
||
|
71073S
|
71073S
71073-44F50-E0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM11,15..G ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド＆カーテンシールド）,GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド ＆カーテンシールド）,GREGE,TRIM4# |
71073-44F50-E0 |
US $457.18 |
||
|
71073S
|
71073S
71073-44F60-E0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM1#..L GREGE,TRIM4# |
71073-44F60-E0 |
US $436.80 |
||
|
71073S
|
71073S
71073-44F80-E0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [09.2009 - 06.2011] ZGM1#..L ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド＆カーテンシールド）,GREGE,TRIM4# |
71073-44F80-E0 |
US $436.80 |
||
|
71100S
|
71100S
71100-44F70-E0
Seat Assy, Front Rh
[09.2009 - 06.2011] ZGM11..G ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド＆カーテンシールド）,GREGE,TRIM4#; ZGM10,11..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド ＆カーテンシールド）,GREGE,TRIM4# |
71100-44F70-E0 |
— | ||
|
71100S
|
71100S
71100-44G10-E0
Seat Assy, Front Rh
[09.2009 - 06.2011] ZGM10,11..L ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド＆カーテンシールド）,GREGE,TRIM4# |
71100-44G10-E0 |
— | ||
|
71511S
|
71511S
71511-44050 Pad, Front Seat Cushion, Rh(For Separate Type)[09.2009 -] ZGM1# |
71511-44050 |
US $135.41 |
||
|
71537C
|
71537C
71537-26010 Protector, Front Seat Cushion[09.2009 - 10.2013] ZGM1# |
71537-26010 |
US $1.08 |
||
|
71759B
|
71759B
71759-28050-E0 Hook, Front Seat Back[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
71759-28050-E0 |
US $9.46 |
||
|
71811D
|
71811D
71811-44200-E1 Shield, Front Seat Cushion, Rh[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
71811-44200-E1 |
US $36.55 |
||
|
71861
|
71861
71861-68020-E1 Shield, Front Seat Cushion, Inner Rh[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
71861-68020-E1 |
US $33.05 |
||
|
71873
|
71873
71873-52040-E1 Shield, Front Seat Cushion, Lower Rh[09.2009 - 11.2013] ZGM1#..G,L GREGE,TRIM4# |
71873-52040-E1 |
US $8.74 |
||
| replacements | |||||
|
71873
|
71873
71873-52041-E1 Shield, Front Seat Cushion, Lower Rh[09.2009 - 11.2013] ZGM1#..G,L GREGE,TRIM4# |
71873-52041-E1 |
US $7.86 |
||
|
71873
|
71873
90467-07191-E2 Clip(For Rear Seat)[09.2009 - 11.2013] ZGM1#..G,L GREGE,TRIM4# |
90467-07191-E2 |
US $1.02 |
||
|
71873A
|
71873A
71873-44030-E1 Shield, Front Seat Cushion, Lower[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
71873-44030-E1 |
US $15.87 |
||
|
71874
|
71874
71874-52050-E1 Shield, Front Seat Cushion, Lower Lh[09.2009 - 11.2013] ZGM1#..G,L GREGE,TRIM4# |
71874-52050-E1 |
US $8.74 |
||
| replacements | |||||
|
71874
|
71874
71874-52051-E1 Shield, Front Seat Cushion, Lower Lh[09.2009 - 11.2013] ZGM1#..G,L GREGE,TRIM4# |
71874-52051-E1 |
US $7.86 |
||
|
71874
|
71874
90467-07191-E2 Clip(For Rear Seat)[09.2009 - 11.2013] ZGM1#..G,L GREGE,TRIM4# |
90467-07191-E2 |
US $1.02 |
||
|
71875A
|
71875A
71875-52030-E2 Cover, Reclining Adjuster Inside, Rh[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
71875-52030-E2 |
US $5.24 |
||
|
71875B
|
71875B
71875-58060 Cover, Reclining Adjuster Inside, Rh[09.2009 -] ZGM1# |
71875-58060 |
US $8.88 |
||
|
71876
|
71876
71876-52030-E3 Cover, Reclining Adjuster Inside, Lh[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
71876-52030-E3 |
US $5.24 |
||
|
71876A
|
71876A
71876-58060 Cover, Reclining Adjuster Inside, Rh[09.2009 -] ZGM1# |
71876-58060 |
US $8.88 |
||
|
71910A
|
71910A
71910-44520-E0 Headrest Assy, Front Seat[09.2009 - 06.2011] ZGM1#..L GREGE,TRIM4# |
71910-44520-E0 |
US $308.67 |
||
|
71910A
|
71910A
71910-44530-E0 Headrest Assy, Front Seat[09.2009 - 06.2011] ZGM11,15..G GREGE,TRIM4#,運転席; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）,GREGE,TRIM4#,運転席; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド ＆カーテンシールド）,GREGE,TRIM4#,運転席 |
71910-44530-E0 |
US $343.62 |
||
|
71910A
|
71910A
71910-44540-E0 Headrest Assy, Front Seat[09.2009 - 06.2011] ZGM11,15..G GREGE,TRIM4#,助手席; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）,GREGE,TRIM4#,助手席; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド ＆カーテンシールド）,GREGE,TRIM4#,助手席 |
71910-44540-E0 |
US $308.67 |
||
|
71931
|
71931
71930-44020-E0 Support, Front Seat Headrest[09.2009 -] ZGM1#..G,L ロック付,GREGE,TRIM4# |
71930-44020-E0 |
US $10.48 |
||
|
71931
|
71931
71931-47010-E4 Support, Front Seat Headrest[09.2009 -] ZGM1#..G,L ロック無,GREGE,TRIM4# |
71931-47010-E4 |
US $6.41 |
||
|
72123A
|
72123A
72123-44040-E1 Cover, Seat Track Bracket, Outer Front Rh[09.2009 -] ZGM1# GREGE,TRIM4# |
72123-44040-E1 |
US $7.86 |
||
|
72137
|
72137
72137-44071-E1 Cover, Seat Track, Outer Rh[09.2009 -] ZGM1# GREGE,TRIM4# |
72137-44071-E1 |
US $14.85 |
||
|
72157
|
72157
72157-44020-E1 Cover, Seat Track Bracket, Inner[09.2009 -] ZGM10,11 GREGE,TRIM4# |
72157-44020-E1 |
US $11.50 |
||
|
72462
|
72462
72462-60010-E2 Cover, Vertical Adjuster Rh[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
72462-60010-E2 |
US $10.05 |
||
|
72477
|
72477
72477-52010-C0 Spacer, Vertical Adjuster[09.2009 -] ZGM1# BLACK |
72477-52010-C0 |
US $5.53 |
||
|
72494
|
72494
72494-60020-E2 Handle, Vertical Adjusting, Rh[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
72494-60020-E2 |
US $33.92 |
||
|
72525A
|
72525A
72525-58030-E3 Handle, Reclining Adjuster Release, Rh[09.2009 -] ZGM1#..G,L GREGE,TRIM4# |
72525-58030-E3 |
US $12.23 |
||
|
72877
|
72877
71877-26020-E2 Cover, Rear Seat Armrest Hole Rh[09.2009 -] ZGM1#..L GREGE,TRIM4# |
71877-26020-E2 |
US $5.53 |
||
|
72877
|
72877
72848-28030-E1 Cover, Rear Seat Armrest Hole Rh[09.2009 - 06.2011] ZGM1#..PLTNA GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）,GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド ＆カーテンシールド）,GREGE,TRIM4# |
72848-28030-E1 |
US $3.72 |
||
|
72880
|
72880
72880-44390-E0 Armrest Assy, Seat, C Rh[09.2009 - 06.2011] ZGM11,15..G GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）,GREGE,TRIM4#; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆ＳＲＳエアバッグ−有り（運転席＆助手席＆サイド ＆カーテンシールド）,GREGE,TRIM4# |
72880-44390-E0 |
US $302.85 |
||
|
72880
|
72880
72880-44400-E0 Armrest Assy, Seat, C RhSEAT, C RH [09.2009 - 06.2011] ZGM1#..L GREGE,TRIM4# |
72880-44400-E0 |
US $170.35 |
||
|
7270268020
|
7270268020
72702-68020 Bracket Sub-assy, Rear Seat Back Striker |
72702-68020 |
US $3.23 |
||
|
9011910911
|
9011910911
90119-10911 New Genuine Part |
90119-10911 |
US $2.04 |
||
|
9011910921
|
9011910921
90119-10921 BOLT WWASHER |
90119-10921 |
from US $0.92 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9016850078
|
9016850078
90168-50078 SCREW TAPPING |
90168-50078 |
US $1.25 |
||
|
9020115015
|
9020115015
90201-15015 New Genuine Part |
90201-15015 |
US $2.87 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
||
