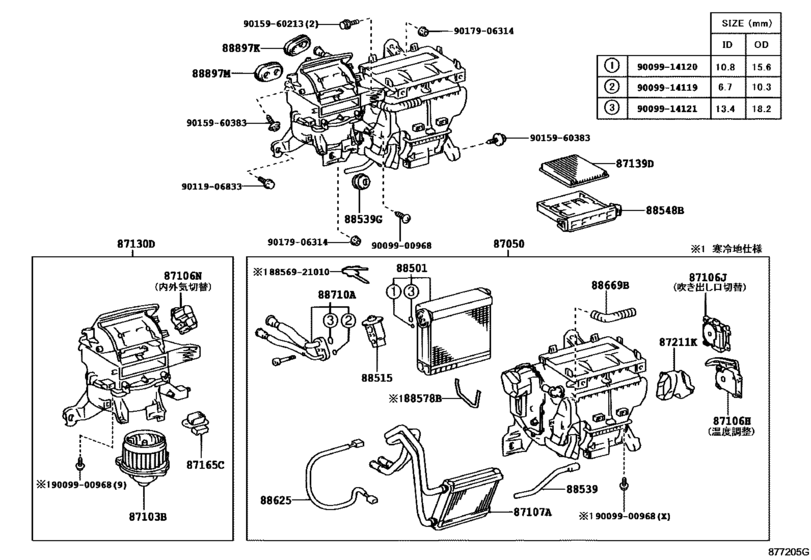

Heating & Air Conditioning - Cooler Unit ([09.2004 - ] ﾌﾛﾝﾄ (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-44400 Radiator Assy, Air Conditioner[09.2009 -] ZGM1# |
87050-44400 |
US $888.16 |
||
|
87050
|
87050
87050-44480 Radiator Assy, Air Conditioner[09.2009 -] ZGM1# 寒冷地仕様 |
87050-44480 |
US $902.72 |
||
|
87103B
|
87103B
87103-44080
Motor Sub-Assy, Blower W/fan
[09.2009 - 12.2010] ZGM1# |
87103-44080 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-44081
Motor Sub-Assy, Blower W/fan
[09.2009 - 12.2010] ZGM1# |
87103-44081 |
— | ||
|
87103B
|
87103B
87103-44081
Motor Sub-Assy, Blower W/fan
[01.2011 -] ZGM1# |
87103-44081 |
— | ||
|
87106H
|
87106H
87106-12130 Servo Sub-Assy, Damper(For Airmix)[09.2009 -] ZGM1# |
87106-12130 |
US $153.75 |
||
|
87106J
|
87106J
87106-13030
Servo Sub-Assy, Damper(For Mode)
[09.2009 -] ZGM1# |
87106-13030 |
— | ||
|
87106N
|
87106N
87106-12150
Servo Sub-Assy, Damper(For Recirculation)
[09.2009 -] ZGM1# |
87106-12150 |
— | ||
|
87107A
|
87107A
87107-21010
Unit Sub-Assy, Heater Radiator
[09.2009 -] ZGM1# |
87107-21010 |
— | ||
|
87107A
|
87107A
87107-44150
Unit Sub-Assy, Heater Radiator
[09.2009 -] ZGM1# 寒冷地仕様 |
87107-44150 |
— | ||
|
87130D
|
87130D
87130-44150
Blower Assy
[09.2009 -] ZGM1# |
87130-44150 |
— | ||
|
87130D
|
87130D
87130-44170
Blower Assy
[09.2009 -] ZGM1# 寒冷地仕様 |
87130-44170 |
— | ||
|
87139D
|
87139D
87139-12010 Filter, Clean Air[09.2009 -] ZGM1# 微細塵フィルタ |
87139-12010 |
from US $33.60 |
||
|
87139D
|
87139D
87139-44010 Filter, Clean Air[09.2009 -] ZGM1# 脱臭フィルタ |
87139-44010 |
US $67.20 |
||
|
87165C
|
87165C
87165-13010 Control, Blower Motor[09.2009 -] ZGM1# |
87165-13010 |
from US $130.24 |
||
|
87211K
|
87211K
87211-12260
Duct, Air, No.1
[09.2009 -] ZGM1# |
87211-12260 |
— | ||
|
88501
|
88501
88501-68011
Evaporator Sub-Assy, Cooler, No.1
[09.2009 - 05.2011] ZGM1# |
88501-68011 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-68012
Evaporator Sub-Assy, Cooler, No.1
[09.2009 - 05.2011] ZGM1# |
88501-68012 |
— | ||
|
88515
|
88515
88515-21040 Valve, Cooler Expansion[09.2009 -] ZGM1# |
88515-21040 |
from US $78.66 |
||
|
88539
|
88539
88539-44120
Hose, Cooler Unit Drain, No.1
[09.2009 -] ZGM1# |
88539-44120 |
— | ||
|
88539G
|
88539G
90099-32129
Grommet (For Cooler Unit Drain Hose)
[09.2009 -] ZGM1# |
90099-32129 |
— | ||
|
88548B
|
88548B
88548-52010 Case, Air Filter[09.2009 -] ZGM1# |
88548-52010 |
from US $9.43 |
||
| replacement | |||||
|
88548B
|
88548B
88548520101
Holder Sub-Assy, Filter
[09.2009 -] ZGM1# |
88548520101 |
— | ||
|
88578B
|
88578B
88578-12540
Packing, Cooling Unit, No.1
[09.2009 -] ZGM1# 寒冷地仕様 |
88578-12540 |
— | ||
|
88625
|
88625
88625-21030
Thermistor, Cooler, No.1
[09.2009 -] ZGM1# |
88625-21030 |
— | ||
|
88669B
|
88669B
88669-44050
Hose, Cooler Air
[09.2009 -] ZGM1# |
88669-44050 |
— | ||
|
88710A
|
88710A
88710-20830 Tube Assy, Air Conditioner[09.2009 -] ZGM1# |
88710-20830 |
US $72.22 |
||
|
88897K
|
88897K
90480-01434 Grommet, (For Cooler Pipe)[09.2009 -] ZGM1# |
90480-01434 |
US $4.54 |
||
|
88897M
|
88897M
90480-01405 Grommet, Heater Hose[09.2009 -] ZGM1# |
90480-01405 |
US $3.84 |
||
|
8856921010
|
8856921010
88569-21010
Clamp (for Cooler Relay)
|
88569-21010 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
