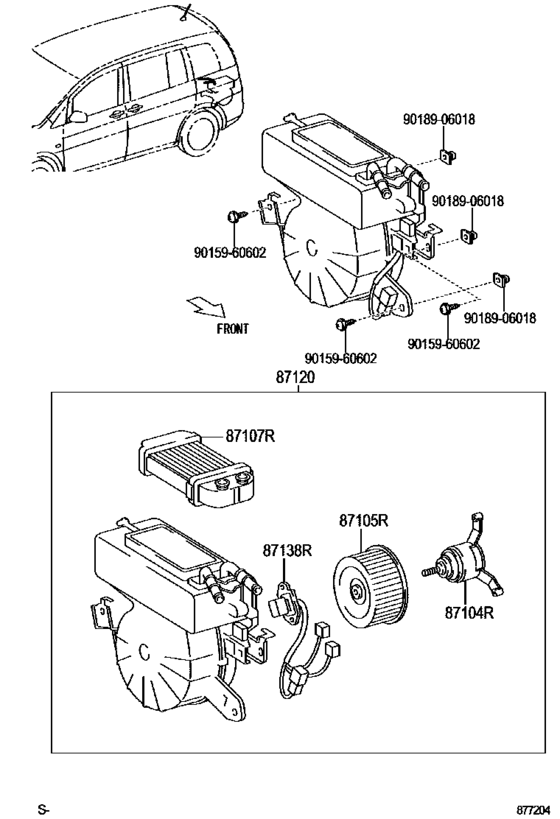

Heating & Air Conditioning - Heater Unit & Blower ([09.2004 - ] (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104R
|
87104R
87104-44090 Motor Sub-Assy, Rear Heater Blower[09.2009 -] ZGM10,11 寒冷地仕様 |
87104-44090 |
US $161.62 |
||
|
87105R
|
87105R
87105-28030
Fan Sub-Assy, Rear Heater Blower
[09.2009 -] ZGM10,11 寒冷地仕様 |
87105-28030 |
— | ||
|
87107R
|
87107R
87107-44060
Unit Sub-Assy, Rear Heater
[09.2009 -] ZGM10,11 寒冷地仕様 |
87107-44060 |
— | ||
|
87120
|
87120
87110-44060
Heater Assy, Rear
[09.2009 -] ZGM10,11 寒冷地仕様 |
87110-44060 |
— | ||
|
87138R
|
87138R
87138-44040
Resistor, Rear Heater Blower
[09.2009 -] ZGM10,11 寒冷地仕様 |
87138-44040 |
— | ||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
