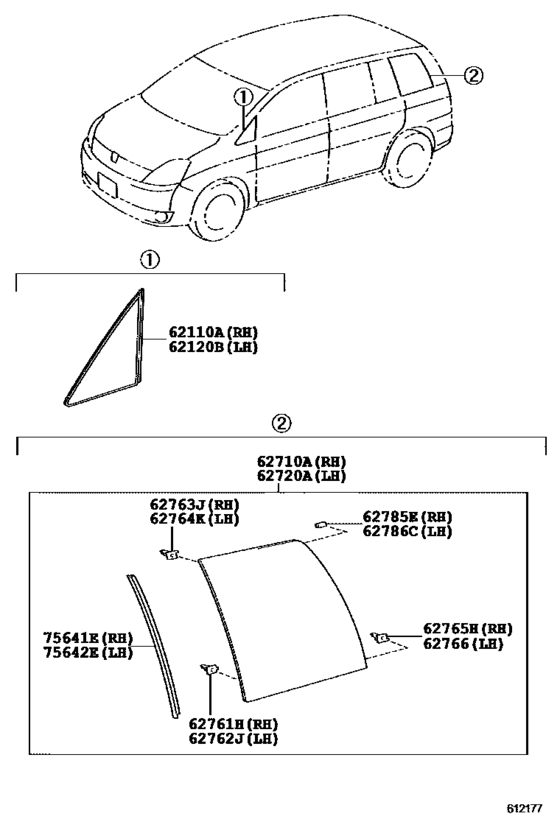

Quarter Window ([09.2004 - ] (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62110A
|
62110A
62110-44060
Window Assy, Front Side Fix, Rh
[09.2009 -] ZGM1# |
62110-44060 |
— | ||
|
62120B
|
62120B
62120-44060
Window Assy, Front Side Fix, Lh
[09.2009 -] ZGM1# |
62120-44060 |
— | ||
|
62710A
|
62710A
62710-44280
Window Assy, Quarter, Rh
[09.2009 - 01.2012] ZGM1# ＊ＴＴ，厚さ＝３．１，ダークグレー |
62710-44280 |
— | ||
|
62720A
|
62720A
62720-44250
Window Assy, Quarter, Lh
[09.2009 - 01.2012] ZGM1# ＊ＴＴ，厚さ＝３．１，ダークグレー |
62720-44250 |
— | ||
|
62761H
|
62761H
62761-44010 Retainer, Quarter Window Glass, Front[09.2009 -] ZGM1# |
62761-44010 |
US $4.48 |
||
|
62762J
|
62762J
62762-44010 Retainer, Quarter Window Glass, Front Lh[09.2009 -] ZGM1# |
62762-44010 |
US $2.48 |
||
|
62763J
|
62763J
62763-44010 Retainer, Quarter Window Glass, Upper[09.2009 -] ZGM1# |
62763-44010 |
US $2.48 |
||
|
62764K
|
62764K
62764-44010 Retainer, Quarter Window Glass, Upper[09.2009 -] ZGM1# |
62764-44010 |
US $4.48 |
||
|
62765H
|
62765H
62765-44010 Retainer, Quarter Window Glass, Lower[09.2009 -] ZGM1# |
62765-44010 |
US $3.16 |
||
|
62766
|
62766
62766-44010 Retainer, Quarter Window Glass, Lower Lh[09.2009 -] ZGM1# |
62766-44010 |
US $4.48 |
||
|
62785E
|
62785E
62785-12050 Spacer, Quarter Window Glass, Rh[02.2011 -] ZGM1# |
62785-12050 |
US $3.40 |
||
|
62785E
|
62785E
62785-60030 Spacer, Quarter Window Glass[09.2009 - 01.2011] ZGM1# |
62785-60030 |
from US $2.32 |
||
|
62786C
|
62786C
62785-12050 Spacer, Quarter Window Glass, Rh[02.2011 -] ZGM1# |
62785-12050 |
US $3.40 |
||
|
62786C
|
62786C
62785-60030 Spacer, Quarter Window Glass[09.2009 - 01.2011] ZGM1# |
62785-60030 |
from US $2.32 |
||
|
75641E
|
75641E
75641-44020 Moulding, Quarter Window, Rh[09.2009 - 01.2012] ZGM1# |
75641-44020 |
US $15.14 |
||
| replacement | |||||
|
75641E
|
75641E
75641-44030 Moulding, Quarter Window, Rh[09.2009 - 01.2012] ZGM1# |
75641-44030 |
US $13.48 |
||
|
75642E
|
75642E
75642-44010
Moulding, Quarter Window, Lh
[09.2009 - 01.2012] ZGM1# |
75642-44010 |
— | ||
| replacement | |||||
|
75642E
|
75642E
75642-44020 Moulding, Quarter Window, Lh[09.2009 - 01.2012] ZGM1# |
75642-44020 |
US $13.48 |
||
