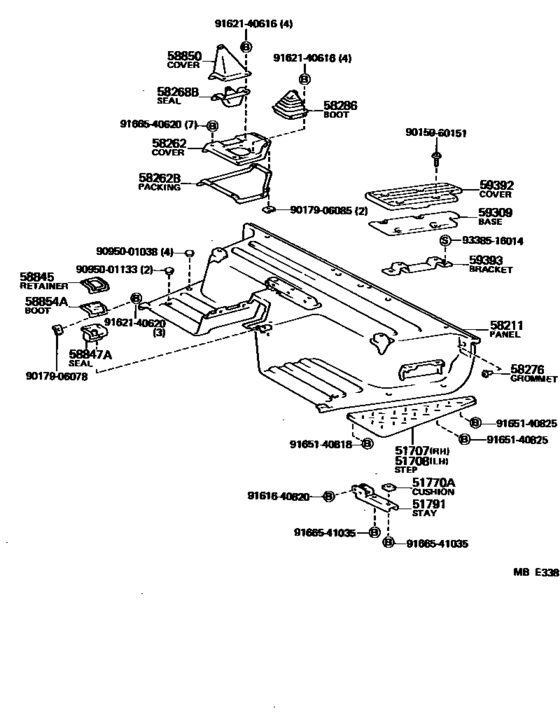

Front Floor Panel & Front Floor Member ([10.1982 - ] (8210- )) Diagram Toyota LAND CRUISER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- BJ46
- body
- TP
- ENGINE
- 3B
- Model
- LAND CRUISER 40
- From
- 10.1982
- To
- 10.1984
- Gear Shift Type
- 4F
- Seating Capacity
- 08S
- Vehicle Model
- Land Cruiser S/T,H/T
- Loading Capacity
- 50K
- Back Door
- TPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51707
|
51707
51707-90801
Step Sub-Assy, Rh
[02.1981 - 10.1984] BJ4# |
51707-90801 |
— | ||
|
51708
|
51708
51708-90801
Step Sub-Assy, Lh
[02.1981 - 10.1984] BJ4# |
51708-90801 |
— | ||
|
51770A
|
51770A
52232-90300
Cushion(For Step)
[08.1980 - 10.1984] BJ4# |
52232-90300 |
— | ||
|
51791
|
51791
51701-90300
Stay, Step
[08.1980 - 10.1984] BJ4# |
51701-90300 |
— | ||
|
58211
|
58211
58101-90834
Panel, Front Floor
[10.1982 - 11.1983] BJ4#..TPC |
58101-90834 |
— | ||
| replacement | |||||
|
58211
|
58211
58101-90887
Panel, Front Floor
[10.1982 - 11.1983] BJ4#..TPC |
58101-90887 |
— | ||
|
58211
|
58211
58101-90836
Panel, Front Floor
[10.1982 - 11.1983] BJ4#..TPC W/MECHANICAL WINCH |
58101-90836 |
— | ||
| replacement | |||||
|
58211
|
58211
58101-90889
Panel, Front Floor
[10.1982 - 11.1983] BJ4#..TPC W/MECHANICAL WINCH |
58101-90889 |
— | ||
|
58211
|
58211
58101-90887
Panel, Front Floor
[11.1983 - 10.1984] BJ4#..TPC |
58101-90887 |
— | ||
|
58211
|
58211
58101-90889
Panel, Front Floor
[11.1983 - 10.1984] BJ4#..TPC W/MECHANICAL WINCH |
58101-90889 |
— | ||
|
58262
|
58262
58261-90800
Cover, Transmission
[10.1982 - 10.1984] BJ4#..4F |
58261-90800 |
— | ||
|
58262B
|
58262B
58263-90800
Packing, Transmission Cover
[10.1982 - 10.1984] BJ4# |
58263-90800 |
— | ||
|
58268B
|
58268B
58268-90800
Seal, Transfer Lever Boot
[10.1982 - 10.1984] BJ4# |
58268-90800 |
— | ||
|
58276
|
58276
58276-90300
Grommet, Safety Band Anchorage Nut
[10.1981 - 10.1984] BJ4#..TPC |
58276-90300 |
— | ||
|
58286
|
58286
58280-90800
Boot, Shift & Select Lever, No.1
[10.1982 - 10.1984] BJ4# |
58280-90800 |
— | ||
|
58845
|
58845
58845-90800
Retainer, Winch Lever Boot
[10.1982 - 10.1984] BJ4# |
58845-90800 |
— | ||
|
58847A
|
58847A
58847-90800
Seal, Winch Lever
[10.1982 - 10.1984] BJ4# |
58847-90800 |
— | ||
|
58850
|
58850
58850-90800
Cover Assy, Transfer Lever Hole
[10.1982 - 10.1984] BJ4# |
58850-90800 |
— | ||
|
58854A
|
58854A
58854-90800
Boot, Winch Lever
[10.1982 - 10.1984] BJ4# |
58854-90800 |
— | ||
|
9015960151
|
9015960151
90159-60151 New Genuine Part |
90159-60151 |
US $2.56 |
||
|
9017906078
|
9017906078
90179-06078 New Genuine Part |
90179-06078 |
US $1.05 |
||
|
9017906085
|
9017906085
90179-06085
New Genuine Part
|
90179-06085 |
— | ||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
from US $2.63 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.28 |
||
|
9162140620
|
9162140620
91621-40620 Bolt |
91621-40620 |
from US $1.92 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
US $1.28 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9166540620
|
9166540620
91665-40620
New Genuine Part
|
91665-40620 |
— | ||
| replacement | |||||
|
9166540620
|
9166540620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9166541035
|
9166541035
91665-41035
New Genuine Part
|
91665-41035 |
— | ||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
