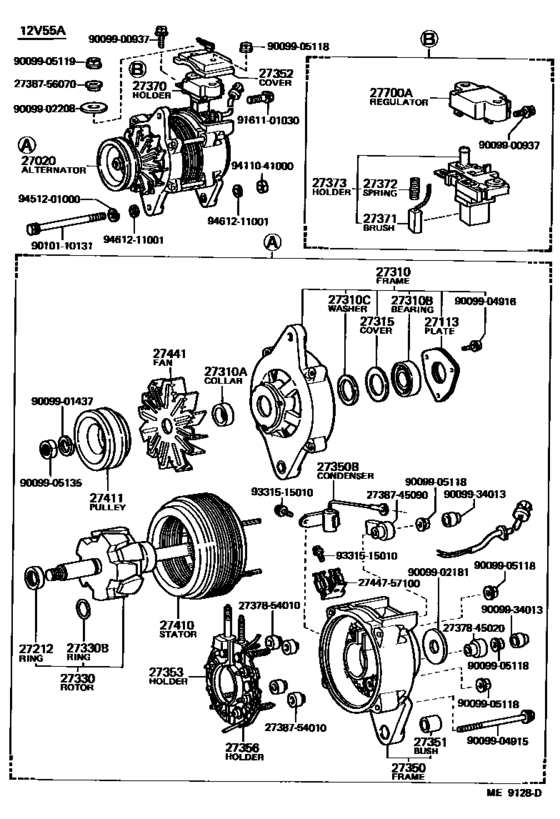

Alternator ([08.1980 - 04.1982] (8008-8204)3B) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- U.S.A.
- Frame
- BJ60
- body
- WGG
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-56190 Alternator Assy[04.1982 - 10.1982] 3B..BJ60 12V 55A |
27020-56190 |
US $1,054.14 |
||
|
27020
|
27020
27020-56240 Alternator Assy[10.1982 - 10.1985] 3B..BJ60 12V 55A,12V 55A |
27020-56240 |
US $1,061.42 |
||
|
27020
|
27020
27020-57071 Alternator Assy[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27020-57071 |
US $1,057.06 |
||
|
27113
|
27113
27312-56070
Plate, Bearing Retainer, Alternator
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27312-56070 |
— | ||
|
27113
|
27113
27312-57060
Plate, Bearing Retainer, Alternator
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27312-57060 |
— | ||
|
27212
|
27212
27333-57060
Ring, Space(For Alternator Rotor)
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27333-57060 |
— | ||
|
27212
|
27212
27412-54040
Ring, Space(For Alternator Rotor)
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27412-54040 |
— | ||
|
27310
|
27310
27310-56110
Frame Assy, Drive End, Alternator
[04.1982 - 10.1982] 3B..BJ60 12V 55A |
27310-56110 |
— | ||
|
27310
|
27310
27310-56180
Frame Assy, Drive End, Alternator
[10.1982 - 10.1985] 3B..BJ60 12V 55A |
27310-56180 |
— | ||
|
27310
|
27310
27310-57061
Frame Assy, Drive End, Alternator
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27310-57061 |
— | ||
|
27310A
|
27310A
27412-57060
Collar Or Nut(For Alternator Drive End Frame)
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27412-57060 |
— | ||
|
27310A
|
27310A
90099-19251
Collar Or Nut(For Alternator Drive End Frame)
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
90099-19251 |
— | ||
|
27310B
|
27310B
90099-10120
Bearing(For Alternator Drive End Frame)
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
90099-10120 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[04.1982 - 10.1985] 3B..BJ60 12V 55A |
90099-10137 |
US $12.58 |
||
|
27310C
|
27310C
90099-02207
Felt(For Alternator Drive End Frame)
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
90099-02207 |
— | ||
|
27310C
|
27310C
90099-02209
Felt(For Alternator Drive End Frame)
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
90099-02209 |
— | ||
|
27315
|
27315
27315-56070
Cover, Alternator Felt, Inner No.1
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27315-56070 |
— | ||
|
27315
|
27315
27315-57060
Cover, Alternator Felt, Inner No.1
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27315-57060 |
— | ||
|
27330
|
27330
27330-54060
Rotor Assy, Alternator
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27330-54060 |
— | ||
|
27330
|
27330
27330-56190
Rotor Assy, Alternator
[04.1982 - 09.1984] 3B..BJ60 12V 55A |
27330-56190 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-64170
Rotor Assy, Alternator
[04.1982 - 09.1984] 3B..BJ60 12V 55A |
27330-64170 |
— | ||
|
27330B
|
27330B
90099-07103
Ring, Snap(For Alternator Rotor)
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
90099-07103 |
— | ||
|
27330B
|
27330B
90099-07108
Ring, Snap(For Alternator Rotor)
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
90099-07108 |
— | ||
|
27350
|
27350
27350-56110
Frame Assy, Rectifier End
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27350-56110 |
— | ||
|
27350
|
27350
27350-57061
Frame Assy, Rectifier End
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27350-57061 |
— | ||
|
27350B
|
27350B
90099-52066
Condenser, Alternator
[08.1980 - 10.1985] 3B..BJ60 12V 55A |
90099-52066 |
— | ||
| replacement | |||||
|
27350B
|
27350B
90099-52035 Condenser, AlternatorRECTIFIER END [08.1980 - 10.1985] 3B..BJ60 12V 55A |
90099-52035 |
US $13.11 |
||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[08.1980 - 08.1987] 3B,2H..BJ60,HJ60 12V 55A,24V 40A |
27351-56013 |
— | ||
|
27352
|
27352
27388-57070
Cover, Frame Brush
[08.1980 - 10.1985] 3B..BJ60 12V 55A |
27388-57070 |
— | ||
| replacement | |||||
|
27352
|
27352
27388-54070
Cover, Frame Brush
[08.1980 - 10.1985] 3B..BJ60 12V 55A |
27388-54070 |
— | ||
|
27353
|
27353
27353-57070
Holder, W/rectifier Positive, Alternator
[08.1980 - 10.1985] 3B..BJ60 12V 55A |
27353-57070 |
— | ||
| replacement | |||||
|
27353
|
27353
27353-54180
Holder, W/rectifier Positive, Alternator
[08.1980 - 10.1985] 3B..BJ60 12V 55A |
27353-54180 |
— | ||
|
27356
|
27356
27356-54170
Holder, W/rectifier Negative, Alternator
[10.1982 - 10.1985] 3B..BJ60 12V 55A |
27356-54170 |
— | ||
| replacement | |||||
|
27356
|
27356
27356-54180
Holder, W/rectifier Negative, Alternator
[10.1982 - 10.1985] 3B..BJ60 12V 55A |
27356-54180 |
— | ||
|
27356
|
27356
27356-57070
Holder, W/rectifier Negative, Alternator
[08.1980 - 10.1982] 3B..BJ60 12V 55A |
27356-57070 |
— | ||
| replacement | |||||
|
27356
|
27356
27356-54180
Holder, W/rectifier Negative, Alternator
[08.1980 - 10.1982] 3B..BJ60 12V 55A |
27356-54180 |
— | ||
|
27370
|
27370
27370-57070
Holder Assy, Alternator Brush
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27370-57070 |
— | ||
|
27370
|
27370
27373-57070
Holder, Alternator Brush, A
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27373-57070 |
— | ||
|
27371
|
27371
27371-56070
Brush, Alternator
[08.1980 - 08.1987] 3B,2H..BJ60,HJ60 12V 55A,24V 40A |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[08.1980 - 08.1987] 3B,2H..BJ60,HJ60 12V 55A,24V 40A |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[08.1980 - 08.1987] 3B,2H..BJ60,HJ60 12V 55A,24V 40A |
27372-56070 |
— | ||
|
27373
|
27373
27373-57070
Holder, Alternator Brush, A
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27373-57070 |
— | ||
|
27410
|
27410
27410-57070
Stator Assy, Alternator
[08.1980 - 10.1985] 3B..BJ60 12V 55A |
27410-57070 |
— | ||
|
27411
|
27411
27411-57060
Pulley, Alternator
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27411-57060 |
— | ||
|
27411
|
27411
27411-57061
Pulley, Alternator
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27411-57061 |
— | ||
|
27441
|
27441
27441-54040
Fan, Alternator
[08.1980 - 04.1982] 3B..BJ60 12V 55A |
27441-54040 |
— | ||
|
27441
|
27441
27441-56090
Fan, Alternator
[04.1982 - 10.1985] 3B..BJ60 12V 55A |
27441-56090 |
— | ||
|
27700A
|
27700A
27700-57060 Regulator Assy, Generator[08.1980 - 10.1985] 3B..BJ60 |
27700-57060 |
US $276.64 |
||
| replacements | |||||
|
27700A
|
27700A
27700-64030 Regulator Assy, Generator[08.1980 - 10.1985] 3B..BJ60 |
27700-64030 |
US $276.64 |
||
|
27700A
|
27700A
90099-05118
New Genuine Part
[08.1980 - 10.1985] 3B..BJ60 |
90099-05118 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738745090
|
2738745090
27387-45090
Insulator, Terminal
|
27387-45090 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
2744757100
|
2744757100
27447-57100
Clip, Alternator Cord
|
27447-57100 |
— | ||
|
9009900937
|
9009900937
90099-00937
New Genuine Part
|
90099-00937 |
— | ||
|
9009901437
|
9009901437
90099-01437
New Genuine Part
|
90099-01437 |
— | ||
|
9009902181
|
9009902181
90099-02181
Felt (For Alternator Rectifier End Frame)
|
90099-02181 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904915
|
9009904915
90099-04915
New Genuine Part
|
90099-04915 |
— | ||
|
9009904916
|
9009904916
90099-04916
New Genuine Part
|
90099-04916 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905135
|
9009905135
90099-05135
New Genuine Part
|
90099-05135 |
— | ||
|
9009934013
|
9009934013
90099-34013
Cap, Alternator Terminal
|
90099-34013 |
— | ||
|
9010110131
|
9010110131
90101-10131 Shaft, Clutch Pedal |
90101-10131 |
US $3.84 |
||
|
9161101030
|
9161101030
91611-01030
New Genuine Part
|
91611-01030 |
— | ||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
