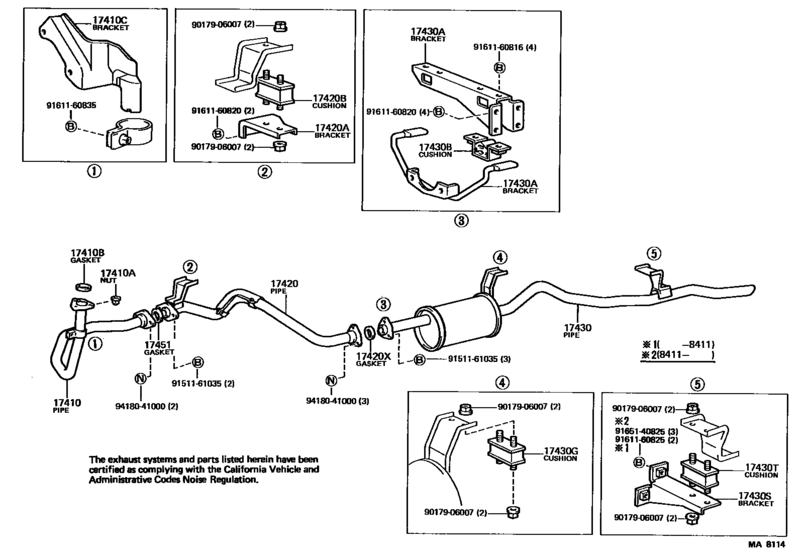

Exhaust Pipe ([08.1980 - 10.1985] (8008-8510)3B) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- U.S.A.
- Frame
- BJ60
- body
- WGG
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-56080 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1980 - 11.1984] 3B..BJ60 |
17401-56080 |
US $126.67 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[08.1980 - 11.1984] 3B,2F..BJ60,FJ60 |
90179-10010 |
from US $1.31 |
||
|
17410B
|
17410B
90917-06012
Gasket, Exhaust Pipe
[08.1980 - 10.1985] 3B..BJ60 |
90917-06012 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06045 Gasket, Exhaust Pipe[08.1980 - 10.1985] 3B..BJ60 |
90917-06045 |
from US $1.56 |
||
|
17410C
|
17410C
17571-56040 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1980 - 11.1984] 3B..BJ60 |
17571-56040 |
US $24.17 |
||
|
17420
|
17420
17420-56050 Pipe Assy, Exhaust, Center[08.1980 - 10.1982] 3B..BJ60 |
17420-56050 |
US $154.34 |
||
| replacement | |||||
|
17420
|
17420
17420-56051
Pipe Assy, Exhaust, Center
[08.1980 - 10.1982] 3B..BJ60 |
17420-56051 |
— | ||
|
17420
|
17420
17420-56051
Pipe Assy, Exhaust, Center
[10.1982 - 11.1984] 3B..BJ60 |
17420-56051 |
— | ||
|
17420A
|
17420A
17572-56130 Bracket, Exhaust Pipe Center, FrontEXHAUST PIPE CENTER, FRONT [08.1980 - 11.1984] 3B..BJ60 |
17572-56130 |
US $18.78 |
||
|
17420B
|
17420B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1980 - 10.1985] 3B..BJ60 |
17567-61030 |
from US $14.29 |
||
|
17420X
|
17420X
90917-06024
Gasket, Exhaust Pipe, Center
[08.1980 - 10.1985] 3B..BJ60 |
90917-06024 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[08.1980 - 10.1985] 3B..BJ60 |
90917-06073 |
from US $8.06 |
||
|
17430
|
17430
17430-56260 Pipe Assy, Exhaust, Tail[08.1980 - 10.1982] 3B..BJ60 |
17430-56260 |
US $493.58 |
||
| replacement | |||||
|
17430
|
17430
17430-56261 Pipe Assy, Exhaust, Tail[08.1980 - 10.1982] 3B..BJ60 |
17430-56261 |
US $493.58 |
||
|
17430
|
17430
17430-56261 Pipe Assy, Exhaust, Tail[10.1982 - 11.1984] 3B..BJ60 |
17430-56261 |
US $493.58 |
||
|
17430A
|
17430A
17505-61040
Bracket, Exhaust Tail Pipe(For Front)
[08.1980 - 10.1985] 3B,2F..BJ60,FJ60..CND PIPE SUPPORT |
17505-61040 |
— | ||
|
17430A
|
17430A
17583-61050 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1980 - 08.1987] 3B,2F..BJ60,FJ60 FRAME SIDE |
17583-61050 |
US $69.01 |
||
|
17430B
|
17430B
90917-04052
Cushion, Exhaust Tail Pipe(For Front)
[08.1980 - 08.1987] 3B,2F,2H..BJ60,FJ60,HJ60 |
90917-04052 |
— | ||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1980 - 08.1987] 3B,2F,2H..BJ60,FJ60,HJ60 |
17567-61030 |
from US $14.29 |
||
|
17430S
|
17430S
17574-61050
Bracket, Exhaust Tail Pipe (For Rear)
[08.1980 - 11.1984] 3B,2F..BJ60,FJ60 |
17574-61050 |
— | ||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1980 - 08.1987] 3B,2F,2H..BJ60,FJ60,HJ60 |
17567-61030 |
from US $14.29 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1980 - 10.1985] 3B..BJ60 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1980 - 10.1985] 3B..BJ60 |
90917-06045 |
from US $1.56 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.67 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
