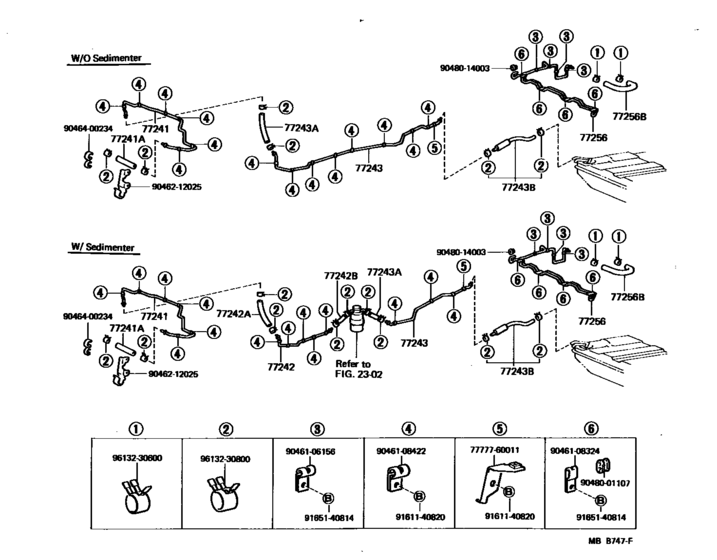

Fuel Tank & Tube ([08.1980 - 11.1984] (8008-8411)BJ60) Diagram Toyota LAND CRUISER
- Year
- 1981 - 1982
- Sales region
- U.S.A.
- Frame
- BJ60
- body
- WGG
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 10.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77241
|
77241
77253-60020
Tube, Fuel Main, No.1
[08.1980 - 10.1982] BJ60 |
77253-60020 |
— | ||
|
77241
|
77241
77253-60021
Tube, Fuel Main, No.1
[10.1982 - 01.1983] BJ60 |
77253-60021 |
— | ||
|
77241A
|
77241A
95332-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 10.1981] BJ60 *H,L=460,ID=7.6 |
95332-08060 |
— | ||
| replacement | |||||
|
77241A
|
77241A
95333-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 10.1981] BJ60 *H,L=460,ID=7.6 |
95333-08060 |
— | ||
|
77241A
|
77241A
95332-08080
Hose, Fuel, No.1(For Fuel Tank)
[10.1981 - 10.1985] BJ60 *H,L=750,ID=7.6 |
95332-08080 |
— | ||
| replacement | |||||
|
77241A
|
77241A
95333-08100 Hose, Fuel, No.2 (For Main Tube, No.1)[10.1981 - 10.1985] BJ60 *H,L=750,ID=7.6 |
95333-08100 |
US $33.94 |
||
|
77242
|
77242
77252-60060
Tube, Fuel Main, No.2
[08.1980 - 11.1984] BJ60 W/SEDIMENTER |
77252-60060 |
— | ||
|
77242A
|
77242A
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 11.1984] BJ60 *H,L=220,ID=7.6 |
95332-08030 |
— | ||
| replacement | |||||
|
77242A
|
77242A
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1980 - 11.1984] BJ60 *H,L=220,ID=7.6 |
95333-08030 |
US $11.83 |
||
|
77242B
|
77242B
95332-08020
Hose, Fuel Pipe, No.1
[08.1980 - 02.1987] BJ60,HJ60 *H,L=130,ID=7.6,W/SEDIMENTER |
95332-08020 |
— | ||
| replacement | |||||
|
77242B
|
77242B
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1980 - 02.1987] BJ60,HJ60 *H,L=130,ID=7.6,W/SEDIMENTER |
95337-08020 |
from US $5.56 |
||
|
77243
|
77243
77251-60210
Tube, Fuel Main, No.3
[08.1980 - 07.1983] BJ60 W/SEDIMENTER |
77251-60210 |
— | ||
|
77243A
|
77243A
95332-08020
Hose, Fuel Pipe, No.1
[08.1980 - 02.1987] BJ60,HJ60 *H,L=130,ID=7.6,W/SEDIMENTER |
95332-08020 |
— | ||
| replacement | |||||
|
77243A
|
77243A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1980 - 02.1987] BJ60,HJ60 *H,L=130,ID=7.6,W/SEDIMENTER |
95337-08020 |
from US $5.56 |
||
|
77243B
|
77243B
77250-60050
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
77250-60050 |
— | ||
|
77256
|
77256
77244-60140
Tube, Fuel Emission, No.3
[10.1981 - 08.1987] BJ60,HJ60 |
77244-60140 |
— | ||
|
77256B
|
77256B
95332-06030
Hose(For Carburetor)
[10.1981 - 02.1987] BJ60,HJ60 *H,L=260 |
95332-06030 |
— | ||
| replacement | |||||
|
77256B
|
77256B
95333-06030
Hose, Fuel
[10.1981 - 02.1987] BJ60,HJ60 *H,L=260 |
95333-06030 |
— | ||
|
7777760011
|
7777760011
77777-60011
Bracket, Fuel Tube Clamp
|
77777-60011 |
— | ||
|
9046106156
|
9046106156
90461-06156 New Genuine Part |
90461-06156 |
US $2.18 |
||
|
9046108324
|
9046108324
90461-08324
New Genuine Part
|
90461-08324 |
— | ||
|
9046108422
|
9046108422
90461-08422
New Genuine Part
|
90461-08422 |
— | ||
|
9046212025
|
9046212025
90462-12025 Clamp(For Fuel Hose) |
90462-12025 |
US $7.28 |
||
|
9046400234
|
9046400234
90464-00234
New Genuine Part
|
90464-00234 |
— | ||
|
9048001107
|
9048001107
90480-01107 Grommet(For Brake Tube) |
90480-01107 |
US $1.97 |
||
|
9048014003
|
9048014003
90480-14003 New Genuine Part |
90480-14003 |
US $1.22 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
