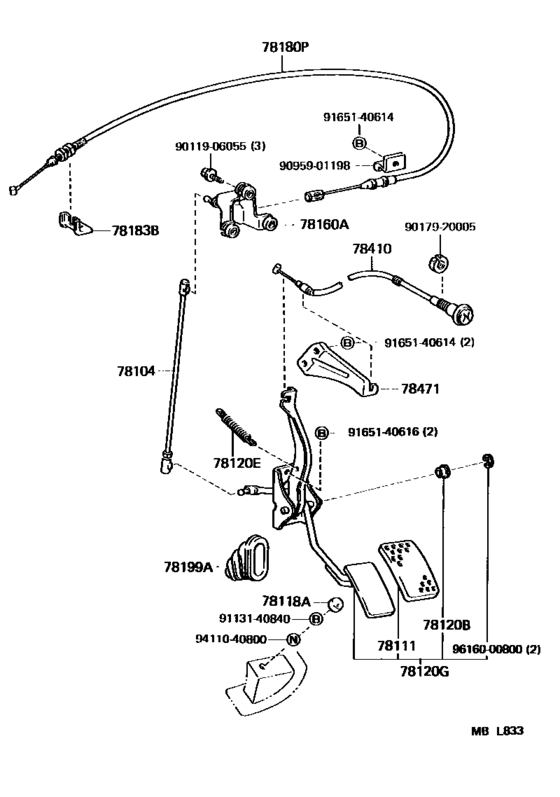

Accelerator Link ([08.1987 - ] (8708- )BJ60..LHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78104
|
78104
78104-90A01
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
78104-90A01 |
— | ||
|
78111
|
78111
78111-95110 Pedal, Accelerator[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
78111-95110 |
from US $8.42 |
||
|
78118A
|
78118A
78118-90K00
Stopper, Accelerator Pedal
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
78118-90K00 |
— | ||
| replacement | |||||
|
78118A
|
78118A
45619-14010 Cover, Knuckle Stopper[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
45619-14010 |
US $9.68 |
||
|
78120B
|
78120B
90386-10138 Bush (For Throttle Cam Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
90386-10138 |
US $4.30 |
||
|
78120E
|
78120E
90506-12262
Spring (For Accelerator Pedal Rod)
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
90506-12262 |
— | ||
|
78120G
|
78120G
78120-90A06 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
78120-90A06 |
US $126.67 |
||
|
78160A
|
78160A
78160-90A02
Bellcrank Assy, Accelerator
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
78160-90A02 |
— | ||
|
78180P
|
78180P
78180-90A15
Wire Assy, Accelerator
[08.1987 - 08.1988] BJ60..LHD |
78180-90A15 |
— | ||
|
78183B
|
78183B
78183-90A00
Clamp, Accelerator Control Cable
[08.1987 - 08.1988] BJ60 |
78183-90A00 |
— | ||
|
78199A
|
78199A
78199-90352
Boot, Accelerator Connecting Rod
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
78199-90352 |
— | ||
|
78410
|
78410
78410-90A02
Cable Assy, Throttle Control
[08.1987 - 01.1988] BJ60,FJ62,HJ60..LHD |
78410-90A02 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A10
Cable Assy, Throttle Control
[08.1987 - 01.1988] BJ60,FJ62,HJ60..LHD |
78410-90A10 |
— | ||
|
78471
|
78471
78471-90A00
Bracket, Throttle Rod
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
78471-90A00 |
— | ||
|
9011906055
|
9011906055
90119-06055 New Genuine Part |
90119-06055 |
US $1.89 |
||
|
9017920005
|
9017920005
90179-20005
New Genuine Part
|
90179-20005 |
— | ||
|
9095901198
|
9095901198
90959-01198
New Genuine Part
|
90959-01198 |
— | ||
|
9113140840
|
9113140840
91131-40840
Bolt, Accelerator Pedal Stopper
|
91131-40840 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.86 |
||
