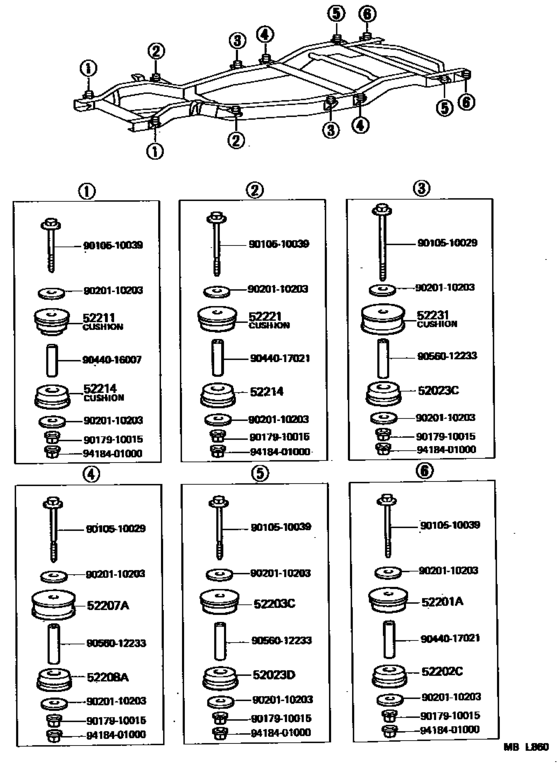

Cab Mounting & Body Mounting ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023C
|
52023C
52023-60011 Cushion Sub-Assy, No.3 Body Mounting, Lower[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52023-60011 |
from US $22.18 |
||
|
52023D
|
52023D
52023-60011 Cushion Sub-Assy, No.3 Body Mounting, Lower[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52023-60011 |
from US $22.18 |
||
|
52201A
|
52201A
52201-25020 Cushion Sub-Assy, Cab Front Mounting[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52201-25020 |
from US $11.76 |
||
|
52202C
|
52202C
52202-25020 Cushion Sub-Assy, Cab Front Mounting, Lower[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52202-25020 |
from US $16.72 |
||
| replacement | |||||
|
52202C
|
52202C
48760-42030 Arm Assy, Trailing, Rear RhTRAILING, REAR [08.1987 - 03.1992] BJ60,FJ62,HJ6# |
48760-42030 |
from US $132.22 |
||
|
52203C
|
52203C
52203-60030 Cushion Sub-Assy, Cab Mounting, No.2 Upper[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52203-60030 |
from US $19.27 |
||
|
52207A
|
52207A
52207-60010 Cushion Sub-Assy, Cab Mounting, No.4 Upper[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52207-60010 |
from US $27.87 |
||
|
52208A
|
52208A
52208-60010 Cushion Sub-Assy, Cab Mounting, No.4 Lower[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52208-60010 |
from US $10.01 |
||
|
52211
|
52211
52201-35021 Cushiion Sub-Assy, Cab Mounting, No.1 Upper[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52201-35021 |
from US $15.14 |
||
|
52214
|
52214
52202-25020 Cushion Sub-Assy, Cab Front Mounting, Lower[08.1987 - 03.1992] BJ60,FJ62,HJ6# RR |
52202-25020 |
from US $16.72 |
||
| replacement | |||||
|
52214
|
52214
48760-42030 Arm Assy, Trailing, Rear RhTRAILING, REAR [08.1987 - 03.1992] BJ60,FJ62,HJ6# RR |
48760-42030 |
from US $132.22 |
||
|
52214
|
52214
52202-35021 Cushiion Sub-Assy, Cab Mounting, No.1 Lower[08.1987 - 03.1992] BJ60,FJ62,HJ6# FR |
52202-35021 |
from US $12.58 |
||
|
52221
|
52221
52201-25020 Cushion Sub-Assy, Cab Front Mounting[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52201-25020 |
from US $11.76 |
||
|
52231
|
52231
52203-60030 Cushion Sub-Assy, Cab Mounting, No.2 Upper[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52203-60030 |
from US $19.27 |
||
|
9010510029
|
9010510029
90105-10029 Bolt(For Body Mounting No.1 Cushion) |
90105-10029 |
from US $3.29 |
||
|
9010510039
|
9010510039
90105-10039
Bolt(For Body Mounting No.1 Cushion)
|
90105-10039 |
— | ||
| replacement | |||||
|
9010510039
|
9010510039
52217-60100 Bolt(For Body Mounting No.1 Cushion) |
52217-60100 |
from US $2.43 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9020110203
|
9020110203
90201-10203 Washer, Plate |
90201-10203 |
from US $1.62 |
||
|
9044016007
|
9044016007
90440-16007 Spacer(For Body Mounting No.1 Cushion) |
90440-16007 |
from US $4.75 |
||
|
9044017021
|
9044017021
90440-17021 Spacer(For Body Mounting No.1 Cushion) |
90440-17021 |
from US $9.99 |
||
|
9056012233
|
9056012233
90560-12233 Spacer(For Body Mount No.2 Cushion) |
90560-12233 |
from US $4.10 |
||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.10 |
||
