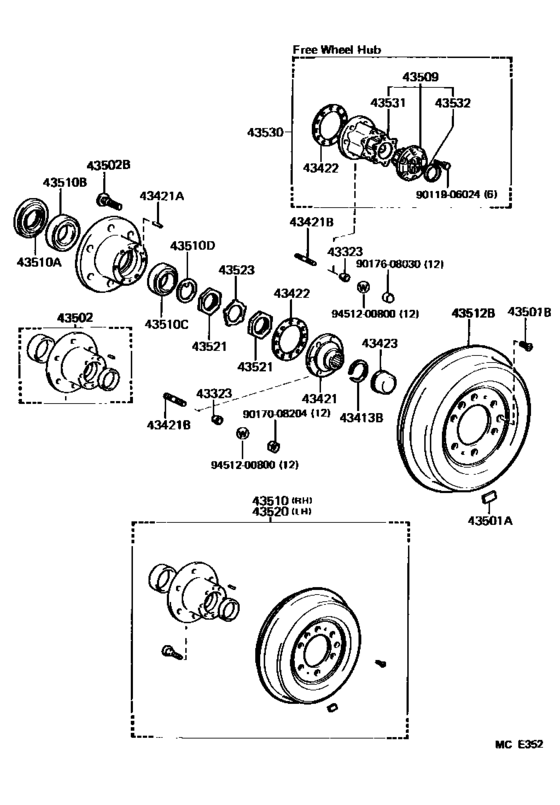

Front Axle Hub ([08.1987 - ] DRUM BRAKE (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43323
|
43323
42323-60010 Washer, Cone (For Axle Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
42323-60010 |
from US $2.91 |
||
|
43413B
|
43413B
90520-31001
Ring, Snap (For Rear Axle Shaft)
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90520-31001 |
— | ||
| replacement | |||||
|
43413B
|
43413B
90520-31007 Ring, Snap (For Front Drive Shaft Rh)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90520-31007 |
from US $1.37 |
||
|
43421
|
43421
43421-60013 Flange, Front Axle Outer Shaft[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
43421-60013 |
from US $59.47 |
||
|
43421A
|
43421A
90250-07057 Pin, Straight (For Axle Hub)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90250-07057 |
from US $1.06 |
||
|
43421B
|
43421B
90116-08325 Bolt, Stud (For Axle Hub)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90116-08325 |
from US $0.82 |
||
|
43422
|
43422
43422-60020
Gasket, Axle Shaft
[08.1987 - 09.1991] BJ60,FJ62,HJ6# |
43422-60020 |
— | ||
| replacement | |||||
|
43422
|
43422
43422-60010 Gasket, Axle Shaft[08.1987 - 09.1991] BJ60,FJ62,HJ6# |
43422-60010 |
from US $0.86 |
||
|
43423
|
43423
43423-35010 Cap, Front Axle Outer Shaft Flange[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
43423-35010 |
from US $2.64 |
||
|
43501A
|
43501A
90937-01117 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ60..GEN 10G |
90937-01117 |
US $1.14 |
||
|
43501A
|
43501A
90937-01118 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ60..GEN 20G |
90937-01118 |
US $1.05 |
||
|
43501A
|
43501A
90937-01119 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ60..GEN 30G |
90937-01119 |
US $1.05 |
||
|
43501A
|
43501A
90937-01121 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ60..GEN 50G |
90937-01121 |
US $1.05 |
||
|
43501A
|
43501A
90937-01122 Piece, Balance (For Rear Brake Drum)[08.1987 - 01.1990] BJ60,FJ62,HJ60..GEN 60G |
90937-01122 |
US $2.33 |
||
|
43501B
|
43501B
90113-10003 Bolt (For Rear Brake Drum Setting)[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
90113-10003 |
from US $0.68 |
||
|
43502
|
43502
43502-60020
Hub Sub-Assy, Front Axle, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN W(FRONT DISC BRAKE) |
43502-60020 |
— | ||
| replacement | |||||
|
43502
|
43502
43502-69125
Hub Sub-Assy, Front Axle, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN W(FRONT DISC BRAKE) |
43502-69125 |
— | ||
|
43502
|
43502
43502-60030
Hub, Front Axle
[08.1987 - 01.1990] BJ60..GEN W(FREE WHEEL HUB) |
43502-60030 |
— | ||
| replacement | |||||
|
43502
|
43502
43502-69135
Hub Sub-assy, Front Axle
[08.1987 - 01.1990] BJ60..GEN W(FREE WHEEL HUB) |
43502-69135 |
— | ||
|
43502B
|
43502B
90942-02052 Bolt, Hub (For Rear Axle)[08.1987 - 01.1990] BJ60..GEN |
90942-02052 |
from US $3.76 |
||
|
43502B
|
43502B
90942-02053 Bolt, Hub (For Front Axle)[08.1987 - 03.1990] BJ60,FJ62,HJ60..GEN W(FRONT DISC BRAKE) |
90942-02053 |
from US $5.78 |
||
|
43509
|
43509
43509-60015
Cover Sub-Assy, Free Wheel Hub
[08.1987 - 03.1990] BJ60,FJ62,HJ6#..ARL,GEN |
43509-60015 |
— | ||
|
43510
|
43510
43510-60070 Hub And Brake Drum Assy, Front Axle, RhFRONT AXLE, RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
43510-60070 |
US $190.74 |
||
|
43510A
|
43510A
90311-62001 Seal, Oil[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90311-62001 |
from US $13.44 |
||
|
43510B
|
43510B
90368-49084 Bearing (For Axle Shaft Inner)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90368-49084 |
from US $52.97 |
||
|
43510C
|
43510C
90368-45087 Bearing (For Axle Shaft Outer)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90368-45087 |
from US $42.54 |
||
|
43510D
|
43510D
90214-42030 Washer, Claw (For Rear Axle Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90214-42030 |
from US $2.68 |
||
|
43512B
|
43512B
43512-60030
Drum Sub-Assy, Front Brake
[08.1987 - 01.1990] BJ60,FJ62,HJ60..GEN |
43512-60030 |
— | ||
| replacement | |||||
|
43512B
|
43512B
43512-60070
Drum, Brake
[08.1987 - 01.1990] BJ60,FJ62,HJ60..GEN |
43512-60070 |
— | ||
|
43520
|
43520
43510-60070 Hub And Brake Drum Assy, Front Axle, RhFRONT AXLE, RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
43510-60070 |
US $190.74 |
||
|
43521
|
43521
43521-60011 Nut, Front Wheel Adjusting[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
43521-60011 |
from US $5.30 |
||
|
43523
|
43523
90215-42025 Washer, Front Wheel Adjusting Lock[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90215-42025 |
from US $1.86 |
||
|
43530
|
43530
43530-69017
Hub Assy, Free Wheel
[08.1987 - 03.1990] BJ60,FJ62,HJ6#..ARL,GEN |
43530-69017 |
— | ||
| replacement | |||||
|
43530
|
43530
43530-69055 Hub Assy, Free Wheel[08.1987 - 03.1990] BJ60,FJ62,HJ6#..ARL,GEN |
43530-69055 |
US $411.84 |
||
|
43531
|
43531
43531-60010 Gasket, Free Wheel Hub(manual free-wheel hub) [08.1987 - 03.1990] BJ60,FJ62,HJ6#..ARL,GEN |
43531-60010 |
from US $1.75 |
||
|
43532
|
43532
43532-60010 Ring, Free Wheel Hub[08.1987 - 03.1990] BJ60,FJ62,HJ6#..ARL,GEN |
43532-60010 |
from US $2.81 |
||
|
9011906024
|
9011906024
90119-06024
BOLTWWASHER
|
90119-06024 |
— | ||
| replacement | |||||
|
9011906024
|
9011906024
91641-80616 BOLTWWASHER |
91641-80616 |
from US $0.80 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.72 |
||
|
9017608030
|
9017608030
90176-08030 NUT |
90176-08030 |
from US $1.29 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
