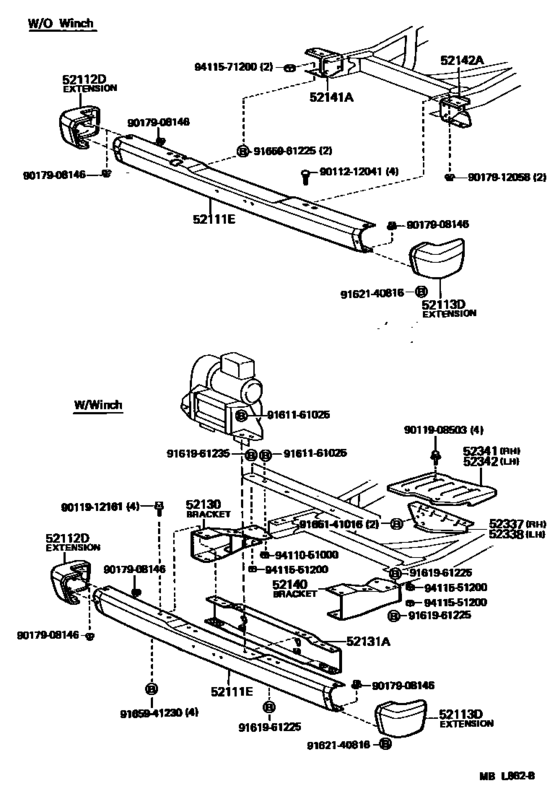

Front Bumper & Bumper Stay ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52111E
|
52111E
52111-90A02
Bar, Front Bumper
[08.1987 - 03.1992] FJ62..STD..ME;FJ62,HJ61..5F..VX..ARL;BJ60,FJ62,HJ6#..(GX,STD)..(ARL,GEN) |
52111-90A02 |
— | ||
|
52111E
|
52111E
52111-90A04
Bar, Front Bumper
[08.1987 - 03.1992] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN W(WINCH) |
52111-90A04 |
— | ||
|
52112D
|
52112D
52102-90A00 Extension, Front Bumper, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52102-90A00 |
from US $48.32 |
||
|
52113D
|
52113D
52103-90A00 Extension, Front Bumper, Lh[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52103-90A00 |
from US $44.90 |
||
|
52130
|
52130
52130-90A00
Bracket Assy, Front Bumper Side Mounting, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
52130-90A00 |
— | ||
|
52131A
|
52131A
52131-90A00
Reinforcement, Front Bumper
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
52131-90A00 |
— | ||
|
52140
|
52140
52140-90A00
Bracket Assy, Front Bumper Side Mounting, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
52140-90A00 |
— | ||
|
52141A
|
52141A
52141-60050
Arm, Front Bumper, Upper Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52141-60050 |
— | ||
|
52142A
|
52142A
52142-60040
Arm, Front Bumper, Upper Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
52142-60040 |
— | ||
|
52337
|
52337
52337-90A01
Stay, Front Bumper Step, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
52337-90A01 |
— | ||
|
52338
|
52338
52338-90A01
Stay, Front Bumper Step, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
52338-90A01 |
— | ||
|
52341
|
52341
52341-90A02
Step, Front Bumper, Rh
[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..(GEN,ME) |
52341-90A02 |
— | ||
|
52342
|
52342
52342-90A02
Step, Front Bumper, Lh
[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..(GEN,ME) |
52342-90A02 |
— | ||
|
9011212041
|
9011212041
90112-12041 Bolt, Round Head Square Neck(For Front Bumper) |
90112-12041 |
from US $2.22 |
||
|
9011908503
|
9011908503
90119-08503 BOLT |
90119-08503 |
from US $1.84 |
||
|
9011912161
|
9011912161
90119-12161
New Genuine Part
|
90119-12161 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017912058
|
9017912058
90179-12058 Nut |
90179-12058 |
US $3.40 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9161961225
|
9161961225
91619-61225
Bolt, Hexagon(For Rear Caliper)
|
91619-61225 |
— | ||
| replacement | |||||
|
9161961225
|
9161961225
91619-B1225 Bolt, Hexagon(For Rear Caliper) |
91619-B1225 |
US $2.87 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9162140816
|
9162140816
91621-40816 BOLTWWASHER |
91621-40816 |
from US $0.97 |
||
|
9165141016
|
9165141016
91651-41016 Bolt(For Transaxle & Engine Setting) |
91651-41016 |
US $2.62 |
||
|
9165941230
|
9165941230
91659-41230
New Genuine Part
|
91659-41230 |
— | ||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9411571200
|
9411571200
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-71200 |
from US $0.95 |
||
