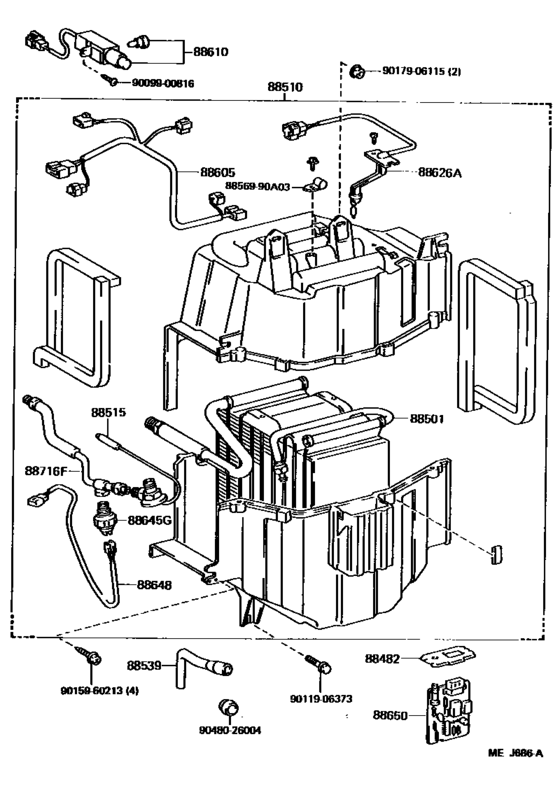

Heating & Air Conditioning - Cooler Unit ([08.1987 - ] FRONT COOLER (8708- )GEN,ME) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88482
|
88482
88482-90A00
Cap, Cooler
[08.1987 - 01.1990] BJ60,HJ6# |
88482-90A00 |
— | ||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[08.1987 - 01.1990] FJ62,HJ60..HRF..GX..GEN FRONT; FJ62..ME;BJ60,HJ60..LHD..SOB;FJ62..LHD..STD..GEN FRONT |
88501-90A07 |
— | ||
|
88510
|
88510
88510-90A04
Unit Assy, Cooler
[08.1987 - 03.1992] HJ60..LHD..STD;BJ60,FJ62..LHD..GEN W(HEATER & SINGLE AIR CONDITIONER,FRONT |
88510-90A04 |
— | ||
|
88510
|
88510
88510-90A05
Unit Assy, Cooler
[08.1987 - 03.1992] FJ62..STD..ME;FJ62..LHD..GEN;BJ60,HJ60..LHD..SOB W(SINGLE AIR CONDITIONER),FRONT |
88510-90A05 |
— | ||
|
88515
|
88515
88515-87004
Valve, Cooler Expansion
[08.1987 - 01.1990] FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN); FJ62..ME;HJ60..SOB;BJ60,HJ61..SRF;FJ62..STD..(ARL,GEN);FJ62,HJ60..SRF..GX..ARL |
88515-87004 |
— | ||
|
88539
|
88539
88539-90A00
Hose, Cooler Unit Drain, No.1
[08.1987 - 01.1990] FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) FRONT; FJ62..ME;HJ60..SOB;BJ60,HJ61..SRF;FJ62..STD..(ARL,GEN);FJ62,HJ60..SRF..GX..ARL FRONT |
88539-90A00 |
— | ||
|
88605
|
88605
88605-90A09
Harness Sub-Assy, Cooler Wiring, No.1
[08.1987 - 03.1992] BJ60,FJ62..GEN;HJ60..LHD..STD W(HEATER & SINGLE AIR CONDITI0NER),FRONT |
88605-90A09 |
— | ||
|
88605
|
88605
88605-90A10
Harness Sub-Assy, Cooler Wiring, No.1
[08.1987 - 03.1992] BJ60;FJ62..GEN;FJ62..STD..ME;HJ60..LHD..SOB W(SINGLE AIR CONDITIONER),FRONT |
88605-90A10 |
— | ||
|
88610
|
88610
88610-90A07
Switch, Cooler
[08.1987 - 01.1990] FJ62,HJ60..HRF..GEN FRONT; FJ62..ME;BJ60,HJ60..LHD..SOB FRONT |
88610-90A07 |
— | ||
|
88626A
|
88626A
88626-90A01
Holder, Thermistor
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
88626-90A01 |
— | ||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN,ME |
88645-30250 |
— | ||
|
88648
|
88648
88648-90A00
Wiring, Cooler, No.1
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
88648-90A00 |
— | ||
|
88650
|
88650
88650-90A03
Amplifier Assy, Cooler Stabilizer
[08.1987 - 01.1990] BJ60;HJ60..5F..SOB;HJ60..LHD..STD FRONT; HJ6#..LUB;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
88650-90A03 |
— | ||
|
88716F
|
88716F
88716-90A27
Pipe, Cooler Refrigerant Liquid, F
[08.1987 - 01.1990] FJ62..ME;BJ60,HJ60..LHD..SOB |
88716-90A27 |
— | ||
|
8856990A03
|
8856990A03
88569-90A03
Clamp (for Cooler Relay)
|
88569-90A03 |
— | ||
|
9009900816
|
9009900816
90099-00816
New Genuine Part
|
90099-00816 |
— | ||
|
9011906373
|
9011906373
90119-06373 New Genuine Part |
90119-06373 |
US $1.79 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.12 |
