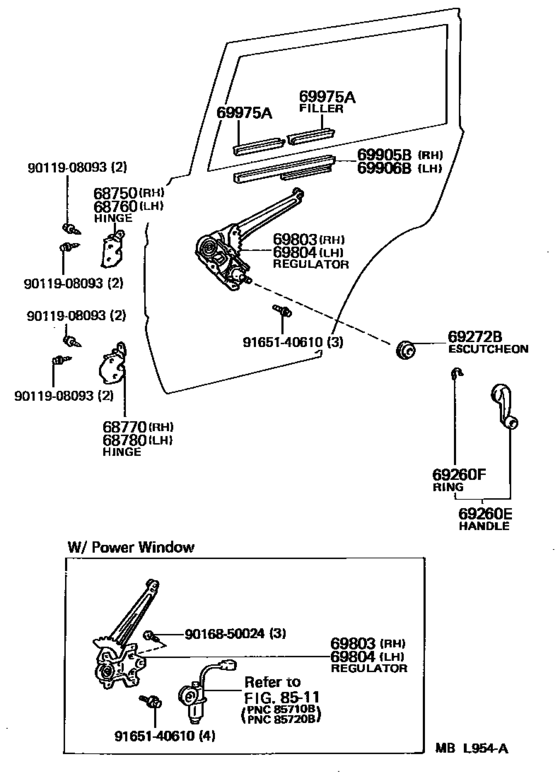

Rear Door Window Regulator & Hinge ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68710-30080
Hinge Assy, Rear Door, Upper Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
68710-30080 |
— | ||
|
68760
|
68760
68720-30020
Hinge Assy, Rear Door, Upper Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
68720-30020 |
— | ||
|
68770
|
68770
68730-14020
Hinge Assy, Front Door, Lower Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
68730-14020 |
— | ||
|
68780
|
68780
68740-14020
Hinge Assy, Front Door, Lower Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
68740-14020 |
— | ||
|
69260E
|
69260E
69260-12010-46 Handle Assy, Front Door Window Regulator[08.1987 - 01.1990] BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD BROWN,TRIM4# |
69260-12010-46 |
US $21.34 |
||
|
69260F
|
69260F
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[08.1987 - 03.1992] BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD |
90520-01002 |
— | ||
| replacement | |||||
|
69260F
|
69260F
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[08.1987 - 03.1992] BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD |
90520-01274 |
from US $0.91 |
||
|
69272B
|
69272B
69285-22010-08 Escutcheon, Window Regulator Handle[08.1987 - 03.1992] BJ60,FJ62,HJ60..STD NATURAL WHITE,TRIM4#; FJ62,HJ61..GX;FJ62..VX..GEN;BJ60,HJ60..GX,VX NATURAL WHITE,TRIM1#,4# |
69285-22010-08 |
from US $1.71 |
||
|
69803
|
69803
69830-90A01
Regulator Sub-Assy, Rear Door Window, Rh
[08.1987 - 03.1992] BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD |
69830-90A01 |
— | ||
|
69804
|
69804
69840-90A01
Regulator Sub-Assy, Rear Door Window, Lh
[08.1987 - 03.1992] BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD |
69840-90A01 |
— | ||
|
69905B
|
69905B
69905-90A03
Channel Sub-Assy, Rear Door Glass, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
69905-90A03 |
— | ||
|
69906B
|
69906B
69906-90A03
Channel Sub-Assy, Rear Door Glass, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
69906-90A03 |
— | ||
|
69975A
|
69975A
69973-90A00
Filler, Rear Door Glass Channel, No.2
[08.1987 - 03.1992] BJ60,FJ62,HJ6# FRONT |
69973-90A00 |
— | ||
|
69975A
|
69975A
69975-90A00
Filler, Rear Door Glass Channel
[08.1987 - 03.1992] BJ60,FJ62,HJ6# REAR |
69975-90A00 |
— | ||
| replacement | |||||
|
69975A
|
69975A
69971-60020 Filler, Front Door Glass Channel[08.1987 - 03.1992] BJ60,FJ62,HJ6# REAR |
69971-60020 |
from US $9.22 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.20 |
||
|
9016850024
|
9016850024
90168-50024
New Genuine Part
|
90168-50024 |
— | ||
| replacement | |||||
|
9016850024
|
9016850024
90168-50013 SCREW |
90168-50013 |
US $3.05 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
