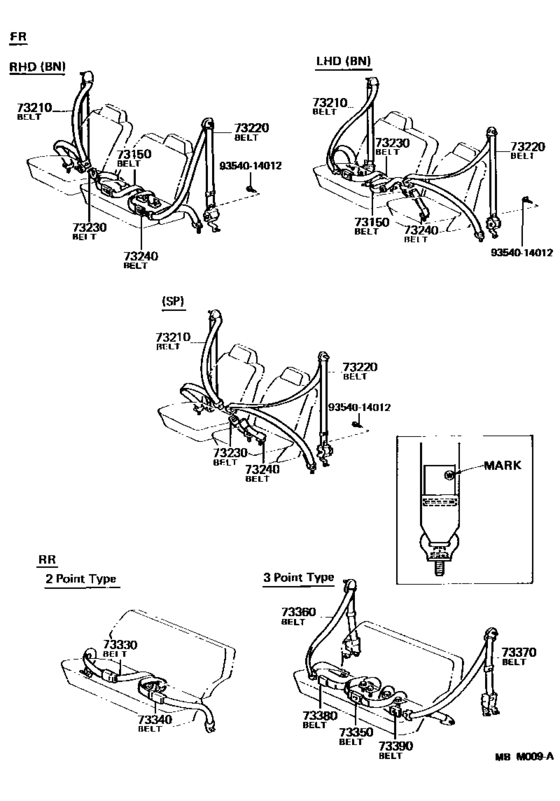

Seat Belt ([08.1987 - ] (8708- )GEN,ME) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73150
|
73150
73150-90A13-06 Belt Assy, Front Seat Lap Type, CenterFRONT SEAT LAP TYPE, CENTER [08.1987 - 01.1990] BJ60,HJ60..LHD..STD SEPIA BROWN,TRIM4# |
73150-90A13-06 |
US $136.86 |
||
| replacement | |||||
|
73150
|
73150
73150-90A13-03 Belt Assy, Front Seat Lap Type, CenterFRONT SEAT LAP TYPE, CENTER [08.1987 - 01.1990] BJ60,HJ60..LHD..STD SEPIA BROWN,TRIM4# |
73150-90A13-03 |
US $136.86 |
||
|
73210
|
73210
73210-90A23-06 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.1987 - 11.1987] BJ60..RHD;FJ62..VX..GEN;HJ60..LUB..GEN;FJ62..LHD..5F..LUB..GEN;FJ62..LHD..(4F,4FC) ..(GX,STD);BJ60,FJ62..LHD..5F..SOB..(GX,STD) SEPIA BROWN,TRIM4#; BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKL=PUSH TYPE,SEPIA BROWN,TRIM4# |
73210-90A23-06 |
US $331.97 |
||
| replacement | |||||
|
73210
|
73210
73210-90A22-03
Belt Assy, Front Seat Outer, Rh
[08.1987 - 11.1987] BJ60..RHD;FJ62..VX..GEN;HJ60..LUB..GEN;FJ62..LHD..5F..LUB..GEN;FJ62..LHD..(4F,4FC) ..(GX,STD);BJ60,FJ62..LHD..5F..SOB..(GX,STD) SEPIA BROWN,TRIM4#; BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKL=PUSH TYPE,SEPIA BROWN,TRIM4# |
73210-90A22-03 |
— | ||
|
73210
|
73210
73210-90A25-06 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.1987 - 11.1987] BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKL=SLIDE TYPE,SEPIA BROWN,TRIM4# |
73210-90A25-06 |
US $336.34 |
||
| replacement | |||||
|
73210
|
73210
73210-90A25-03 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.1987 - 11.1987] BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKL=SLIDE TYPE,SEPIA BROWN,TRIM4# |
73210-90A25-03 |
US $336.34 |
||
|
73210
|
73210
73210-90A27-06 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKL=SLIDE TYPE & W(CENTER BELT),SEPIA BROWN,TRIM4# |
73210-90A27-06 |
US $336.34 |
||
|
73220
|
73220
73220-90A12-06 Belt Assy, Front Seat Outer, LhFRONT SEAT OUTER, LH [08.1987 - 11.1987] BJ60..RHD;FJ62..VX..GEN;HJ60..LUB..GEN;FJ62..LHD..5F..LUB..GEN;FJ62..LHD..(4F,4FC) ..(GX,STD);BJ60,FJ62..LHD..5F..SOB..(GX,STD) SEPIA BROWN,TRIM4#; BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKLE=PUSH TYPE,SEPIA BROWN,TRIM4# |
73220-90A12-06 |
US $331.97 |
||
| replacement | |||||
|
73220
|
73220
73220-90A11-03
Belt Assy, Front Seat Outer, Lh
[08.1987 - 11.1987] BJ60..RHD;FJ62..VX..GEN;HJ60..LUB..GEN;FJ62..LHD..5F..LUB..GEN;FJ62..LHD..(4F,4FC) ..(GX,STD);BJ60,FJ62..LHD..5F..SOB..(GX,STD) SEPIA BROWN,TRIM4#; BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKLE=PUSH TYPE,SEPIA BROWN,TRIM4# |
73220-90A11-03 |
— | ||
|
73220
|
73220
73220-90A14-06 Belt Assy, Front Seat Outer, LhFRONT SEAT OUTER, LH [08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKLE=SLIDE TYPE,SEPIA BROWN,TRIM4# |
73220-90A14-06 |
US $336.34 |
||
| replacement | |||||
|
73220
|
73220
73220-90A14-03 Belt Assy, Front Seat Outer, LhFRONT SEAT OUTER, LH [08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKLE=SLIDE TYPE,SEPIA BROWN,TRIM4# |
73220-90A14-03 |
US $336.34 |
||
|
73230
|
73230
73230-90A19-06
Belt Assy, Front Seat Inner
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..(GX,STD)..GEN BUCKL = PUSH TYPE & W(BENCH SEAT),SEPIA BROWN,TRIM4# |
73230-90A19-06 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-90A19-13
Belt Assy, Front Seat Inner
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..(GX,STD)..GEN BUCKL = PUSH TYPE & W(BENCH SEAT),SEPIA BROWN,TRIM4# |
73230-90A19-13 |
— | ||
|
73230
|
73230
73230-90A23-06 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.1987 - 11.1987] BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKL = SLIDE TYPE,SEPIA BROWN,TRIM4# |
73230-90A23-06 |
US $75.71 |
||
| replacement | |||||
|
73230
|
73230
73230-90A23-03
Belt Assy, Front Seat Inner, Rh
[08.1987 - 11.1987] BJ60..LHD..GEN;FJ62..RHD..GEN;HJ60..STD..GEN BUCKL = SLIDE TYPE,SEPIA BROWN,TRIM4# |
73230-90A23-03 |
— | ||
|
73230
|
73230
73230-90A24-06 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKL = SLIDE TYPE & W(CENTER BELT),SEPIA BROWN,TRIM4# |
73230-90A24-06 |
US $75.71 |
||
| replacement | |||||
|
73230
|
73230
73230-90A24-03 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKL = SLIDE TYPE & W(CENTER BELT),SEPIA BROWN,TRIM4# |
73230-90A24-03 |
US $75.71 |
||
|
73230
|
73230
73240-90A17-06 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..(GX,STD)..GEN BUCKL = SLIDE TYPE & W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
73240-90A17-06 |
US $74.26 |
||
| replacement | |||||
|
73230
|
73230
73240-90A17-13
Belt Assy, Front Seat Inner, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..(GX,STD)..GEN BUCKL = SLIDE TYPE & W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
73240-90A17-13 |
— | ||
|
73240
|
73240
73230-90A19-06
Belt Assy, Front Seat Inner
[08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKLE=PUSH TYPE,SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..GEN BUCKLE=PUSH TYPE & W(BENCH SEAT),SEPIA BROWN,TRIM4# |
73230-90A19-06 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-90A19-13
Belt Assy, Front Seat Inner
[08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKLE=PUSH TYPE,SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..RHD..GEN BUCKLE=PUSH TYPE & W(BENCH SEAT),SEPIA BROWN,TRIM4# |
73230-90A19-13 |
— | ||
|
73240
|
73240
73230-90A23-06 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKLE=SLIDE TYPE,SEPIA BROWN,TRIM4# |
73230-90A23-06 |
US $75.71 |
||
| replacement | |||||
|
73240
|
73240
73230-90A23-03
Belt Assy, Front Seat Inner, Rh
[08.1987 - 01.1990] BJ60,HJ60..LHD..STD BUCKLE=SLIDE TYPE,SEPIA BROWN,TRIM4# |
73230-90A23-03 |
— | ||
|
73330
|
73330
73330-90A34-06 Belt Assy, Rear Seat Lap Type, Rh[08.1987 - 01.1990] FJ62..(GX,STD)..ME;FJ62..SRF..STD..GEN;BJ60,HJ60..SOB..(GEN,ME) SEPIA BROWN,TRIM4# |
73330-90A34-06 |
US $125.22 |
||
|
73340
|
73340
73330-90A34-06 Belt Assy, Rear Seat Lap Type, Rh[08.1987 - 01.1990] FJ62..(GX,STD)..ME;FJ62..SRF..STD..GEN;BJ60,HJ60..SOB..(GEN,ME) SEPIA BROWN,TRIM4# |
73330-90A34-06 |
US $125.22 |
||
|
73350
|
73350
73330-90A30-06
Belt Assy, Rear Seat Lap Type, Center
[08.1987 - 08.1988] BJ60..LHD..GEN;FJ62,HJ60..RHD..4F SEPIA BROWN,TRIM4#; FJ62..RHD..5F..GEN *NLR,SEPIA BROWN,TRIM4# |
73330-90A30-06 |
— | ||
|
73360
|
73360
73360-90A30-06
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[08.1987 - 08.1988] BJ60..LHD..GEN SEPIA BROWN,TRIM4# |
73360-90A30-06 |
— | ||
|
73370
|
73370
73360-90A30-06
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[08.1987 - 08.1988] BJ60..LHD..GEN SEPIA BROWN,TRIM4# |
73360-90A30-06 |
— | ||
|
73380
|
73380
73380-90A14-06
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[08.1987 - 08.1988] FJ62..RHD..5F..GEN SEPIA BROWN,TRIM4#; HJ6#..RHD..SRF;BJ60..LHD..GEN;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF SEPIA BROWN,TRIM4# |
73380-90A14-06 |
— | ||
|
73390
|
73390
73380-90A14-06
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[08.1987 - 08.1988] FJ62..RHD..5F..GEN SEPIA BROWN,TRIM4#; HJ6#..RHD..SRF;BJ60..LHD..GEN;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF SEPIA BROWN,TRIM4# |
73380-90A14-06 |
— | ||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
