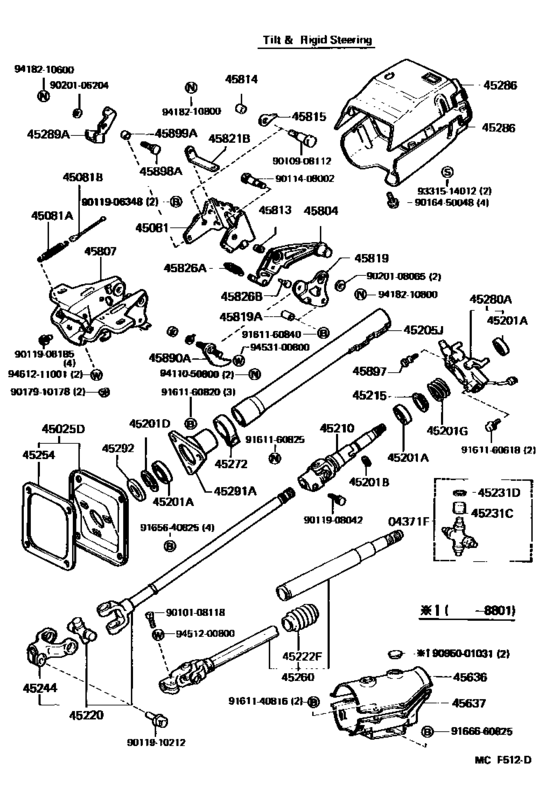

Steering Column & Shaft ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371F
|
04371F
04371-10011 Spider Kit, Universal Joint(For Propeller Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
04371-10011 |
from US $37.01 |
||
|
45025D
|
45025D
45025-60010 Cover Sub-Assy, Steering Column Hole, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN; FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN VENEZUELA CKD SPEC & W(TILT STEERING) |
45025-60010 |
US $43.24 |
||
|
45025D
|
45025D
45025-60020 Cover Sub-Assy, Steering Column Hole, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT & COLLAPSIBLE STEERING) |
45025-60020 |
US $43.24 |
||
|
45081
|
45081
45081-22020 Support Sub-Assy, Tilt Steering[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45081-22020 |
US $56.96 |
||
|
45081A
|
45081A
90506-23009
Spring, Tension(For Tilt Steering)
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
90506-23009 |
— | ||
|
45081B
|
45081B
90945-02034 Cord(For Tilt Steering)[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN L=107.5; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN L=107.5 |
90945-02034 |
US $6.12 |
||
|
45081B
|
45081B
90945-02038
Cord(For Tilt Steering)
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN L=105.5; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN L=105.5 |
90945-02038 |
— | ||
|
45201A
|
45201A
90363-18001 Bearing(For Steering Main Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING),UPR |
90363-18001 |
US $23.41 |
||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN UPR |
90363-18038 |
from US $6.52 |
||
|
45201A
|
45201A
90363-28001 Bearing(For Steering Main Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN CTR |
90363-28001 |
from US $24.11 |
||
|
45201A
|
45201A
90363-30007 Bearing(For Steering Main Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ6# LWR |
90363-30007 |
US $25.16 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ6# T=1.20; FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN T=1.20,VENEZUELA SPEC |
90520-17042 |
from US $0.80 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN T=1.20 |
90520-17269 |
US $2.15 |
||
|
45201D
|
45201D
96151-04700 Ring, Shaft Snap (For Select Spring No.1 Seat)[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN; FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN VENEZUELA CKD SPEC & W(TILT STEERING) |
96151-04700 |
US $3.32 |
||
|
45201D
|
45201D
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT & COLLAPSIBLE STEERING) |
96152-00300 |
US $0.70 |
||
|
45201G
|
45201G
90501-45011 Spring, Compression(For Steering Main Shaft)[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
90501-45011 |
US $7.69 |
||
|
45205J
|
45205J
45205-60070 Tube Sub-Assy, Steering Column[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
45205-60070 |
US $67.41 |
||
|
45205J
|
45205J
45205-60080 Tube Sub-Assy, Steering Column[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN W(TILT STEERING) |
45205-60080 |
US $55.62 |
||
|
45210
|
45210
45210-22050 Shaft Sub-Assy, Steering Main[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45210-22050 |
US $183.46 |
||
|
45215
|
45215
45215-22011 Collar, Main Shaft Bearing Thrust[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45215-22011 |
from US $4.89 |
||
|
45220
|
45220
45220-60050 Shaft Assy, Steering Intermediate[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT & COLLAPSIBLE STEERING) |
45220-60050 |
US $410.59 |
||
|
45220
|
45220
45220-60080 Shaft Sub-Assy, Steering Intermediate, No.2[08.1987 - 03.1992] FJ62,HJ60..GEN;BJ60..LHD..GEN W(TILT STEERING) |
45220-60080 |
US $410.59 |
||
|
45222F
|
45222F
45222-60031 Cover, Steering Gear Dust[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
45222-60031 |
from US $5.91 |
||
|
45231C
|
45231C
37402-10020
Bearing Sub-Assy, Universal Joint Spider
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
37402-10020 |
— | ||
|
45231D
|
45231D
90521-22011 Ring, Hole Snap (For Spider Bearing)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90521-22011 |
US $4.48 |
||
|
45231D
|
45231D
90521-22012 Ring, Hole Snap (For Spider Bearing)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90521-22012 |
US $3.35 |
||
|
45231D
|
45231D
90521-22013 Ring, Hole Snap (For Spider Bearing)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90521-22013 |
US $3.06 |
||
|
45244
|
45244
45244-60020
Yoke, Steering Sliding
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
45244-60020 |
— | ||
|
45254
|
45254
45254-60030
Shield, Steering Column Hole
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
45254-60030 |
— | ||
|
45260
|
45260
45260-60080
Shaft Assy, Steering Intermediate
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
45260-60080 |
— | ||
|
45272
|
45272
45272-35020
Clamp, Steering Column, Lower
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
45272-35020 |
— | ||
|
45280A
|
45280A
45280-60230 Bracket, Steering Column, UpperSTEERING COLUMN, UPPER [08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN |
45280-60230 |
US $235.87 |
||
|
45280A
|
45280A
45280-60240 Bracket, Steering Column, UpperSTEERING COLUMN, UPPER [08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) OR W(TILT & COLLAPSIBLE STEERING) |
45280-60240 |
US $251.89 |
||
| replacement | |||||
|
45280A
|
45280A
45280-60250
Bracket, Steering Column, Upper
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) OR W(TILT & COLLAPSIBLE STEERING) |
45280-60250 |
— | ||
|
45286
|
45286
45286-60110-16
Housing, Steering Column
[08.1987 - 12.1988] BJ60,FJ62,HJ60..LHD..GEN SEPIA BROWN,TRIM4#,UPR |
45286-60110-16 |
— | ||
| replacement | |||||
|
45286
|
45286
45286-60935-03
Housing, Steering Column
[08.1987 - 12.1988] BJ60,FJ62,HJ60..LHD..GEN SEPIA BROWN,TRIM4#,UPR |
45286-60935-03 |
— | ||
|
45286
|
45286
45286-60130-16
Housing, Steering Column
[08.1987 - 12.1988] BJ60,FJ62,HJ60..ME SEPIA BROWN,TRIM4#,UPR; BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) OR W(TILT & COLLAPSIBLE STEERING),SEPIA BROWN,TRIM4#,UPR |
45286-60130-16 |
— | ||
| replacement | |||||
|
45286
|
45286
45286-60130-03
Housing, Steering Column
[08.1987 - 12.1988] BJ60,FJ62,HJ60..ME SEPIA BROWN,TRIM4#,UPR; BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) OR W(TILT & COLLAPSIBLE STEERING),SEPIA BROWN,TRIM4#,UPR |
45286-60130-03 |
— | ||
|
45286
|
45286
45287-60080-16 Housing, Steering ColumnSTEERING COLUMN [08.1987 - 12.1988] BJ60,FJ62,HJ60..LHD..GEN SEPIA BROWN,TRIM4#,LWR |
45287-60080-16 |
US $27.08 |
||
| replacement | |||||
|
45286
|
45286
45286-60935-03
Housing, Steering Column
[08.1987 - 12.1988] BJ60,FJ62,HJ60..LHD..GEN SEPIA BROWN,TRIM4#,LWR |
45286-60935-03 |
— | ||
|
45286
|
45286
45287-60090-16
Housing, Steering Column
[08.1987 - 12.1988] BJ60,FJ62,HJ60..ME SEPIA BROWN,TRIM4#,LWR; BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) OR W(TILT & COLLAPSIBLE STEERING),SEPIA BROWN,TRIM4#,LWR |
45287-60090-16 |
— | ||
| replacement | |||||
|
45286
|
45286
45287-60090-03
Housing, Steering Column
[08.1987 - 12.1988] BJ60,FJ62,HJ60..ME SEPIA BROWN,TRIM4#,LWR; BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) OR W(TILT & COLLAPSIBLE STEERING),SEPIA BROWN,TRIM4#,LWR |
45287-60090-03 |
— | ||
|
45289A
|
45289A
45289-22020 Support, Steering Column Cover[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45289-22020 |
US $6.99 |
||
|
45291A
|
45291A
45291-35020
Support, Steering Column Tube
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
45291-35020 |
— | ||
|
45292
|
45292
45292-35030
Seal, Main Shaft Lower Dust
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN; FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN VENEZUELA CKD SPEC & W(TILT STEERING) |
45292-35030 |
— | ||
|
45292
|
45292
45292-60030
Seal, Main Shaft Lower Dust
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT & COLLAPSIBLE STEERING) |
45292-60030 |
— | ||
|
45636
|
45636
45636-60080 Protector, Intermediate Link Joint, UpperINTERMEDIATE LINK JOINT, UPPER [08.1987 - 01.1990] BJ60,HJ60..LHD |
45636-60080 |
US $18.78 |
||
|
45637
|
45637
45637-60060 Protector, Inter Link Joint, Lwr No.1INTER LINK JOINT, LWR NO.1 [08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD |
45637-60060 |
US $24.32 |
||
|
45804
|
45804
45804-22010 Lever Sub-Assy, Steering Tilt[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45804-22010 |
US $29.56 |
||
|
45807
|
45807
45807-60030 Bracket Sub-Assy, Steering Column Upper Support[08.1987 - 01.1990] BJ60,HJ60..GEN;FJ62..RHD..GEN;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62..5F..SOB.. GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45807-60030 |
US $75.71 |
||
|
45813
|
45813
45813-22010
Collar, Tilt Steering Support, No.1
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN OD=17.996-18.003; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN OD=17.996-18.003 |
45813-22010 |
— | ||
|
45813
|
45813
45813-22020
Collar, Tilt Steering Support, No.1
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN OD=18.003-18.010; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN OD=18.003-18.010 |
45813-22020 |
— | ||
|
45813
|
45813
45813-22030
Collar, Tilt Steering Support, No.1
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN OD=18.010-18.017; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN OD=18.010-18.017 |
45813-22030 |
— | ||
|
45813
|
45813
45813-22040
Collar, Tilt Steering Support, No.1
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN OD=18.017-18.024; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN OD=18.017-18.024 |
45813-22040 |
— | ||
|
45813
|
45813
45813-22050
Collar, Tilt Steering Support, No.1
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN OD=17.989-17.996; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN OD=17.989-17.996 |
45813-22050 |
— | ||
|
45814
|
45814
45814-22010 Collar, Tilt Steering Support, No.2[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN OD=17.982-18.000; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN OD=17.982-18.000 |
45814-22010 |
US $10.83 |
||
|
45814
|
45814
45814-22020 Collar, Tilt Steering Support, No.2[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN OD=18.000-18.018; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN OD=18.000-18.018 |
45814-22020 |
US $12.06 |
||
|
45815
|
45815
45815-22060 Shim, Tilt Steering Support[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN T=0.2; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN T=0.2 |
45815-22060 |
US $3.67 |
||
|
45815
|
45815
45815-22070
Shim, Tilt Steering Support
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN T=0.5; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN T=0.5 |
45815-22070 |
— | ||
|
45815
|
45815
45815-22080
Shim, Tilt Steering Support
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN T=0.8; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN T=0.8 |
45815-22080 |
— | ||
|
45815
|
45815
45815-22090
Shim, Tilt Steering Support
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN T=1.4; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN T=1.4 |
45815-22090 |
— | ||
|
45815
|
45815
45815-22100
Shim, Tilt Steering Support
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN T=1.8; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN T=1.8 |
45815-22100 |
— | ||
|
45819
|
45819
45819-22011 Retainer, Tilt Lever[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45819-22011 |
US $5.59 |
||
|
45819A
|
45819A
90387-08002 Collar(For Tilt Lever Retainer)[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
90387-08002 |
US $2.80 |
||
|
45821B
|
45821B
45821-22010 Reinforce, Tilt Steering Support[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45821-22010 |
US $6.99 |
||
|
45826A
|
45826A
90507-14001
Spring, Tension(For Steering Tilt Lever)
[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
90507-14001 |
— | ||
|
45826B
|
45826B
72538-12010 Pin(For Steering Tilt Lever)[08.1987 - 05.1991] FJ62..LHD..(4FC,5F)..SRF..LUB..GX..GEN; FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
72538-12010 |
US $3.35 |
||
|
45890A
|
45890A
45890-22050 Pawl, Tilt Steering[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45890-22050 |
US $12.75 |
||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
45897-12030 |
US $8.56 |
||
|
45897
|
45897
45897-14010
Bolt, Hexagon(For Steering Column Bracket)
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) |
45897-14010 |
— | ||
| replacement | |||||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GEN W(TILT STEERING) |
45897-12030 |
US $8.56 |
||
|
45898A
|
45898A
45898-22010 Bolt, Tilt Steering Support Stopper[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45898-22010 |
US $5.59 |
||
|
45899A
|
45899A
45899-22020 Cover, Tilt Steering Support Stopper[08.1987 - 01.1990] FJ62,HJ60..RHD..GEN; HJ60..5F;BJ60,HJ61;FJ62..ARL,ME;HJ60..LHD..4F;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN ;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
45899-22020 |
US $5.59 |
||
|
9010108118
|
9010108118
90101-08118 Bolt, Hexagon(For Steering Sliding Yoke Set) |
90101-08118 |
US $2.18 |
||
| replacement | |||||
|
9010108118
|
9010108118
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.43 |
||
|
9010908112
|
9010908112
90109-08112 New Genuine Part |
90109-08112 |
US $1.49 |
||
|
9011408002
|
9011408002
90114-08002 New Genuine Part |
90114-08002 |
US $3.14 |
||
|
9011906348
|
9011906348
90119-06348
New Genuine Part
|
90119-06348 |
— | ||
| replacement | |||||
|
9011906348
|
9011906348
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.93 |
||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9011910212
|
9011910212
90119-10212
Bolt (For Transmission Control Cable Bracket)
|
90119-10212 |
— | ||
| replacement | |||||
|
9011910212
|
9011910212
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.84 |
||
|
9017910178
|
9017910178
90179-10178 New Genuine Part |
90179-10178 |
US $1.75 |
||
|
9020106204
|
9020106204
90201-06204 Washer, Plate(For Steering Tilt Lever) |
90201-06204 |
US $2.33 |
||
|
9020108065
|
9020108065
90201-08065 Washer, Plate(For Control Select Lever) |
90201-08065 |
US $1.08 |
||
|
9095001031
|
9095001031
90950-01031
Plug, Hole(For Rear End Plate)
|
90950-01031 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9165640825
|
9165640825
91656-40825
New Genuine Part
|
91656-40825 |
— | ||
| replacement | |||||
|
9165640825
|
9165640825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9166660825
|
9166660825
91666-60825
New Genuine Part
|
91666-60825 |
— | ||
| replacement | |||||
|
9166660825
|
9166660825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9418210600
|
9418210600
94182-10600 Nut, Tilt Steering Adjusting, No.1 |
94182-10600 |
US $1.89 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.35 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
