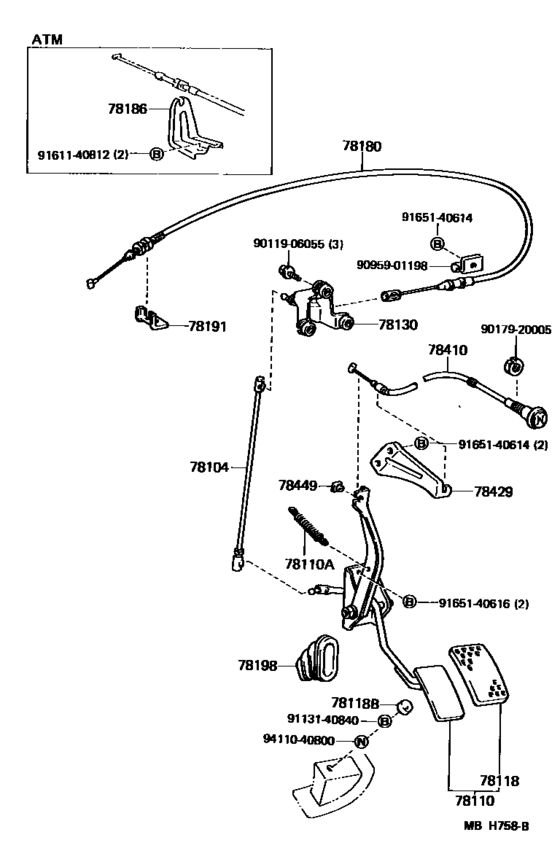

Accelerator Link ([11.1984 - ] (8411- )BJ60) Diagram Toyota LAND CRUISER
- Year
- 1982 - 1985
- Sales region
- U.S.A.
- Frame
- BJ60
- body
- WGG
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 10.1982
- To
- 10.1985
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78104
|
78104
78104-90A01
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1980 - 08.1987] BJ60,HJ60 |
78104-90A01 |
— | ||
|
78110
|
78110
78120-90A03
Rod Assy, Accelerator Pedal
[08.1980 - 11.1984] BJ60 |
78120-90A03 |
— | ||
|
78110
|
78110
78120-90A06 Rod Assy, Accelerator PedalACCELERATOR PEDAL [11.1984 - 08.1987] BJ60,HJ60 |
78120-90A06 |
US $126.67 |
||
|
78110A
|
78110A
90506-12262
Spring (For Accelerator Pedal Rod)
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90506-12262 |
— | ||
|
78118
|
78118
78111-95110 Pedal, Accelerator[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
78111-95110 |
from US $8.42 |
||
|
78118B
|
78118B
78118-90K00
Stopper, Accelerator Pedal
[11.1984 - 04.1985] BJ60 |
78118-90K00 |
— | ||
| replacement | |||||
|
78118B
|
78118B
45619-14010 Cover, Knuckle Stopper[11.1984 - 04.1985] BJ60 |
45619-14010 |
US $9.68 |
||
|
78130
|
78130
78160-90A01
Bellcrank Assy, Accelerator
[08.1980 - 11.1984] BJ60 |
78160-90A01 |
— | ||
|
78130
|
78130
78160-90A02
Bellcrank Assy, Accelerator
[11.1984 - 08.1987] BJ60,HJ60 |
78160-90A02 |
— | ||
|
78180
|
78180
78180-90A08
Wire Assy, Accelerator
[05.1982 - 11.1984] BJ60 |
78180-90A08 |
— | ||
|
78180
|
78180
78180-90A15
Wire Assy, Accelerator
[11.1984 - 10.1985] BJ60 |
78180-90A15 |
— | ||
|
78191
|
78191
78183-90A00
Clamp, Accelerator Control Cable
[08.1980 - 10.1985] BJ60 |
78183-90A00 |
— | ||
|
78198
|
78198
78199-90352
Boot, Accelerator Connecting Rod
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
78199-90352 |
— | ||
|
78410
|
78410
78410-90A02
Cable Assy, Throttle Control
[11.1984 - 08.1987] BJ60,HJ60 |
78410-90A02 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A10
Cable Assy, Throttle Control
[11.1984 - 08.1987] BJ60,HJ60 |
78410-90A10 |
— | ||
|
78410
|
78410
78410-90A03
Cable Assy, Throttle Control
[08.1980 - 11.1984] BJ60,FJ60 |
78410-90A03 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A10
Cable Assy, Throttle Control
[08.1980 - 11.1984] BJ60,FJ60 |
78410-90A10 |
— | ||
|
78429
|
78429
78471-90A00
Bracket, Throttle Rod
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
78471-90A00 |
— | ||
|
78449
|
78449
78449-90300
Guide, Throttle Wire
[08.1980 - 07.1985] BJ60,FJ60 |
78449-90300 |
— | ||
|
9011906055
|
9011906055
90119-06055 New Genuine Part |
90119-06055 |
US $1.89 |
||
|
9017920005
|
9017920005
90179-20005
New Genuine Part
|
90179-20005 |
— | ||
|
9095901198
|
9095901198
90959-01198
New Genuine Part
|
90959-01198 |
— | ||
|
9113140840
|
9113140840
91131-40840
Bolt, Accelerator Pedal Stopper
|
91131-40840 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
