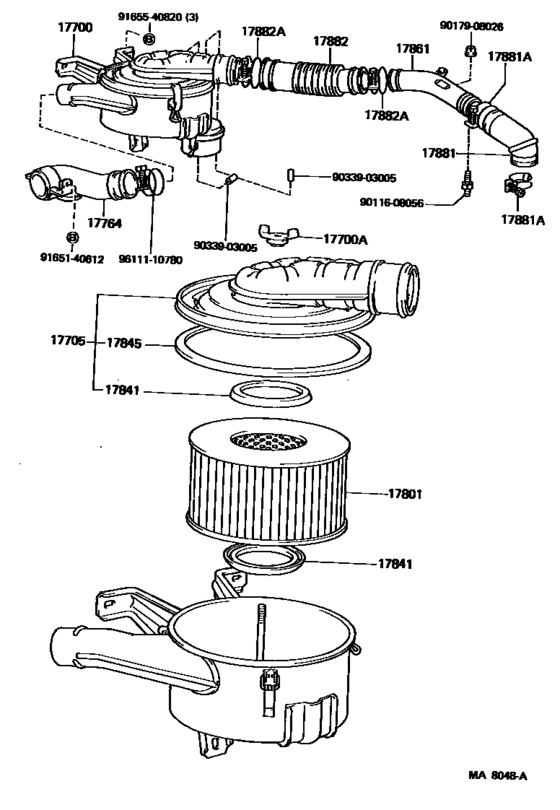

Air Cleaner ([11.1984 - 10.1985] (8411-8510)3B) Diagram Toyota LAND CRUISER
- Year
- 1982 - 1985
- Sales region
- U.S.A.
- Frame
- BJ60
- body
- WGG
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 10.1982
- To
- 10.1985
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-68010
Cleaner Assy, Air
[08.1980 - 10.1982] 3B..BJ60 |
17700-68010 |
— | ||
| replacements | |||||
|
17700
|
17700
17700-68140
Cleaner Assy, Air
[08.1980 - 10.1982] 3B..BJ60 |
17700-68140 |
— | ||
|
17700
|
17700
90339-03005 Plug, No.1[08.1980 - 10.1982] 3B..BJ60 |
90339-03005 |
from US $1.73 |
||
|
17700
|
17700
17700-68011 Cleaner Assy, AirAIR [10.1982 - 11.1984] 3B..BJ60 |
17700-68011 |
US $366.91 |
||
| replacements | |||||
|
17700
|
17700
17700-68140
Cleaner Assy, Air
[10.1982 - 11.1984] 3B..BJ60 |
17700-68140 |
— | ||
|
17700
|
17700
90339-03005 Plug, No.1[10.1982 - 11.1984] 3B..BJ60 |
90339-03005 |
from US $1.73 |
||
|
17700
|
17700
17700-68140
Cleaner Assy, Air
[11.1984 - 10.1985] 3B..BJ60 |
17700-68140 |
— | ||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
90175-08008 |
from US $2.45 |
||
|
17705
|
17705
17705-68010
Cap Sub-Assy, Air Cleaner
[08.1980 - 11.1984] 3B..BJ60 |
17705-68010 |
— | ||
| replacements | |||||
|
17705
|
17705
17705-68100
Cap Sub-Assy, Air Cleaner
[08.1980 - 11.1984] 3B..BJ60 |
17705-68100 |
— | ||
|
17705
|
17705
90339-03005 Plug, No.1[08.1980 - 11.1984] 3B..BJ60 |
90339-03005 |
from US $1.73 |
||
|
17705
|
17705
17705-68100
Cap Sub-Assy, Air Cleaner
[11.1984 - 08.1987] 3B..BJ60; 2H..HJ60 |
17705-68100 |
— | ||
|
17764
|
17764
53207-90A00
Duct, Air Cleaner
[08.1980 - 10.1985] 3B..BJ60 |
53207-90A00 |
— | ||
|
17801
|
17801
17801-66020
Element Sub-Assy, Air Cleaner Filter
[08.1980 - 10.1982] 3B..BJ60 |
17801-66020 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-68020 Element Sub-Assy, Air Cleaner Filter[08.1980 - 10.1982] 3B..BJ60 |
17801-68020 |
from US $56.75 |
||
|
17801
|
17801
17801-68020 Element Sub-Assy, Air Cleaner Filter[10.1982 - 08.1987] 2H..HJ60; 3B..BJ60 |
17801-68020 |
from US $56.75 |
||
|
17841
|
17841
17841-68010 Gasket, Filter Element[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
17841-68010 |
from US $2.80 |
||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[10.1982 - 08.1987] 2H..HJ60 *G,L=933; 3B..BJ60 *G,L=933 |
17845-61011 |
— | ||
|
17845
|
17845
17845-68010
Gasket, Air Cleaner Cap
[08.1980 - 10.1982] 3B..BJ60 |
17845-68010 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[08.1980 - 10.1982] 3B..BJ60 |
17845-61011 |
— | ||
|
17861
|
17861
17885-56010
Connector, Intake Air
[08.1980 - 11.1984] 3B..BJ60 |
17885-56010 |
— | ||
|
17861
|
17861
17885-58070
Connector, Intake Air
[11.1984 - 10.1985] 3B..BJ60 |
17885-58070 |
— | ||
|
17881
|
17881
17881-58010
Hose, Air Cleaner, No.1
[08.1980 - 11.1984] 3B..BJ60 |
17881-58010 |
— | ||
|
17881
|
17881
17881-58090
Hose, Air Cleaner, No.1
[11.1984 - 10.1985] 3B..BJ60 |
17881-58090 |
— | ||
|
17881A
|
17881A
96111-10690 Clamp, Hose[08.1980 - 11.1984] 3B..BJ60 |
96111-10690 |
from US $2.87 |
||
|
17881A
|
17881A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[11.1984 - 10.1985] 3B..BJ60 |
96111-10710 |
from US $2.87 |
||
|
17882
|
17882
17882-58010
Hose, Air Cleaner, No.2
[08.1980 - 11.1984] 3B..BJ60 |
17882-58010 |
— | ||
|
17882
|
17882
17882-58070
Hose, Air Cleaner, No.2
[11.1984 - 10.1985] 3B..BJ60 |
17882-58070 |
— | ||
|
17882A
|
17882A
96111-10690 Clamp, Hose[08.1980 - 11.1984] 3B..BJ60 CONNECTOR,ID=69 |
96111-10690 |
from US $2.87 |
||
|
17882A
|
17882A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[11.1984 - 10.1985] 3B..BJ60 CONNECTOR SIDE,ID=71 |
96111-10710 |
from US $2.87 |
||
|
17882A
|
17882A
96111-10830 Clamp, Hose(For Air Connector)[08.1980 - 10.1985] 3B..BJ60 AIR CLEANER SIDE,ID=83 |
96111-10830 |
from US $3.23 |
||
|
9011608056
|
9011608056
90116-08056 Bolt, Stud(For Manifold Stay) |
90116-08056 |
US $3.32 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
|
9611110780
|
9611110780
96111-10780 Clamp, Hose(For Air Connector) |
96111-10780 |
from US $3.44 |
||
