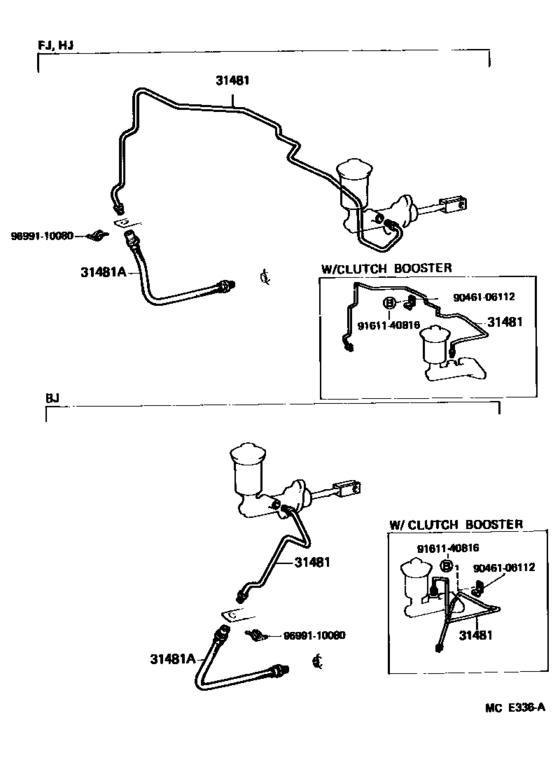

Clutch Pedal & Flexible Hose ([08.1987 - ] (8708- )LHD..MTM) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- GX
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- ME
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-60321 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [08.1987 - 08.1988] BJ60..LHD |
31481-60321 |
US $8.30 |
||
|
31481
|
31481
31481-60331 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [08.1987 - 08.1988] BJ60..LHD W(CLUTCH BOOSTER) |
31481-60331 |
US $9.90 |
||
|
31481A
|
31481A
96812-50240
Hose, Clutch, No.1
[08.1987 - 01.1990] BJ60 |
96812-50240 |
— | ||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $1.65 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.12 |
||
