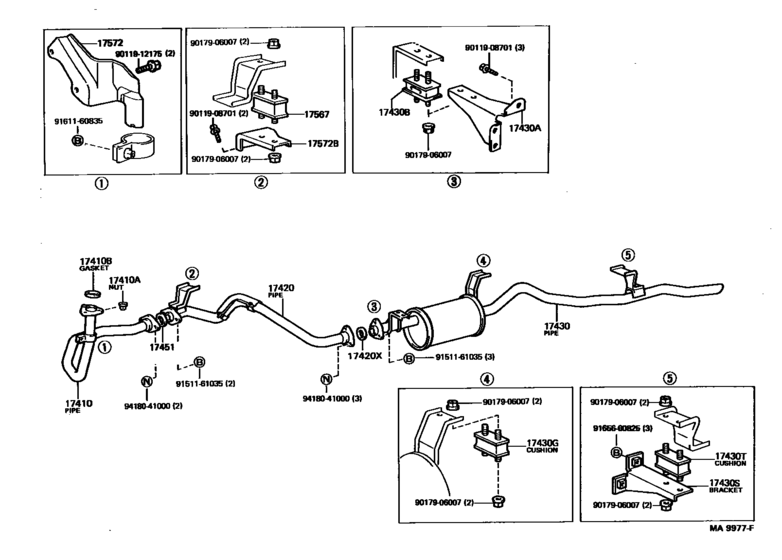

Exhaust Pipe ([08.1987 - ] (8708- )3B) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- GX
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- ME
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-58050
Pipe Assy, Exhaust, Front
[08.1987 - 08.1988] 3B..BJ60 |
17401-58050 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
90179-10070 |
from US $1.25 |
||
|
17410B
|
17410B
90917-06012
Gasket, Exhaust Pipe
[08.1987 - 08.1988] 3B..BJ60 |
90917-06012 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06045 Gasket, Exhaust Pipe[08.1987 - 08.1988] 3B..BJ60 |
90917-06045 |
from US $1.58 |
||
|
17420
|
17420
17420-58230
Pipe Assy, Exhaust, Center
[08.1987 - 01.1990] 3B..BJ60 |
17420-58230 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-58240
Pipe Assy, Exhaust, Center
[08.1987 - 01.1990] 3B..BJ60 |
17420-58240 |
— | ||
|
17420X
|
17420X
90917-06024
Gasket, Exhaust Pipe, Center
[08.1987 - 01.1990] 3B..BJ60 |
90917-06024 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[08.1987 - 01.1990] 3B..BJ60 |
90917-06073 |
from US $5.64 |
||
|
17430
|
17430
17405-58220 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1987 - 01.1990] 3B..BJ60 |
17405-58220 |
US $486.30 |
||
|
17430A
|
17430A
17574-61071
Bracket, Exhaust Tail Pipe(For Front)
[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17574-61071 |
— | ||
|
17430B
|
17430B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17567-61030 |
from US $13.93 |
||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17567-61030 |
from US $13.93 |
||
|
17430S
|
17430S
17574-61060
Bracket, Exhaust Tail Pipe (For Rear)
[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17574-61060 |
— | ||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17567-61030 |
from US $13.93 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1987 - 01.1990] 3B..BJ60 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1987 - 01.1990] 3B..BJ60 |
90917-06045 |
from US $1.58 |
||
|
17567
|
17567
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 01.1990] 3B..BJ60 |
17567-61030 |
from US $13.93 |
||
|
17572
|
17572
17571-58090 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1987 - 08.1988] 3B..BJ60 |
17571-58090 |
US $52.42 |
||
|
17572B
|
17572B
17572-58050 Bracket, Exhaust Pipe Center, FrontEXHAUST PIPE CENTER, FRONT [08.1987 - 01.1990] 3B..BJ60 |
17572-58050 |
US $32.76 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.93 |
||
|
9011912175
|
9011912175
90119-12175 New Genuine Part |
90119-12175 |
US $4.22 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.80 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.93 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
US $1.10 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.78 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.24 |
||
