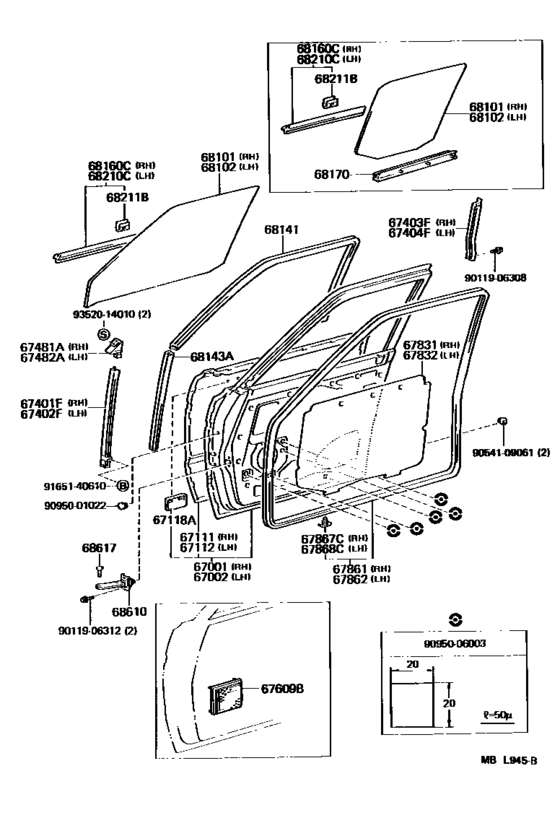

Front Door Panel & Glass ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- GX
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- ME
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-90A44 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [08.1987 - 01.1990] FJ62,HJ60..VX..GEN;BJ60,FJ62,HJ60..RHD..GEN;BJ60,FJ62,HJ60..(GX,STD)..ME; BJ60,FJ62,HJ60..LHD..STD..GEN W(DOOR MIRROR); FJ62..5F..SOB..GX..GEN;HJ60..5F..SRF..GX..GEN W(DOOR MIRROR) |
67001-90A44 |
US $1,000.27 |
||
| replacement | |||||
|
67001
|
67001
67001-90A40
Panel Sub-Assy, Front Door, Rh
[08.1987 - 01.1990] FJ62,HJ60..VX..GEN;BJ60,FJ62,HJ60..RHD..GEN;BJ60,FJ62,HJ60..(GX,STD)..ME; BJ60,FJ62,HJ60..LHD..STD..GEN W(DOOR MIRROR); FJ62..5F..SOB..GX..GEN;HJ60..5F..SRF..GX..GEN W(DOOR MIRROR) |
67001-90A40 |
— | ||
|
67002
|
67002
67002-90A47
Panel Sub-Assy, Front Door, Lh
[08.1987 - 03.1992] FJ62..VX..GEN;BJ60,HJ60..LHD;FJ62..LHD..(GX,STD) |
67002-90A47 |
— | ||
| replacement | |||||
|
67002
|
67002
67002-90A50
Panel Sub-Assy, Front Door, Lh
[08.1987 - 03.1992] FJ62..VX..GEN;BJ60,HJ60..LHD;FJ62..LHD..(GX,STD) |
67002-90A50 |
— | ||
|
67111
|
67111
67111-90A15 Panel, Front Door, Outer Rh[08.1987 - 03.1992] BJ60,HJ6#;FJ62..GX,STD;FJ62..VX..(ARL,GEN) |
67111-90A15 |
US $404.77 |
||
|
67112
|
67112
67112-90A15 Panel, Front Door, Outer Lh[08.1987 - 03.1992] BJ60,HJ6#;FJ62..GX,STD;FJ62..VX..(ARL,GEN) |
67112-90A15 |
US $404.77 |
||
|
67118A
|
67118A
67118-90A02 Retainer, Outer MirrorOUTER MIRROR [08.1987 - 01.1990] BJ60..RHD; BJ60,FJ62,HJ60..LHD..STD..GEN; FJ62,HJ60..RHD..GX..GEN; FJ62,HJ60..RHD..STD..GEN; FJ62..5F..SOB..GX..GEN;HJ60..5F..SRF..GX..GEN; BJ60,HJ6#..ARL,ME;FJ62..(GX,STD)..(ARL,ME);FJ62,HJ60..VX..(ARL,GEN) |
67118-90A02 |
US $46.74 |
||
|
67401F
|
67401F
67401-90A00
Bar Sub-Assy, Front Door Window, Front Rh
[08.1987 - 01.1988] BJ60,FJ62,HJ60..GEN,ME |
67401-90A00 |
— | ||
|
67402F
|
67402F
67402-90A00
Bar Sub-Assy, Front Door Window, Front Lh
[08.1987 - 01.1988] BJ60,FJ62,HJ60..GEN,ME |
67402-90A00 |
— | ||
|
67403F
|
67403F
67403-90A00
Frame Sub-Assy, Front Door, Rear Lower Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
67403-90A00 |
— | ||
|
67404F
|
67404F
67404-90A00
Frame Sub-Assy, Front Door, Rear Lower Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
67404-90A00 |
— | ||
|
67481A
|
67481A
67481-90A00
Seal, Front Door Front Lower Frame, Rh
[08.1987 - 01.1988] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,VX)..(GEN,ME) |
67481-90A00 |
— | ||
|
67482A
|
67482A
67482-90A00
Seal, Front Door Front Lower Frame, Lh
[08.1987 - 01.1988] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,VX)..(GEN,ME) |
67482-90A00 |
— | ||
|
67831
|
67831
67832-90A06
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] BJ60,HJ60..ME;FJ62..STD..ME |
67832-90A06 |
— | ||
| replacement | |||||
|
67831
|
67831
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] BJ60,HJ60..ME;FJ62..STD..ME |
67832-90A04 |
— | ||
|
67831
|
67831
67832-90A07
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] FJ62..(GX,VX)..ME; BJ60..ME;FJ62..STD..ME W(SPEAKER) |
67832-90A07 |
— | ||
| replacement | |||||
|
67831
|
67831
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] FJ62..(GX,VX)..ME; BJ60..ME;FJ62..STD..ME W(SPEAKER) |
67832-90A04 |
— | ||
|
67832
|
67832
67832-90A06
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] BJ60,HJ60..ME;FJ62..STD..ME |
67832-90A06 |
— | ||
| replacement | |||||
|
67832
|
67832
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] BJ60,HJ60..ME;FJ62..STD..ME |
67832-90A04 |
— | ||
|
67832
|
67832
67832-90A07
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] FJ62..(GX,VX)..ME; BJ60..ME;FJ62..STD..ME W(SPEAKER) |
67832-90A07 |
— | ||
| replacement | |||||
|
67832
|
67832
67832-90A04
Cover, Front Door Service Hole, Rh
[08.1987 - 08.1989] FJ62..(GX,VX)..ME; BJ60..ME;FJ62..STD..ME W(SPEAKER) |
67832-90A04 |
— | ||
|
67861
|
67861
67861-90A00
Weatherstrip, Front Door, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
67861-90A00 |
— | ||
|
67862
|
67862
67862-90A00
Weatherstrip, Front Door, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
67862-90A00 |
— | ||
|
67867C
|
67867C
67868-30040 Retainer, Roof Side Rail, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
67868-30040 |
from US $1.05 |
||
|
67868C
|
67868C
67868-30040 Retainer, Roof Side Rail, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
67868-30040 |
from US $1.05 |
||
|
68101
|
68101
68111-90A01
Glass Sub-Assy, Front Door, Rh
[08.1987 - 04.1988] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,VX)..(GEN,ME) *TT,T=4.0 |
68111-90A01 |
— | ||
|
68101
|
68101
68111-90A03
Glass Sub-Assy, Front Door, Rh
[08.1987 - 01.1988] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,VX)..(GEN,ME) *TT,T=4.0,W(*VW) |
68111-90A03 |
— | ||
|
68102
|
68102
68112-90A01
Glass Sub-Assy, Front Door, Lh
[08.1987 - 04.1988] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,VX)..(GEN,ME) *TT,T=4.0 |
68112-90A01 |
— | ||
|
68102
|
68102
68112-90A03
Glass Sub-Assy, Front Door, Lh
[08.1987 - 01.1988] FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,VX)..(GEN,ME) *TT,T=4.0,W(*VW) |
68112-90A03 |
— | ||
|
68141
|
68141
68141-90A03 Run, Front Door Glass[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
68141-90A03 |
from US $59.64 |
||
|
68143A
|
68143A
68143-90A01 Run, Front Door Glass, Lower[08.1987 - 01.1988] BJ60,FJ62,HJ60..GEN,ME |
68143-90A01 |
from US $13.08 |
||
|
68170
|
68170
68170-90A01 Weatherstrip Assy, Front Door Glass, Inner[08.1987 - 03.1992] BJ60,FJ62,HJ60..(GX,VX)..(GEN,ME) |
68170-90A01 |
from US $49.17 |
||
|
68610
|
68610
68610-22010
Check Assy, Front Door
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
68610-22010 |
— | ||
|
68617
|
68617
68617-90A01 Pin(For Front Door Check)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
68617-90A01 |
from US $3.38 |
||
|
9011906308
|
9011906308
90119-06308
New Genuine Part
|
90119-06308 |
— | ||
| replacement | |||||
|
9011906308
|
9011906308
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.97 |
||
|
9011906312
|
9011906312
90119-06312 Bolt |
90119-06312 |
US $1.25 |
||
|
9054109061
|
9054109061
90541-09061
Cushion, Front Door Panel
|
90541-09061 |
— | ||
| replacement | |||||
|
9054109061
|
9054109061
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.65 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $1.96 |
||
|
9095006003
|
9095006003
90950-06003
Protector, Front Side Panel, No.3
|
90950-06003 |
— | ||
| replacement | |||||
|
9095006003
|
9095006003
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $3.05 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9352014010
|
9352014010
93520-14010 New Genuine Part |
93520-14010 |
US $0.52 |
||
