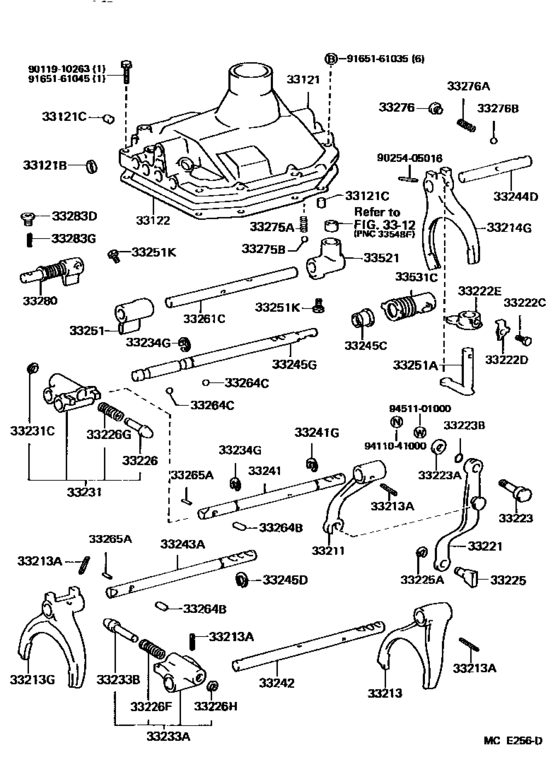

Gear Shift Fork & Lever Shaft (Mtm) ([08.1987 - ] H55F (8708- )5F) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- GX
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- ME
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33121
|
33121
33102-60080 Cover, Manual Transmission Case[08.1987 - 03.1992] BJ60,HJ6#..5F;FJ62..5F..(ARL,GEN) |
33102-60080 |
US $615.89 |
||
|
33121B
|
33121B
96411-11600 Plug[08.1987 - 04.1990] BJ60,FJ62,HJ6#..5F OD=16 |
96411-11600 |
US $4.66 |
||
|
33121B
|
33121B
96411-41200 Plug, Tight, No.1[08.1987 - 04.1990] BJ60,FJ62,HJ6#..5F OD=12 |
96411-41200 |
US $3.58 |
||
|
33121B
|
33121B
96411-41800 Plug, Tight, No.1[08.1987 - 04.1990] BJ60,FJ62,HJ6#..5F OD=18 |
96411-41800 |
from US $1.62 |
||
|
33121C
|
33121C
90250-10214 Pin, Straight(For End Plate)[08.1987 - 04.1990] BJ60,FJ62,HJ6#..MTM L=14,OD=10 |
90250-10214 |
from US $1.35 |
||
|
33121C
|
33121C
90250-10215 Pin(For Transmission Case Cover)[08.1987 - 04.1990] BJ60,FJ62,HJ6#..MTM L=9,OD=9 |
90250-10215 |
US $2.33 |
||
|
33122
|
33122
33122-60010 Gasket, Manual Transmission Case Cover[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
33122-60010 |
US $7.17 |
||
|
33211
|
33211
33211-36011
Fork, Reverse Shift
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33211-36011 |
— | ||
|
33213
|
33213
33212-36020 Fork, Gear Shift, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33212-36020 |
US $66.31 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
90254-05016 |
from US $1.90 |
||
|
33213G
|
33213G
33213-60051 Fork, Gear Shift, No.2[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33213-60051 |
US $122.30 |
||
|
33214G
|
33214G
33214-60021
Fork, 5Th Shift
[08.1987 - 03.1992] BJ60,HJ6#..5F;FJ62..5F..(ARL,GEN) |
33214-60021 |
— | ||
|
33221
|
33221
33201-36030 Arm, Reverse Shift[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
33201-36030 |
US $85.90 |
||
|
33222C
|
33222C
90113-08001 Bolt(For 5Th Shift Arm)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90113-08001 |
US $3.32 |
||
|
33222D
|
33222D
90215-09003
Washer(For 5Th Shift Arm)
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90215-09003 |
— | ||
|
33222E
|
33222E
33222-36030
Arm, 5Th Shift
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33222-36030 |
— | ||
|
33223
|
33223
33223-36020
Pivot, Shift Arm
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
33223-36020 |
— | ||
|
33223A
|
33223A
90201-10092 Washer, Plate(For Cylinder Head Set)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
90201-10092 |
US $1.97 |
||
|
33223B
|
33223B
96711-19010 Ring, O(For Oil Level Gage Guide)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
96711-19010 |
from US $2.20 |
||
|
33225
|
33225
33225-36030
Shoe, Shift Arm
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
33225-36030 |
— | ||
|
33225A
|
33225A
90520-08098
Ring, Shaft Snap(For Shift Arm Shoe)
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM |
90520-08098 |
— | ||
|
33226
|
33226
33226-60010 Plunger, Reverse Shift Return[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33226-60010 |
US $11.79 |
||
|
33226F
|
33226F
90501-14076
Spring, Compression(For 1St & 2Nd Shift Return Plunger)
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90501-14076 |
— | ||
|
33226G
|
33226G
90501-14069 Spring, Compression(For Reverse & 5Th Shift Return Plunger)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90501-14069 |
US $7.51 |
||
|
33226H
|
33226H
90520-07001 Ring, Shaft Snap(For 1St & 2Nd Shift Return Plunger)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90520-07001 |
US $2.77 |
||
|
33231
|
33231
33202-60031 Head, Reverse Shift[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33202-60031 |
US $104.83 |
||
|
33231C
|
33231C
90520-07001 Ring, Shaft Snap(For 1St & 2Nd Shift Return Plunger)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90520-07001 |
US $2.77 |
||
|
33233A
|
33233A
33203-60010 Head, 1St & 2Nd Shift[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33203-60010 |
US $99.01 |
||
|
33233B
|
33233B
33226-60010 Plunger, Reverse Shift Return[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33226-60010 |
US $11.79 |
||
|
33234G
|
33234G
90523-15025 Ring(For Reverse Shift Head)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90523-15025 |
US $2.53 |
||
|
33241
|
33241
33241-60050 Shaft, Reverse Shift Fork[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33241-60050 |
US $60.28 |
||
|
33241G
|
33241G
90523-15025 Ring(For Reverse Shift Head)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90523-15025 |
US $2.53 |
||
|
33242
|
33242
33242-60030 Shaft, Gear Shift Fork, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33242-60030 |
US $60.28 |
||
|
33243A
|
33243A
33243-60071 Shaft, Gear Shift Fork, No.2[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33243-60071 |
US $57.08 |
||
|
33244D
|
33244D
33244-60011
Shaft, 5Th Shift Fork
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33244-60011 |
— | ||
|
33245C
|
33245C
90311-16002 Seal, Oil (For 5Th Shift Arm Shaft)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90311-16002 |
US $3.23 |
||
|
33245D
|
33245D
90520-14002
Ring, Shaft Snap(For 5Th Shift Fork)
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90520-14002 |
— | ||
|
33245G
|
33245G
33245-60032 Shaft, 5Th Shift Arm[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33245-60032 |
US $75.71 |
||
|
33251
|
33251
33251-60031 Lever, Shift & Select[08.1987 - 01.1988] BJ60,FJ62,HJ6#..5F |
33251-60031 |
US $64.65 |
||
|
33251
|
33251
33251-60032 Lever, Shift & Select[01.1988 - 03.1992] BJ60,FJ62,HJ6#..5F |
33251-60032 |
US $64.21 |
||
|
33251A
|
33251A
33251-60022
Lever, Shift, Inner No.1
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33251-60022 |
— | ||
|
33251K
|
33251K
90105-08142
Bolt, Set (For Shift & Select Lever)
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90105-08142 |
— | ||
|
33261C
|
33261C
33261-60021 Shaft, Shift & Select Lever[08.1987 - 01.1988] BJ60,FJ62,HJ6#..5F |
33261-60021 |
US $54.75 |
||
|
33261C
|
33261C
33261-60022 Shaft, Shift & Select Lever[01.1988 - 03.1992] BJ60,FJ62,HJ6#..5F |
33261-60022 |
US $54.60 |
||
|
33264B
|
33264B
90361-10037 Pin, Or Ball, Shift Inter Lock, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM L=17.9 |
90361-10037 |
US $3.93 |
||
|
33264C
|
33264C
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90360-10003 |
from US $1.16 |
||
|
33265A
|
33265A
90361-05001 Roller, No.1 (For Shift Inter Lock )[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90361-05001 |
from US $2.71 |
||
|
33275A
|
33275A
90501-13011 Spring, Compression (For Shift Detent Ball Low Side)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90501-13011 |
US $10.66 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90360-10003 |
from US $1.16 |
||
|
33276
|
33276
90341-10004
Plug, W/head Straight Screw, No.1(For Cylinder Block)
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90341-10004 |
— | ||
|
33276A
|
33276A
90501-10067 Spring, Compression, No.2 (For Shift Detent Ball)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90501-10067 |
US $2.62 |
||
|
33276B
|
33276B
90360-08009 Ball, Reverse Shift Restrict[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90360-08009 |
US $1.40 |
||
|
33280
|
33280
33280-60010 Pin Assy, Reverse Restrict[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33280-60010 |
US $44.41 |
||
|
33283D
|
33283D
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90341-12008 |
from US $3.25 |
||
|
33283G
|
33283G
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
90254-05016 |
from US $1.90 |
||
|
33521
|
33521
33521-60021 Housing, Shift Lever[08.1987 - 01.1988] BJ60,FJ62,HJ6#..5F |
33521-60021 |
US $64.94 |
||
|
33521
|
33521
33521-60022 Housing, Shift Lever[01.1988 - 02.1988] BJ60,HJ6#..5F;FJ62..5F..(ARL,GEN) |
33521-60022 |
US $65.08 |
||
|
33531C
|
33531C
33531-36040 Boot, Dust (For Control Shift Lever)[08.1987 - 03.1992] BJ60,FJ62,HJ6#..5F |
33531-36040 |
US $22.68 |
||
|
9011910263
|
9011910263
90119-10263
New Genuine Part
|
90119-10263 |
— | ||
| replacement | |||||
|
9011910263
|
9011910263
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9025405016
|
9025405016
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set) |
90254-05016 |
from US $1.90 |
||
|
9165161035
|
9165161035
91651-61035 BOLT |
91651-61035 |
US $3.58 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
