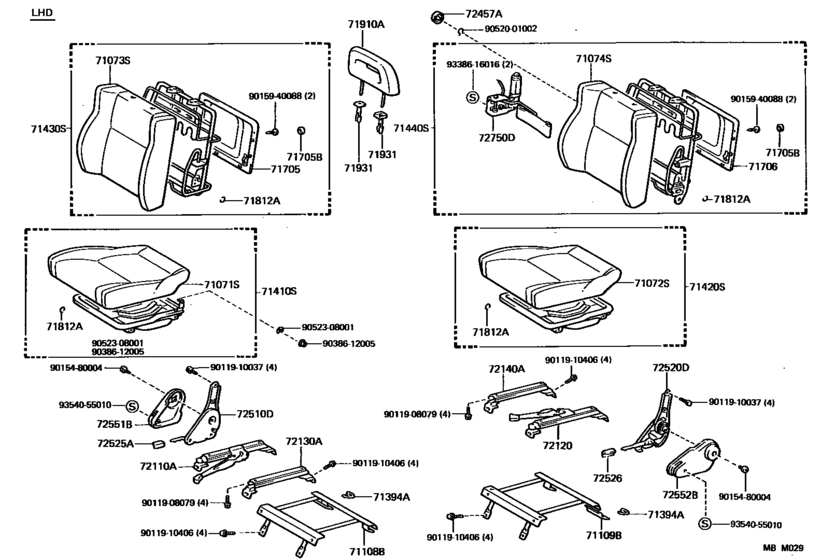

Seat & Seat Track ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- BJ60
- grade
- GX
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- ME
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-90A51-03
Cover, Front Seat Cushion(For Bench Type)
[08.1987 - 01.1990] FJ62..5F..SOB..GX..ME SHADOW GRAY,TRIM1#; BJ60,FJ62,HJ60..SOB..GX..ME SHADOW GRAY,TRIM1# |
71071-90A51-03 |
— | ||
|
71071S
|
71071S
71071-90A51-06
Cover, Front Seat Cushion(For Bench Type)
[08.1987 - 01.1990] FJ62..5F..SOB..GX..ME SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..SOB..GX..ME SEPIA BROWN,TRIM4# |
71071-90A51-06 |
— | ||
|
71072S
|
71072S
71072-90A18-03
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GX;FJ62,HJ61..HRF..GX..ARL SHADOW GRAY,TRIM1#; FJ62..4FC..GX..GEN W(SEPARATE SEAT),SHADOW GRAY,TRIM1#; FJ62..LHD..MTM..GX..GEN W(SEPARATE SEAT),SHADOW GRAY,TRIM1# |
71072-90A18-03 |
— | ||
|
71072S
|
71072S
71072-90A18-06
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GX;FJ62,HJ61..HRF..GX..ARL SEPIA BROWN,TRIM4#; FJ62..4FC..GX..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4#; FJ62..LHD..MTM..GX..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71072-90A18-06 |
— | ||
|
71073S
|
71073S
71073-90A64-03
Cover, Front Seat Back(For Bench Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..SOB..GX..ME SHADOW GRAY,TRIM1#; FJ62..5F..SOB..GX..ME W(HEAD REST),SHADOW GRAY,TRIM1# |
71073-90A64-03 |
— | ||
|
71073S
|
71073S
71073-90A64-06
Cover, Front Seat Back(For Bench Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..SOB..GX..ME SEPIA BROWN,TRIM4#; FJ62..5F..SOB..GX..ME W(HEAD REST),SEPIA BROWN,TRIM4# |
71073-90A64-06 |
— | ||
|
71074S
|
71074S
71073-90A44-03
Cover, Front Seat Back, Rh(For Separate Type)
[08.1987 - 03.1992] BJ60,HJ60..GX;FJ62..SRF..GX;FJ62..LHD..HRF..GX SHADOW GRAY,TRIM1#; FJ62..4FC..GX..GEN W(SEPARATE SEAT & HEAD REST),SHADOW GRAY,TRIM1#; FJ62..LHD..MTM..GX..GEN W(HEAD REST & SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1# |
71073-90A44-03 |
— | ||
|
71074S
|
71074S
71073-90A44-06
Cover, Front Seat Back, Rh(For Separate Type)
[08.1987 - 03.1992] BJ60,HJ60..GX;FJ62..SRF..GX;FJ62..LHD..HRF..GX SEPIA BROWN,TRIM4#; FJ62..4FC..GX..GEN W(SEPARATE SEAT & HEAD REST),SEPIA BROWN,TRIM4#; FJ62..LHD..MTM..GX..GEN W(HEAD REST & SEPARATE FRONT SEAT),SEPIA BROWN,TRIM4# |
71073-90A44-06 |
— | ||
|
71410S
|
71410S
71410-90A47-03
Cushion Assy, Front Seat(For Bench Type)
[08.1987 - 01.1990] FJ62..5F..SOB..GX..ME SHADOW GRAY,TRIM1#; BJ60,FJ62,HJ60..SOB..GX..ME SHADOW GRAY,TRIM1# |
71410-90A47-03 |
— | ||
|
71410S
|
71410S
71410-90A47-06
Cushion Assy, Front Seat(For Bench Type)
[08.1987 - 01.1990] FJ62..5F..SOB..GX..ME SEPIA BROWN,TRIM4#; BJ60,FJ62,HJ60..SOB..GX..ME SEPIA BROWN,TRIM4# |
71410-90A47-06 |
— | ||
|
71420S
|
71420S
71420-90A31-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GX;FJ62,HJ61..HRF..GX..ARL SHADOW GRAY,TRIM1#; FJ62..4FC..GX..GEN W(SEPARATE SEAT),SHADOW GRAY,TRIM1#; FJ62..LHD..MTM..GX..GEN W(SEPARATE SEAT),SHADOW GRAY,TRIM1# |
71420-90A31-03 |
— | ||
|
71420S
|
71420S
71420-90A31-06 Cushion Assy, Front Seat, Lh (For Separate Type)FRONT SEAT, LH (FOR SEPARATE TYPE) [08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD..GX;FJ62,HJ61..HRF..GX..ARL SEPIA BROWN,TRIM4#; FJ62..4FC..GX..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4#; FJ62..LHD..MTM..GX..GEN W(SEPARATE SEAT),SEPIA BROWN,TRIM4# |
71420-90A31-06 |
US $736.74 |
||
|
71430S
|
71430S
71430-90A55-03
Back Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..SOB..GX..ME SHADOW GRAY,TRIM1#; FJ62..5F..SOB..GX..ME W(HEAD REST),SHADOW GRAY,TRIM1# |
71430-90A55-03 |
— | ||
|
71430S
|
71430S
71430-90A55-06
Back Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..SOB..GX..ME SEPIA BROWN,TRIM4#; FJ62..5F..SOB..GX..ME W(HEAD REST),SEPIA BROWN,TRIM4# |
71430-90A55-06 |
— | ||
|
71440S
|
71440S
71440-90A92-03
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..GX..ME SHADOW GRAY,TRIM1# |
71440-90A92-03 |
— | ||
|
71440S
|
71440S
71440-90A92-06
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 01.1990] BJ60,FJ62,HJ60..GX..ME SEPIA BROWN,TRIM4# |
71440-90A92-06 |
— | ||
|
71812A
|
71812A
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1987 - 01.1990] BJ60,HJ60..SOB;FJ62..STD..GEN;FJ62..SOB..(GX,STD)..(ARL,ME) |
90468-18071 |
— | ||
| replacement | |||||
|
71812A
|
71812A
90468-16019 Clip (For Rear Seat Back)[08.1987 - 01.1990] BJ60,HJ60..SOB;FJ62..STD..GEN;FJ62..SOB..(GX,STD)..(ARL,ME) |
90468-16019 |
from US $0.91 |
||
|
71910A
|
71910A
71910-90A01-03 Headrest Assy, Front SeatFRONT SEAT [08.1987 - 03.1992] BJ60,FJ62,HJ60..GX..(GEN,ME) GRAY,TRIM1# |
71910-90A01-03 |
US $205.30 |
||
| replacement | |||||
|
71910A
|
71910A
71910-90A01-B0 Headrest Assy, Front Seat[08.1987 - 03.1992] BJ60,FJ62,HJ60..GX..(GEN,ME) GRAY,TRIM1# |
71910-90A01-B0 |
US $205.30 |
||
|
71910A
|
71910A
71910-90A01-16 Headrest Assy, Front Seat[08.1987 - 03.1992] BJ60,FJ62,HJ60..(GX,STD)..(GEN,ME) SEPIA BROWN,TRIM4# |
71910-90A01-16 |
US $205.30 |
||
| replacement | |||||
|
71910A
|
71910A
71910-90A01-E0 Headrest Assy, Front Seat[08.1987 - 03.1992] BJ60,FJ62,HJ60..(GX,STD)..(GEN,ME) SEPIA BROWN,TRIM4# |
71910-90A01-E0 |
US $205.30 |
||
|
71931
|
71931
71956-30020-13
Support, Front Seat Headrest
[08.1987 - 03.1992] HJ60..GX..(GEN,ME);FJ62..5F..SRF..GX..GEN;FJ62,HJ61..5F..HRF..GX;FJ62..(4F,4FC)..G X..(GEN,ME);BJ60,FJ62..5F..SRF..SOB..GX..ME W/O(LOCK),GRAY,TRIM1# |
71956-30020-13 |
— | ||
|
71931
|
71931
71956-30020-56 Support, Front Seat Headrest[08.1987 - 03.1992] HJ60..GX..(GEN,ME);FJ62..5F..SRF..GX..GEN;FJ62,HJ61..5F..HRF..GX;FJ62..(4F,4FC)..G X..(GEN,ME);BJ60,FJ62..5F..SRF..SOB..GX..ME W/O(LOCK),SEPIA BROWN,TRIM4# |
71956-30020-56 |
US $11.65 |
||
| replacement | |||||
|
71931
|
71931
71956-30020-10
Support, Rear Seat Headrest
[08.1987 - 03.1992] HJ60..GX..(GEN,ME);FJ62..5F..SRF..GX..GEN;FJ62,HJ61..5F..HRF..GX;FJ62..(4F,4FC)..G X..(GEN,ME);BJ60,FJ62..5F..SRF..SOB..GX..ME W/O(LOCK),SEPIA BROWN,TRIM4# |
71956-30020-10 |
— | ||
|
71931
|
71931
71990-30020-13
Support, Front Seat Headrest
[08.1987 - 03.1992] HJ60..GX..(GEN,ME);FJ62..5F..SRF..GX..GEN;FJ62,HJ61..5F..HRF..GX;FJ62..(4F,4FC)..G X..(GEN,ME);BJ60,FJ62..5F..SRF..SOB..GX..ME W(LOCK),GRAY,TRIM1# |
71990-30020-13 |
— | ||
|
71931
|
71931
71990-30020-56
Support, Front Seat Headrest
[08.1987 - 03.1992] HJ60..GX..(GEN,ME);FJ62..5F..SRF..GX..GEN;FJ62,HJ61..5F..HRF..GX;FJ62..(4F,4FC)..G X..(GEN,ME);BJ60,FJ62..5F..SRF..SOB..GX..ME W(LOCK),SEPIA BROWN,TRIM4# |
71990-30020-56 |
— | ||
|
72110A
|
72110A
72110-90A04 Track Assy, Front Seat, Outer Rh[08.1987 - 03.1992] HJ60..GX,VX;FJ62..VX..GEN;HJ60..RHD..STD;FJ62..(STD,VX)..ME;BJ60,FJ62,HJ61..RHD;BJ 60,FJ62..LHD..MTM..GX; FJ62..LHD..4FC..GX W(SEPARATE SEAT); FJ62..4F..GX;FJ62..LHD..5F..HRF..GX;FJ62..5F..SRF..SOB..GX;FJ62..LHD..5F..SRF..LUB ..GEN W(S |
72110-90A04 |
US $165.98 |
||
|
72110A
|
72110A
72110-90A06
Track Assy, Front Seat, Outer Rh
[08.1987 - 03.1992] FJ62..LHD..4FC..GX; HJ60..LHD..GX;FJ62..LHD..MTM..GX..GEN;BJ60,FJ62..5F..SOB..(GX,STD)..ME W(ONE TOUCHN 2-4 CELECTOR) |
72110-90A06 |
— | ||
|
72120
|
72120
72120-90A04 Track Assy, Front Seat, Outer Lh[08.1987 - 03.1992] BJ60..LHD;FJ62,HJ6#..GX,VX;FJ62,HJ60..5F..STD;FJ62,HJ60..LHD..4F..STD; FJ62..4FC..GX..GEN W(SEPARATE SEAT); FJ62..LHD..MTM..GX..GEN W(SEPARATE SEAT) |
72120-90A04 |
US $165.98 |
||
|
72130A
|
72130A
72130-90A04 Track Assy, Front Seat, Inner RhFRONT SEAT, INNER RH [08.1987 - 03.1992] FJ62..LHD..5F..LUB..GEN;BJ60,HJ60..LHD..(GX,STD);FJ62..LHD..5F..SOB..(GX,STD);FJ62 ..LHD..(4F,4FC)..(GX,STD); FJ62..5F..SOB..GX..ME;FJ62..LHD..MTM..GX..GEN |
72130-90A04 |
US $109.20 |
||
|
72140A
|
72140A
72140-90A00 Track Assy, Front Seat,inner Lh[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD;FJ62,HJ61..HRF..ARL; FJ62..4FC..GX..GEN W(SEPARATE SEAT); FJ62..LHD..MTM..GX..GEN W(SEPARATE SEAT) |
72140-90A00 |
US $107.74 |
||
|
72510D
|
72510D
72510-90A01 Adjuster Assy, Reclining Seat Back, RhRECLINING SEAT, OUTER RH [08.1987 - 03.1992] FJ62..5F..SOB..GX..ME;FJ62..LHD..MTM..GX..GEN; HJ60..LHD..GX;FJ62..LHD..5F..GX..GEN;FJ62..LHD..(4F,4FC)..GX;BJ60,FJ62..5F..SOB..( GX,STD)..ME |
72510-90A01 |
US $200.93 |
||
|
72520D
|
72520D
72520-90A00 Adjuster Assy, Reclining Seat Back, Lh[08.1987 - 03.1992] BJ60,FJ62,HJ60..LHD;FJ62,HJ61..HRF..ARL |
72520-90A00 |
US $199.47 |
||
|
72525A
|
72525A
72525-14010-13 Handle, Reclining Adjuster Release[08.1987 - 03.1992] BJ60,FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72525-14010-13 |
US $12.38 |
||
| replacement | |||||
|
72525A
|
72525A
72525-14010-01
Handle, Reclining Adjuster Release
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72525-14010-01 |
— | ||
|
72525A
|
72525A
72525-14010-56 Handle, Reclining Adjuster Release[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72525-14010-56 |
US $12.38 |
||
| replacement | |||||
|
72525A
|
72525A
72525-14010-01
Handle, Reclining Adjuster Release
[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72525-14010-01 |
— | ||
|
72526
|
72526
72526-14010-43 Handle, Reclining Adjuster Release[08.1987 - 01.1990] BJ60,FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72526-14010-43 |
US $12.38 |
||
| replacement | |||||
|
72526
|
72526
72526-14010-01
Handle, Reclining Adjuster Release
[08.1987 - 01.1990] BJ60,FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72526-14010-01 |
— | ||
|
72526
|
72526
72526-14010-56 Handle, Reclining Adjuster Release[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72526-14010-56 |
US $12.38 |
||
| replacement | |||||
|
72526
|
72526
72526-14010-01
Handle, Reclining Adjuster Release
[08.1987 - 03.1992] BJ60,FJ62,HJ6# BROWN,TRIM4# |
72526-14010-01 |
— | ||
|
72551B
|
72551B
72551-90A00-03
Cover, Reclining Hinge Outer, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72551-90A00-03 |
— | ||
|
72551B
|
72551B
72551-90A00-16 Cover, Reclining Hinge Outer, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
72551-90A00-16 |
US $29.99 |
||
| replacement | |||||
|
72551B
|
72551B
72551-90A00-B0 Cover, Reclining Hinge Outer, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
72551-90A00-B0 |
US $29.99 |
||
|
72552B
|
72552B
72552-90A00-03
Cover, Reclining Hinge Outer, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72552-90A00-03 |
— | ||
|
72552B
|
72552B
72552-90A00-16
Cover, Reclining Hinge Outer, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
72552-90A00-16 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.59 |
||
|
9011910037
|
9011910037
90119-10037 BOLT |
90119-10037 |
from US $1.14 |
||
|
9011910406
|
9011910406
90119-10406
New Genuine Part
|
90119-10406 |
— | ||
|
9015480004
|
9015480004
90154-80004 New Genuine Part |
90154-80004 |
US $2.33 |
||
|
9015940088
|
9015940088
90159-40088 New Genuine Part |
90159-40088 |
US $1.46 |
||
|
9038612005
|
9038612005
90386-12005 Bush (For Front Seat Hinge Pin) |
90386-12005 |
US $0.79 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.89 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.22 |
||
|
9338616016
|
9338616016
93386-16016 New Genuine Part |
93386-16016 |
US $0.58 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
from US $0.83 |
||
