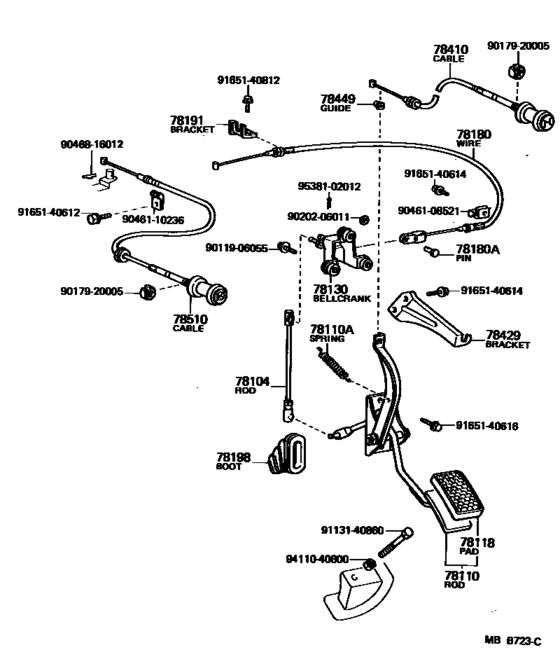

Accelerator Link ([08.1980 - 11.1984] (8008-8411)BJ60..LHD) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78104
|
78104
78104-90A01
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1980 - 11.1984] BJ60,HJ60..LHD |
78104-90A01 |
— | ||
|
78110
|
78110
78120-90A03
Rod Assy, Accelerator Pedal
[08.1980 - 11.1984] BJ60,HJ60..LHD |
78120-90A03 |
— | ||
|
78110
|
78110
78120-90A06 Rod Assy, Accelerator PedalACCELERATOR PEDAL [11.1984 - 08.1987] BJ60,FJ62,HJ60..LHD |
78120-90A06 |
US $126.67 |
||
|
78110A
|
78110A
90506-12262
Spring (For Accelerator Pedal Rod)
[08.1980 - 08.1987] BJ60,FJ6#,HJ60..LHD |
90506-12262 |
— | ||
|
78118
|
78118
78111-95110 Pedal, Accelerator[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
78111-95110 |
from US $8.42 |
||
|
78130
|
78130
78160-90A01
Bellcrank Assy, Accelerator
[08.1980 - 11.1984] BJ60,HJ60..LHD |
78160-90A01 |
— | ||
|
78130
|
78130
78160-90A02
Bellcrank Assy, Accelerator
[11.1984 - 08.1987] BJ60,FJ62,HJ60..LHD |
78160-90A02 |
— | ||
|
78180
|
78180
78180-90A04 Wire Assy, AcceleratorACCELERATOR [08.1980 - 05.1982] BJ60..LHD |
78180-90A04 |
US $45.57 |
||
|
78180
|
78180
78180-90A08
Wire Assy, Accelerator
[05.1982 - 11.1984] BJ60..LHD |
78180-90A08 |
— | ||
|
78180
|
78180
78180-90A15
Wire Assy, Accelerator
[11.1984 - 08.1987] BJ60..LHD |
78180-90A15 |
— | ||
|
78180A
|
78180A
90240-05071
Pin, Accelerator Wire Set
[08.1980 - 11.1984] BJ60,HJ60..LHD |
90240-05071 |
— | ||
|
78191
|
78191
78183-90A00
Clamp, Accelerator Control Cable
[08.1980 - 11.1984] BJ60..LHD |
78183-90A00 |
— | ||
|
78198
|
78198
78199-90351
Boot, Accelerator Connecting Rod
[08.1980 - 01.1981] BJ60..LHD |
78199-90351 |
— | ||
| replacement | |||||
|
78198
|
78198
78199-90352
Boot, Accelerator Connecting Rod
[08.1980 - 01.1981] BJ60..LHD |
78199-90352 |
— | ||
|
78198
|
78198
78199-90352
Boot, Accelerator Connecting Rod
[01.1981 - 08.1987] BJ60,FJ62,HJ60..LHD |
78199-90352 |
— | ||
|
78410
|
78410
78410-90A02
Cable Assy, Throttle Control
[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..LHD |
78410-90A02 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A10
Cable Assy, Throttle Control
[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..LHD |
78410-90A10 |
— | ||
|
78429
|
78429
78471-90A00
Bracket, Throttle Rod
[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..LHD |
78471-90A00 |
— | ||
|
78449
|
78449
78449-90300
Guide, Throttle Wire
[08.1980 - 07.1985] BJ60,FJ6#,HJ60 |
78449-90300 |
— | ||
|
78510
|
78510
78510-90A03 Cable Assy, StopSTOP [08.1980 - 11.1984] BJ60..LHD |
78510-90A03 |
US $64.65 |
||
|
9011906055
|
9011906055
90119-06055 New Genuine Part |
90119-06055 |
US $1.89 |
||
|
9017920005
|
9017920005
90179-20005
New Genuine Part
|
90179-20005 |
— | ||
|
9020206011
|
9020206011
90202-06011 New Genuine Part |
90202-06011 |
US $2.04 |
||
|
9046108521
|
9046108521
90461-08521
New Genuine Part
|
90461-08521 |
— | ||
|
9046110236
|
9046110236
90461-10236 New Genuine Part |
90461-10236 |
US $2.62 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.87 |
||
|
9113140860
|
9113140860
91131-40860
New Genuine Part
|
91131-40860 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140812
|
9165140812
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9538102012
|
9538102012
95381-02012
New Genuine Part
|
95381-02012 |
— | ||
