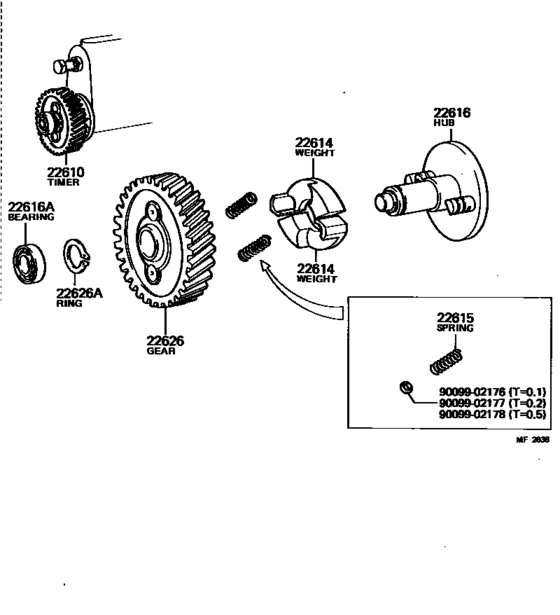

Automatic Timer ([08.1980 - ] (8008- )3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
22610
|
22610
22610-58010 Timer Assy, AutomaticAUTOMATIC [09.1984 - 08.1987] 3B..BJ60 |
22610-58010 |
US $813.90 |
||
22614
|
22614
22614-56020
Weight, Timer
[08.1980 - 08.1987] 3B..BJ60 |
22614-56020 |
— | ||
22615
|
22615
22615-56040
Spring, Timer
[08.1980 - 08.1987] 3B..BJ60 |
22615-56040 |
— | ||
22616
|
22616
22616-56030
Hub, Timer
[08.1980 - 08.1987] 3B..BJ60 |
22616-56030 |
— | ||
22616A
|
22616A
90099-10018
Bearing(For Timer Hub)
[08.1980 - 08.1987] 3B..BJ60 |
90099-10018 |
— | ||
22626
|
22626
22626-56050
Gear, Drive
[09.1984 - 08.1987] 3B..BJ60 |
22626-56050 |
— | ||
22626A
|
22626A
90096-90001
Ring, Clamp(For Drive Gear)
[08.1980 - 08.1987] 3B..BJ60; 12HT..HJ61 |
90096-90001 |
— | ||
9009902176
|
9009902176
90099-02176 New Genuine Part |
90099-02176 |
US $1.02 |
||
9009902177
|
9009902177
90099-02177
New Genuine Part
|
90099-02177 |
— | ||
9009902178
|
9009902178
90099-02178
New Genuine Part
|
90099-02178 |
— |
