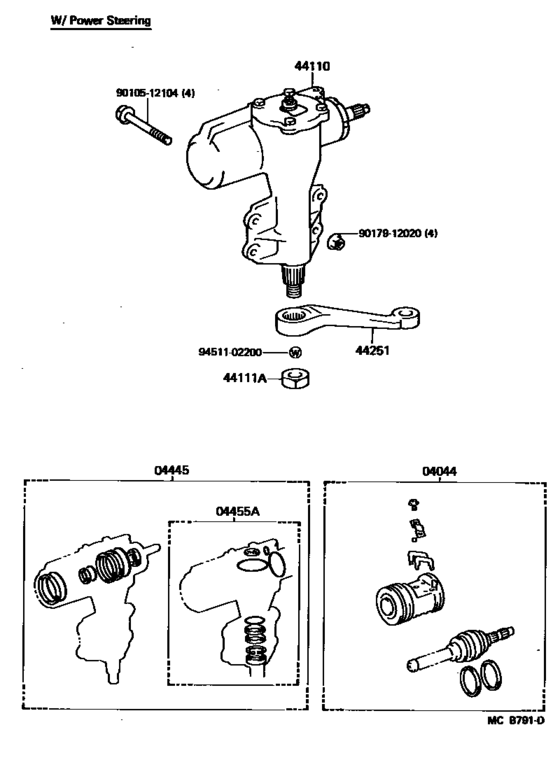

Front Steering Gear & Link ([11.1984 - ] (8411- )LHD) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04044
|
04044
04044-60060
Worm Kit, Power Steering
[01.1984 - 11.1984] BJ60,FJ60,HJ60..LHD |
04044-60060 |
— | ||
|
04044
|
04044
04044-60070 Warm Kit, Power Steering[11.1984 - 10.1985] BJ60,FJ62,HJ60..LHD |
04044-60070 |
US $390.21 |
||
|
04044
|
04044
04044-60110 Warm Kit, Power Steering[10.1985 - 08.1987] BJ60,FJ62,HJ6#..LHD |
04044-60110 |
US $391.66 |
||
|
04445
|
04445
04445-60020
Gasket Kit, Power Steering Gear(For Recirculating Ball)
[01.1984 - 11.1984] BJ60,FJ60,HJ60 |
04445-60020 |
— | ||
|
04445
|
04445
04445-60030 Gasket Kit, Power Steering Gear(For Recirculating Ball)[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
04445-60030 |
from US $121.36 |
||
|
04455A
|
04455A
04455-60010 Gasket Kit, Power Steering Cross Shaft OverholePOWER STEERING CROSS SHAFT OVERHOLE [01.1984 - 11.1984] BJ60,FJ60,HJ60 |
04455-60010 |
US $36.11 |
||
| replacement | |||||
|
04455A
|
04455A
04455-60011 Gasket Kit, Power Steering Cross Shaft Overhole[01.1984 - 11.1984] BJ60,FJ60,HJ60 |
04455-60011 |
US $36.40 |
||
|
04455A
|
04455A
04455-60020
Gasket Kit, Power Steering Cross Shaft Overhole
[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
04455-60020 |
— | ||
|
44110
|
44110
44110-60051
Gear Assy, Power Steering
[01.1984 - 11.1984] BJ60,FJ60,HJ60..LHD |
44110-60051 |
— | ||
|
44110
|
44110
44110-60120 Gear Assy, Power SteeringPOWER STEERING [11.1984 - 10.1985] BJ60,FJ62,HJ60..LHD |
44110-60120 |
US $2,023.84 |
||
| replacement | |||||
|
44110
|
44110
44110-60121 Gear Assy, Power SteeringPOWER STEERING [11.1984 - 10.1985] BJ60,FJ62,HJ60..LHD |
44110-60121 |
US $2,023.84 |
||
|
44110
|
44110
44110-60121 Gear Assy, Power SteeringPOWER STEERING [10.1985 - 08.1987] BJ60,FJ62,HJ6#..LHD |
44110-60121 |
US $2,023.84 |
||
|
44111A
|
44111A
90170-22058 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
90170-22058 |
from US $2.07 |
||
|
44251
|
44251
45411-60090
Arm, Pitman
[01.1984 - 08.1987] BJ60,FJ6#,HJ6# |
45411-60090 |
— | ||
|
9010512104
|
9010512104
90105-12104 BOLT |
90105-12104 |
US $6.99 |
||
|
9017912020
|
9017912020
90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing) |
90179-12020 |
US $2.87 |
||
|
9451102200
|
9451102200
94511-02200 WASHER |
94511-02200 |
US $1.97 |
||
