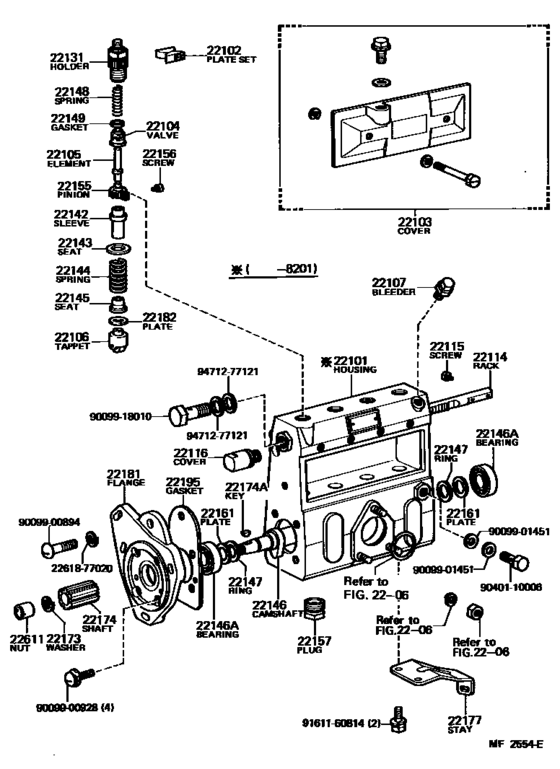

Injection Pump Body ([08.1980 - ] (8008- )3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22102
|
22102
22102-77021
Plate Set, Valve Holder Lock
[08.1980 - 07.1986] 3B..BJ60; 12HT,2H..HJ6# |
22102-77021 |
— | ||
|
22103
|
22103
22103-48030
Cover Sub-Assy, Injection Pump
[08.1980 - 08.1987] 3B..BJ60 |
22103-48030 |
— | ||
|
22104
|
22104
22104-77020
Valve Sub-Assy, Injection Pump Delivery
[11.1984 - 08.1987] 3B..BJ60 |
22104-77020 |
— | ||
|
22105
|
22105
22105-58010 Element Sub-Assy, Injection Pump[08.1980 - 08.1987] 3B..BJ60 |
22105-58010 |
US $87.36 |
||
|
22106
|
22106
22106-46010
Tappet Sub-Assy, Injection Pump
[08.1980 - 08.1987] 3B..BJ60; 12HT,2H..HJ6# |
22106-46010 |
— | ||
|
22107
|
22107
22150-67010
Bleeder Sub-Assy, Air
[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
22150-67010 |
— | ||
|
22114
|
22114
22114-48030
Rack, Control
[08.1980 - 08.1987] 3B..BJ60 |
22114-48030 |
— | ||
|
22115
|
22115
22115-77020 Screw, Rack Guide[08.1980 - 08.1987] 3B..BJ60; 12HT,2H..HJ6# |
22115-77020 |
US $3.93 |
||
| replacement | |||||
|
22115
|
22115
22115-78140 Screw, Rack Guide[08.1980 - 08.1987] 3B..BJ60; 12HT,2H..HJ6# |
22115-78140 |
US $1.89 |
||
|
22116
|
22116
22116-46010
Cover, Control Rack
[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60..MTM |
22116-46010 |
— | ||
|
22131
|
22131
22131-77020 Holder, Delivery Valve[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
22131-77020 |
US $10.13 |
||
|
22142
|
22142
22142-77020
Sleeve, Plunger Control
[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
22142-77020 |
— | ||
| replacement | |||||
|
22142
|
22142
22142-58230 Sleeve, Plunger Control[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
22142-58230 |
US $6.64 |
||
|
22143
|
22143
22143-77020
Seat, Spring Upper
[08.1980 - 07.1986] 3B..BJ60; 12HT,2H..HJ6# |
22143-77020 |
— | ||
|
22144
|
22144
22144-46010
Spring, Pump Plunger
[08.1980 - 08.1987] 3B..BJ60; 12HT,2H..HJ6# |
22144-46010 |
— | ||
|
22145
|
22145
22145-46010
Seat, Spring, Lower
[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
22145-46010 |
— | ||
|
22146
|
22146
22146-56010
Camshaft, Injection Pump
[08.1980 - 08.1987] 3B..BJ60 |
22146-56010 |
— | ||
|
22146A
|
22146A
90099-10087
Bearing(For Injection Camshaft)
[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
90099-10087 |
— | ||
|
22147
|
22147
22147-77020
Ring, Camshaft Adjust
[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
22147-77020 |
— | ||
|
22148
|
22148
22148-46010
Spring, Delivery Valve
[08.1980 - 08.1987] 3B..BJ60 |
22148-46010 |
— | ||
|
22149
|
22149
22149-76010 Gasket, Delivery Valve[08.1980 - 08.1987] 3B..BJ60; 2H..HJ60 |
22149-76010 |
US $4.12 |
||
|
22155
|
22155
22155-76010
Pinion, Plunger Control
[08.1980 - 07.1986] 3B..BJ60; 12HT,2H..HJ6# |
22155-76010 |
— | ||
|
22156
|
22156
22156-76010 Screw, Plunger Control Pinion Clamp[08.1980 - 08.1987] 3B..BJ60; 12HT,2H..HJ6# |
22156-76010 |
US $2.04 |
||
|
22157
|
22157
22157-48023
Plug, Injection Pump Felt Plate
[08.1980 - 10.1985] 3B..BJ60; 2H..HJ60 |
22157-48023 |
— | ||
|
22157
|
22157
22157-48024
Plug, Injection Pump Felt Plate
[10.1985 - 08.1987] 3B..BJ60; 12HT,2H..HJ6# |
22157-48024 |
— | ||
|
22161
|
22161
22161-76010 Plate, Camshaft Shim[08.1980 - 08.1987] 3B..BJ60 T=0.10,T=0.10; 2H..HJ60 T=0.10,T=0.10 |
22161-76010 |
US $2.04 |
||
|
22161
|
22161
22162-76010 Plate, Camshaft Shim[08.1980 - 08.1987] 3B..BJ60 T=0.12,T=0.12; 2H..HJ60 T=0.12,T=0.12 |
22162-76010 |
US $2.04 |
||
|
22161
|
22161
22163-76010 Plate, Camshaft Shim[08.1980 - 08.1987] 3B..BJ60 T=0.14,T=0.14; 2H..HJ60 T=0.14,T=0.14 |
22163-76010 |
US $2.04 |
||
|
22161
|
22161
22164-76010 Plate, Camshaft Shim[08.1980 - 08.1987] 3B..BJ60 T=0.16,T=0.16; 2H..HJ60 T=0.16,T=0.16 |
22164-76010 |
US $2.04 |
||
|
22161
|
22161
22165-76010 Plate, Camshaft Shim[08.1980 - 08.1987] 3B..BJ60 T=0.18,T=0.18; 2H..HJ60 T=0.18,T=0.18 |
22165-76010 |
US $2.04 |
||
|
22161
|
22161
22166-76010
Plate, Camshaft Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.50,T=0.50; 2H..HJ60 T=0.50,T=0.50 |
22166-76010 |
— | ||
|
22173
|
22173
22173-46010
Washer, Spring
[08.1980 - 08.1987] 3B..BJ60 |
22173-46010 |
— | ||
|
22174
|
22174
22174-47010
Shaft, Spline
[08.1980 - 08.1987] 3B..BJ60 |
22174-47010 |
— | ||
|
22174A
|
22174A
90099-13002
Key(For Spline Shaft)
[08.1980 - 08.1987] 3B..BJ60 |
90099-13002 |
— | ||
|
22177
|
22177
22177-56042
Stay, Injection Pump Body
[01.1982 - 08.1987] 3B..BJ60 |
22177-56042 |
— | ||
|
22181
|
22181
22181-56040
Flange, Injection Pump
[08.1980 - 08.1987] 3B..BJ60 |
22181-56040 |
— | ||
|
22182
|
22182
22182-46010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.10,T=0.10; 12HT,2H..HJ6# T=0.10,T=0.10 |
22182-46010 |
— | ||
|
22182
|
22182
22183-46010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.20,T=0.20; 12HT,2H..HJ6# T=0.20,T=0.20 |
22183-46010 |
— | ||
|
22182
|
22182
22184-46010 Plate, Tappet Adjusting Shim[08.1980 - 08.1987] 3B..BJ60 T=0.30,T=0.30; 12HT,2H..HJ6# T=0.30,T=0.30 |
22184-46010 |
US $2.33 |
||
|
22182
|
22182
22185-46010 Plate, Tappet Adjusting Shim[08.1980 - 08.1987] 3B..BJ60 T=0.40,T=0.40; 12HT,2H..HJ6# T=0.40,T=0.40 |
22185-46010 |
US $2.33 |
||
|
22182
|
22182
22186-46010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.50,T=0.50; 12HT,2H..HJ6# T=0.50,T=0.50 |
22186-46010 |
— | ||
|
22182
|
22182
22186-48010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.15,T=0.15; 12HT,2H..HJ6# T=0.15,T=0.15 |
22186-48010 |
— | ||
| replacement | |||||
|
22182
|
22182
22185-48010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.15,T=0.15; 12HT,2H..HJ6# T=0.15,T=0.15 |
22185-48010 |
— | ||
|
22182
|
22182
22187-46010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.60,T=0.60; 12HT,2H..HJ6# T=0.60,T=0.60 |
22187-46010 |
— | ||
|
22182
|
22182
22188-46010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.70,T=0.70; 12HT,2H..HJ6# T=0.70,T=0.70 |
22188-46010 |
— | ||
|
22182
|
22182
22189-46010
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.80,T=0.80; 12HT,2H..HJ6# T=0.80,T=0.80 |
22189-46010 |
— | ||
|
22182
|
22182
22189-48031
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=0.90,T=0.90; 12HT,2H..HJ6# T=0.90,T=0.90 |
22189-48031 |
— | ||
|
22182
|
22182
22189-48032
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=1.00,T=1.00; 12HT,2H..HJ6# T=1.00,T=1.00 |
22189-48032 |
— | ||
|
22182
|
22182
22189-48033
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=1.10,T=1.10; 12HT,2H..HJ6# T=1.10,T=1.10 |
22189-48033 |
— | ||
|
22182
|
22182
22189-48034
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=1.20,T=1.20; 12HT,2H..HJ6# T=1.20,T=1.20 |
22189-48034 |
— | ||
|
22182
|
22182
22189-48035
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=1.30,T=1.30; 12HT,2H..HJ6# T=1.30,T=1.30 |
22189-48035 |
— | ||
|
22182
|
22182
22189-48036
Plate, Tappet Adjusting Shim
[08.1980 - 08.1987] 3B..BJ60 T=1.40,T=1.40; 12HT,2H..HJ6# T=1.40,T=1.40 |
22189-48036 |
— | ||
|
22195
|
22195
22195-48030
Gasket, Bearing Cover
[08.1980 - 08.1987] 3B..BJ60 |
22195-48030 |
— | ||
| replacement | |||||
|
22195
|
22195
22195-58050
Gasket, Bearing Cover
[08.1980 - 08.1987] 3B..BJ60 |
22195-58050 |
— | ||
|
22611
|
22611
22611-46010
Nut, Timer Round
[08.1980 - 08.1987] 3B..BJ60 |
22611-46010 |
— | ||
|
2261877020
|
2261877020
22618-77020
Washer(For Cap Nut)
|
22618-77020 |
— | ||
| replacement | |||||
|
2261877020
|
2261877020
90201-08106 Washer(For Cap Nut) |
90201-08106 |
from US $0.76 |
||
|
9009900894
|
9009900894
90099-00894
New Genuine Part
|
90099-00894 |
— | ||
|
9009900928
|
9009900928
90099-00928
New Genuine Part
|
90099-00928 |
— | ||
|
9009901451
|
9009901451
90099-01451
Washer, Injection Pump Drain Union
|
90099-01451 |
— | ||
|
9009918010
|
9009918010
90099-18010 Screw, Fuel Pipe Follow |
90099-18010 |
US $3.32 |
||
|
9040110006
|
9040110006
90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-10006 |
from US $2.74 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9471277121
|
9471277121
94712-77121 Gasket, Nipple Union(For Fuel) |
94712-77121 |
from US $1.12 |
||
