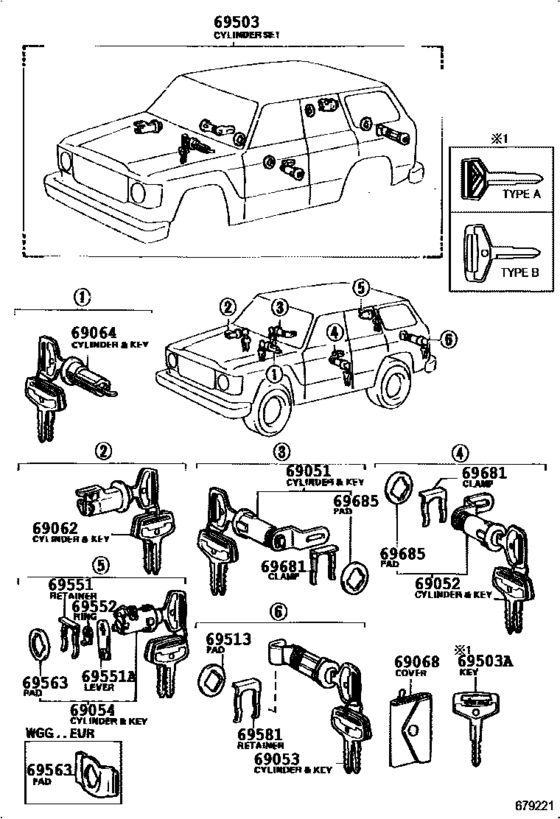

Lock Cylinder Set ([08.1980 - ] (8008- )) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-90A00
Cylinder & Key Set, Door Lock, Rh
[10.1982 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
69051-90A00 |
— | ||
| replacement | |||||
|
69051
|
69051
69051-90A06
Cylinder & Key Set, Door Lock, Rh
[10.1982 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
69051-90A06 |
— | ||
|
69052
|
69052
69052-90A00
Cylinder & Key Set, Door Lock, Lh
[10.1982 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
69052-90A00 |
— | ||
| replacement | |||||
|
69052
|
69052
69052-90A06
Cylinder & Key Set, Door Lock, Lh
[10.1982 - 08.1987] BJ60,FJ6#,HJ6#..ARL,GEN,ME |
69052-90A06 |
— | ||
|
69053
|
69053
69058-19065
Cylinder & Key Set, Fuel Inlet Lock
[10.1982 - 10.1985] BJ60,FJ6#,HJ60..ARL,GEN |
69058-19065 |
— | ||
| replacement | |||||
|
69053
|
69053
69058-90A02
Cylinder & Key Set, Fuel Tank Filler
[10.1982 - 10.1985] BJ60,FJ6#,HJ60..ARL,GEN |
69058-90A02 |
— | ||
|
69053
|
69053
69058-90A03
Cylinder & Key Set, Fuel Inlet Lock
[10.1985 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
69058-90A03 |
— | ||
| replacement | |||||
|
69053
|
69053
69058-90A02
Cylinder & Key Set, Fuel Tank Filler
[10.1985 - 08.1987] BJ60,FJ62,HJ6#..ARL,GEN,ME |
69058-90A02 |
— | ||
|
69054
|
69054
69055-90A03
Cylinder & Key Set, Back Door Lock
[05.1983 - 10.1985] BJ60,FJ6#,HJ60..SOB |
69055-90A03 |
— | ||
| replacement | |||||
|
69054
|
69054
69055-90A12
Cylinder & Key Set, Back Door Lock
[05.1983 - 10.1985] BJ60,FJ6#,HJ60..SOB |
69055-90A12 |
— | ||
|
69054
|
69054
69055-90A08 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [10.1985 - 08.1987] BJ60,FJ62,HJ60..SOB..(ARL,GEN,ME) |
69055-90A08 |
US $50.96 |
||
| replacement | |||||
|
69054
|
69054
69055-90A12
Cylinder & Key Set, Back Door Lock
[10.1985 - 08.1987] BJ60,FJ62,HJ60..SOB..(ARL,GEN,ME) |
69055-90A12 |
— | ||
|
69062
|
69062
69056-14020 Cylinder & Key Set, Glove Compartment Lock[08.1986 - 08.1987] BJ60,HJ60..GEN |
69056-14020 |
US $54.31 |
||
| replacement | |||||
|
69062
|
69062
69056-90P01 Cylinder & Key Set, Glove Compartment Lock[08.1986 - 08.1987] BJ60,HJ60..GEN |
69056-90P01 |
US $64.21 |
||
|
69064
|
69064
69057-90A00
Cylinder & Key Set, Ignition Switch Lock
[10.1982 - 10.1985] BJ60,HJ60..ARL,GEN W/STEERING LOCK |
69057-90A00 |
— | ||
| replacement | |||||
|
69064
|
69064
69057-90A11
Cylinder & Key Set, Ignition Switch Lock
[10.1982 - 10.1985] BJ60,HJ60..ARL,GEN W/STEERING LOCK |
69057-90A11 |
— | ||
|
69064
|
69064
69057-90A01 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [05.1983 - 10.1985] BJ60 W/O STEERING LOCK |
69057-90A01 |
US $82.99 |
||
|
69064
|
69064
69057-90A07
Cylinder & Key Set, Ignition Switch Lock
[10.1985 - 08.1987] BJ60,HJ60..GEN |
69057-90A07 |
— | ||
|
69068
|
69068
69555-20010 Cover Sub-Assy, Key[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
69555-20010 |
from US $13.15 |
||
|
69503
|
69503
69005-90A03 Cylinder Set, LockLOCK [10.1982 - 10.1985] BJ60,HJ60..SOB..GEN W/STEERING LOCK |
69005-90A03 |
US $209.66 |
||
| replacement | |||||
|
69503
|
69503
69005-90A30 Cylinder Set, LockLOCK [10.1982 - 10.1985] BJ60,HJ60..SOB..GEN W/STEERING LOCK |
69005-90A30 |
US $209.66 |
||
|
69503
|
69503
69005-90A09 Cylinder Set, LockLOCK [05.1983 - 11.1984] BJ60 W/O STEERING LOCK |
69005-90A09 |
US $270.82 |
||
|
69503
|
69503
69005-90A24
Cylinder Set, Lock
[10.1985 - 08.1986] BJ60,HJ60..SOB..GEN |
69005-90A24 |
— | ||
|
69503
|
69503
69005-90A35 Cylinder Set, LockLOCK [08.1986 - 08.1987] BJ60,HJ60..SOB..(GEN,ME) |
69005-90A35 |
US $246.06 |
||
| replacement | |||||
|
69503
|
69503
69005-90A46 Cylinder Set, Lock[08.1986 - 08.1987] BJ60,HJ60..SOB..(GEN,ME) |
69005-90A46 |
US $247.52 |
||
|
69503A
|
69503A
90999-00066
Key, Blank
[10.1985 - 08.1987] FJ62..GEN MASTER KEY,TYPE A:REFER ILLUST.; BJ60,HJ60..GEN MASTER KEY,TYPE A:REFER ILLUST.; BJ60,FJ62,HJ6#..ARL,EUR,ME MASTER KEY,TYPE A:REFER ILLUST. |
90999-00066 |
— | ||
| replacement | |||||
|
69503A
|
69503A
90999-00085 Key, Blank[10.1985 - 08.1987] FJ62..GEN MASTER KEY,TYPE A:REFER ILLUST.; BJ60,HJ60..GEN MASTER KEY,TYPE A:REFER ILLUST.; BJ60,FJ62,HJ6#..ARL,EUR,ME MASTER KEY,TYPE A:REFER ILLUST. |
90999-00085 |
from US $7.75 |
||
|
69503A
|
69503A
90999-00072
Key, Blank
[10.1982 - 10.1985] BJ60,HJ60..ARL,GEN MASTER KEY,TYPE B:REFER ILLUST. |
90999-00072 |
— | ||
|
69513
|
69513
69513-14010
Pad, Fuel Filler Lid Cylinder
[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
69513-14010 |
— | ||
|
69551
|
69551
69681-20040 Retainer, Back Door Lock Cylinder[05.1983 - 10.1985] BJ60,FJ6#,HJ60..SOB |
69681-20040 |
from US $1.84 |
||
|
69563
|
69563
69513-90A00
Pad, Back Door Lock Cylinder
[05.1983 - 08.1987] BJ60,FJ6#,HJ60..WGV |
69513-90A00 |
— | ||
| replacement | |||||
|
69563
|
69563
69513-32010 Pad, Lock Cylinder[05.1983 - 08.1987] BJ60,FJ6#,HJ60..WGV |
69513-32010 |
from US $1.37 |
||
|
69581
|
69581
69581-14010
Retainer, Fuel Filler Lid Cylinder
[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
69581-14010 |
— | ||
|
69681
|
69681
69681-20040 Retainer, Back Door Lock Cylinder[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
69681-20040 |
from US $1.84 |
||
|
69685
|
69685
69513-90A00
Pad, Back Door Lock Cylinder
[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
69513-90A00 |
— | ||
| replacement | |||||
|
69685
|
69685
69513-32010 Pad, Lock Cylinder[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
69513-32010 |
from US $1.37 |
||
