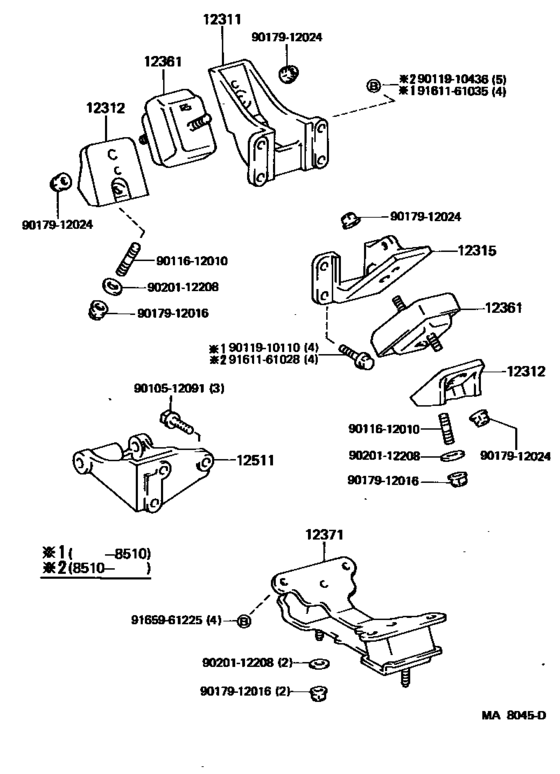

Mounting ([11.1984 - ] (8411- )3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- General
- Frame
- BJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-56020
Bracket, Engine Mounting, Front No.1 Rh
[08.1980 - 11.1984] 3B..BJ60 |
12311-56020 |
— | ||
|
12311
|
12311
12311-58031 Bracket, Engine Mounting, Front No.1 Rh[11.1984 - 12.1986] 3B..BJ60 |
12311-58031 |
US $68.43 |
||
|
12311
|
12311
12311-58032 Bracket, Engine Mounting, Front No.1 Rh[12.1986 - 08.1987] 3B..BJ60 |
12311-58032 |
US $117.94 |
||
|
12312
|
12312
12312-68010
Bracket, Engine Mounting, Front No.2
[11.1984 - 08.1987] 3B..BJ60 |
12312-68010 |
— | ||
|
12315
|
12315
12315-56011
Bracket, Engine Mounting, Front No.1 Lh
[05.1982 - 11.1984] 3B..BJ60 |
12315-56011 |
— | ||
|
12315
|
12315
12315-58020 Bracket, Engine Mounting, Front No.1 Lh[11.1984 - 08.1987] 3B..BJ60 |
12315-58020 |
US $43.68 |
||
|
12361
|
12361
12361-56031 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [10.1982 - 11.1984] 3B..BJ60 |
12361-56031 |
from US $109.88 |
||
|
12361
|
12361
12361-58030
Insulator, Engine Mounting, Front
[11.1984 - 08.1987] 3B..BJ60 |
12361-58030 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-58031
Insulator, Engine Mounting, Front
[11.1984 - 08.1987] 3B..BJ60 |
12361-58031 |
— | ||
|
12371
|
12371
12371-58010 Insulator, Engine Mounting, Rear No.1ENGINE MOUNTING, REAR NO.1 [08.1980 - 11.1984] 3B..BJ60 |
12371-58010 |
US $332.28 |
||
|
12371
|
12371
12371-58020
Insulator, Engine Mounting, Rear No.1
[11.1984 - 08.1987] 3B..BJ60 |
12371-58020 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-58021 Insulator, Engine Mounting, Rear No.1[11.1984 - 08.1987] 3B..BJ60 |
12371-58021 |
from US $126.27 |
||
|
12511
|
12511
12511-56040
Bracket, Alternator, No.1
[09.1984 - 08.1987] 3B..BJ60 |
12511-56040 |
— | ||
|
9010512091
|
9010512091
90105-12091 New Genuine Part |
90105-12091 |
US $1.22 |
||
|
9011612010
|
9011612010
90116-12010
New Genuine Part
|
90116-12010 |
— | ||
|
9011910110
|
9011910110
90119-10110
Bolt (For Control Shaft Cover)
|
90119-10110 |
— | ||
| replacement | |||||
|
9011910110
|
9011910110
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9011910436
|
9011910436
90119-10436
New Genuine Part
|
90119-10436 |
— | ||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.51 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.06 |
||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
from US $1.25 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
