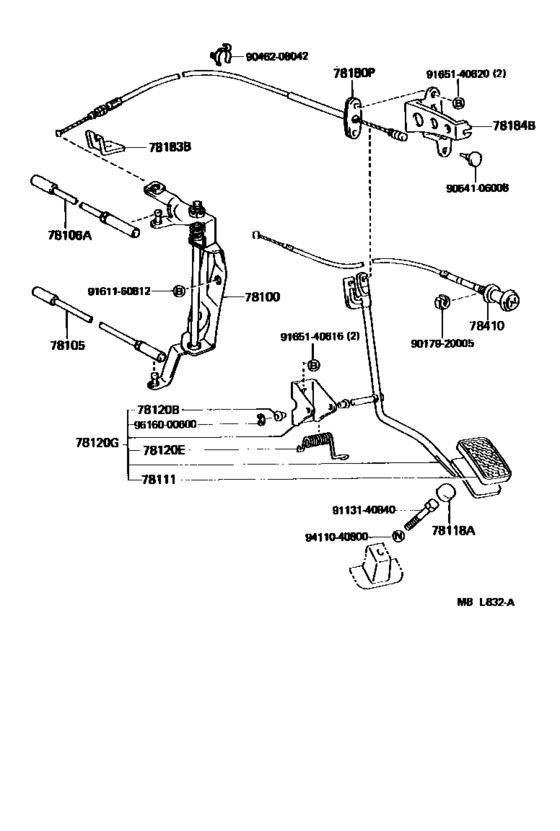

Accelerator Link ([08.1987 - ] (8708- )BJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-90K00
Link Assy, Accelerator
[08.1988 - 01.1990] BJ60 |
78100-90K00 |
— | ||
|
78105
|
78105
78105-90A01
Rod Sub-Assy, Accelerator Connecting, No.1
[08.1988 - 01.1990] BJ60 |
78105-90A01 |
— | ||
|
78106A
|
78106A
78106-90A01
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1988 - 01.1990] BJ60 |
78106-90A01 |
— | ||
|
78111
|
78111
78111-95110 Pedal, Accelerator[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
78111-95110 |
from US $8.42 |
||
|
78118A
|
78118A
78118-90K00
Stopper, Accelerator Pedal
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
78118-90K00 |
— | ||
| replacement | |||||
|
78118A
|
78118A
45619-14010 Cover, Knuckle Stopper[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
45619-14010 |
US $9.68 |
||
|
78120B
|
78120B
90386-08155 Bush (For Accelerator Pedal Rod)[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD |
90386-08155 |
US $1.14 |
||
|
78120E
|
78120E
90508-26046
Spring (For Accelerator Pedal Rod)
[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD |
90508-26046 |
— | ||
|
78120G
|
78120G
78120-90A05 Rod Assy, Accelerator Pedal[08.1987 - 01.1990] BJ60,HJ6#..RHD; FJ62..RHD W(THROTTLE CONTROL KNOB) |
78120-90A05 |
US $132.50 |
||
|
78180P
|
78180P
78180-90A09 Wire Assy, AcceleratorACCELERATOR CONTROL [08.1988 - 01.1990] BJ60 |
78180-90A09 |
US $53.29 |
||
|
78180P
|
78180P
78180-90A30 Wire Assy, Accelerator[08.1987 - 08.1988] BJ60..RHD |
78180-90A30 |
US $47.17 |
||
|
78183B
|
78183B
78183-90A00
Clamp, Accelerator Control Cable
[08.1987 - 08.1988] BJ60 |
78183-90A00 |
— | ||
|
78184B
|
78184B
78184-90A01 Channel, Accelerator Idle Adjusting Stopper[08.1987 - 01.1990] BJ60,FJ62,HJ60..RHD |
78184-90A01 |
US $29.27 |
||
|
78410
|
78410
78410-90A00
Cable Assy, Throttle Control
[08.1987 - 01.1988] BJ60,FJ62,HJ6#..RHD |
78410-90A00 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A09
Cable Assy, Throttle Control
[08.1987 - 01.1988] BJ60,FJ62,HJ6#..RHD |
78410-90A09 |
— | ||
|
9017920005
|
9017920005
90179-20005
New Genuine Part
|
90179-20005 |
— | ||
|
9046208042
|
9046208042
90462-08042
Clamp, Cord
|
90462-08042 |
— | ||
| replacement | |||||
|
9046208042
|
9046208042
19242-15120
Clamp, Cord
|
19242-15120 |
— | ||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.50 |
||
|
9113140840
|
9113140840
91131-40840
Bolt, Accelerator Pedal Stopper
|
91131-40840 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
