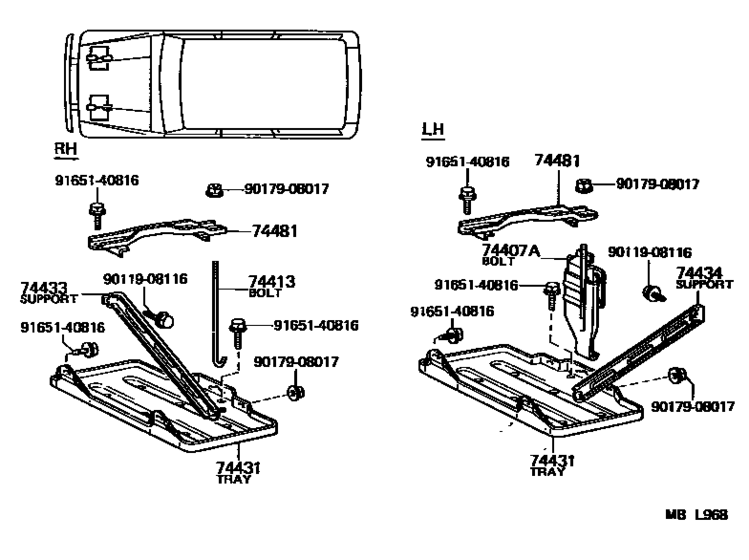

Battery Carrier ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74407A
|
74407A
74407-90A00
Bolt Sub-Assy, Battery Clamp
[08.1987 - 01.1990] BJ60 |
74407-90A00 |
— | ||
|
74431
|
74431
74431-90A00 Carrier, Battery[08.1987 - 03.1992] HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD |
74431-90A00 |
from US $65.91 |
||
|
74434
|
74434
74434-90A00
Support, Battery Tray, Lh
[08.1987 - 01.1990] BJ60 |
74434-90A00 |
— | ||
|
74481
|
74481
74404-90A00 Plate Sub-Assy, Battery Set[08.1987 - 03.1992] HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD |
74404-90A00 |
from US $15.12 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
