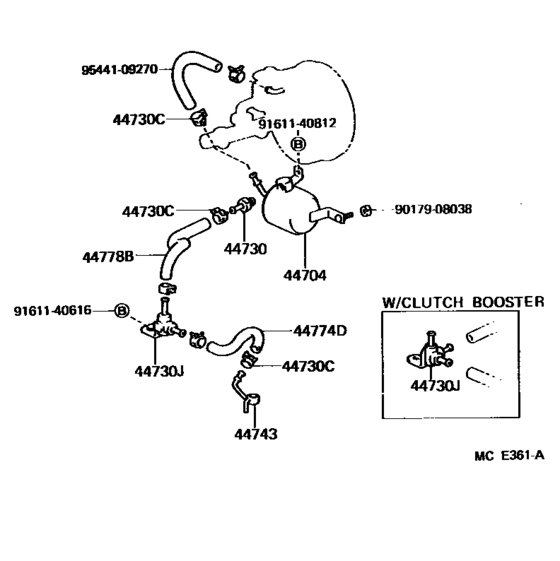

Brake Booster & Vacuum Tube ([08.1987 - 08.1988] (8708-8808)BJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-60050
Reservoir Sub-Assy, Vacuum
[08.1987 - 01.1990] BJ60,HJ61;HJ60..RHD |
44704-60050 |
— | ||
|
44730
|
44730
44730-60040 Booster Kit, Brake[08.1987 - 08.1988] BJ60,HJ6# |
44730-60040 |
US $77.93 |
||
|
44730
|
44730
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[08.1988 - 01.1990] BJ60,HJ6# |
44730-60050 |
from US $22.85 |
||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[08.1987 - 01.1990] BJ60,HJ61;HJ60..RHD |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1987 - 01.1990] BJ60,HJ61;HJ60..RHD |
96133-41500 |
from US $2.26 |
||
|
44730J
|
44730J
44799-60050
Way(For Booster Vacuum)
[08.1988 - 01.1990] BJ60 W(*ELC) OR W(AIR CONDITIONER) |
44799-60050 |
— | ||
|
44730J
|
44730J
44799-60060 Way(For Booster Vacuum)[08.1988 - 01.1990] BJ60 W(CLUTCH BOOSTER & *ELC) OR W(CLUTCH BOOSTER & AIR CONDITIONER) |
44799-60060 |
US $20.82 |
||
|
44730J
|
44730J
90412-09006
Way(For Booster Vacuum)
[08.1987 - 01.1990] BJ60..RHD |
90412-09006 |
— | ||
|
44730J
|
44730J
90413-09024 Way(For Booster Vacuum)[08.1987 - 01.1990] BJ60..RHD W(CLUTCH BOOSTER) |
90413-09024 |
US $19.07 |
||
|
44743
|
44743
90405-09026 Union(For Vacuum Pump)[08.1987 - 08.1988] BJ60 |
90405-09026 |
US $10.92 |
||
|
44743
|
44743
90405-09102 Union(For Vacuum Pump)[08.1987 - 08.1988] BJ60 W(*ELC) OR W(AIR CONDITIONER) |
90405-09102 |
US $8.30 |
||
|
44774D
|
44774D
90445-17908
Hose, Vacuum Pump
[08.1987 - 01.1990] BJ60 |
90445-17908 |
— | ||
| replacement | |||||
|
44774D
|
44774D
31438-60050
Hose, No.2(For Clutch Booster Vacuum)
[08.1987 - 01.1990] BJ60 |
31438-60050 |
— | ||
|
44778B
|
44778B
90445-17908
Hose, Vacuum Pump
[08.1987 - 08.1988] BJ60..RHD |
90445-17908 |
— | ||
| replacement | |||||
|
44778B
|
44778B
31438-60050
Hose, No.2(For Clutch Booster Vacuum)
[08.1987 - 08.1988] BJ60..RHD |
31438-60050 |
— | ||
|
44778B
|
44778B
95441-09240 Hose, Way To Check ValveNO.1(FOR CLUTCH BOOSTER VACUUM) [08.1987 - 08.1988] BJ60..LHD; BJ60..RHD W(CLUTCH BOOSTER) |
95441-09240 |
US $10.77 |
||
| replacement | |||||
|
44778B
|
44778B
95446-09300 Hose, Solenoid To Vacuum Tube[08.1987 - 08.1988] BJ60..LHD; BJ60..RHD W(CLUTCH BOOSTER) |
95446-09300 |
US $11.65 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9544109270
|
9544109270
95441-09270
Hose, No.2(For Clutch Booster Vacuum)
|
95441-09270 |
— | ||
| replacement | |||||
|
9544109270
|
9544109270
95446-09270 Hose, No.1(For Clutch Booster Vacuum)VACUUM, NO.1 |
95446-09270 |
US $3.67 |
||
