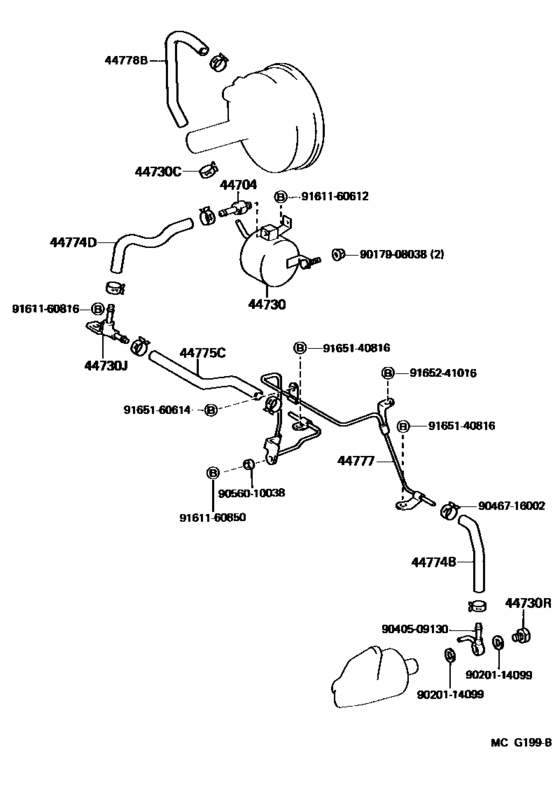

Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )BJ60) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-60050
Reservoir Sub-Assy, Vacuum
[08.1987 - 01.1990] BJ60,HJ61;HJ60..RHD |
44704-60050 |
— | ||
|
44730
|
44730
44730-60040 Booster Kit, Brake[08.1987 - 08.1988] BJ60,HJ6# |
44730-60040 |
US $72.16 |
||
|
44730
|
44730
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[08.1988 - 01.1990] BJ60,HJ6# |
44730-60050 |
from US $16.33 |
||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[08.1987 - 01.1990] BJ60,HJ61;HJ60..RHD |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1987 - 01.1990] BJ60,HJ61;HJ60..RHD |
96133-41500 |
from US $1.79 |
||
|
44730J
|
44730J
44799-60050
Way(For Booster Vacuum)
[08.1988 - 01.1990] BJ60 W(*ELC) OR W(AIR CONDITIONER) |
44799-60050 |
— | ||
|
44730J
|
44730J
44799-60060 Way(For Booster Vacuum)[08.1988 - 01.1990] BJ60 W(CLUTCH BOOSTER & *ELC) OR W(CLUTCH BOOSTER & AIR CONDITIONER) |
44799-60060 |
US $20.82 |
||
|
44730J
|
44730J
90412-09006
Way(For Booster Vacuum)
[08.1987 - 01.1990] BJ60..RHD |
90412-09006 |
— | ||
|
44730J
|
44730J
90413-09024 Way(For Booster Vacuum)[08.1987 - 01.1990] BJ60..RHD W(CLUTCH BOOSTER) |
90413-09024 |
US $19.07 |
||
|
44730R
|
44730R
90401-09001 Bolt, Union(For Vacuum Pump Union)[08.1988 - 01.1990] BJ60 |
90401-09001 |
from US $2.20 |
||
|
44774B
|
44774B
44774-60070 Hose, Union To Connector[08.1988 - 01.1990] BJ60 |
44774-60070 |
US $14.12 |
||
|
44774D
|
44774D
90445-17908
Hose, Vacuum Pump
[08.1987 - 01.1990] BJ60 |
90445-17908 |
— | ||
| replacement | |||||
|
44774D
|
44774D
31438-60050
Hose, No.2(For Clutch Booster Vacuum)
[08.1987 - 01.1990] BJ60 |
31438-60050 |
— | ||
|
44775C
|
44775C
44775-60030 Hose, Connector To WayCONNECTOR TO WAY [08.1988 - 01.1990] BJ60 |
44775-60030 |
US $27.08 |
||
|
44777
|
44777
44777-60120 Connector, Vacuum Hose, No.1VACUUM HOSE, NO.1 [08.1988 - 01.1990] BJ60 |
44777-60120 |
US $30.87 |
||
|
44778B
|
44778B
90445-17908
Hose, Vacuum Pump
[08.1987 - 08.1988] BJ60..RHD |
90445-17908 |
— | ||
| replacement | |||||
|
44778B
|
44778B
31438-60050
Hose, No.2(For Clutch Booster Vacuum)
[08.1987 - 08.1988] BJ60..RHD |
31438-60050 |
— | ||
|
44778B
|
44778B
95441-09240 Hose, Way To Check ValveNO.1(FOR CLUTCH BOOSTER VACUUM) [08.1987 - 08.1988] BJ60..LHD; BJ60..RHD W(CLUTCH BOOSTER) |
95441-09240 |
US $10.77 |
||
| replacement | |||||
|
44778B
|
44778B
95446-09300 Hose, Solenoid To Vacuum Tube[08.1987 - 08.1988] BJ60..LHD; BJ60..RHD W(CLUTCH BOOSTER) |
95446-09300 |
US $6.88 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.74 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.41 |
||
|
9040509130
|
9040509130
90405-09130 Union(For Vacuum Pump) |
90405-09130 |
US $6.99 |
||
|
9046716002
|
9046716002
90467-16002
Clip(Vaccum Transmitting Hose No.1)
|
90467-16002 |
— | ||
| replacement | |||||
|
9046716002
|
9046716002
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $1.79 |
||
|
9056010038
|
9056010038
90560-10038 New Genuine Part |
90560-10038 |
US $1.46 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.74 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $1.51 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.91 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $0.83 |
||
|
9165241016
|
9165241016
91652-41016 New Genuine Part |
91652-41016 |
US $2.48 |
||
| replacement | |||||
|
9165241016
|
9165241016
91651-61016 Bolt |
91651-61016 |
US $1.02 |
||
