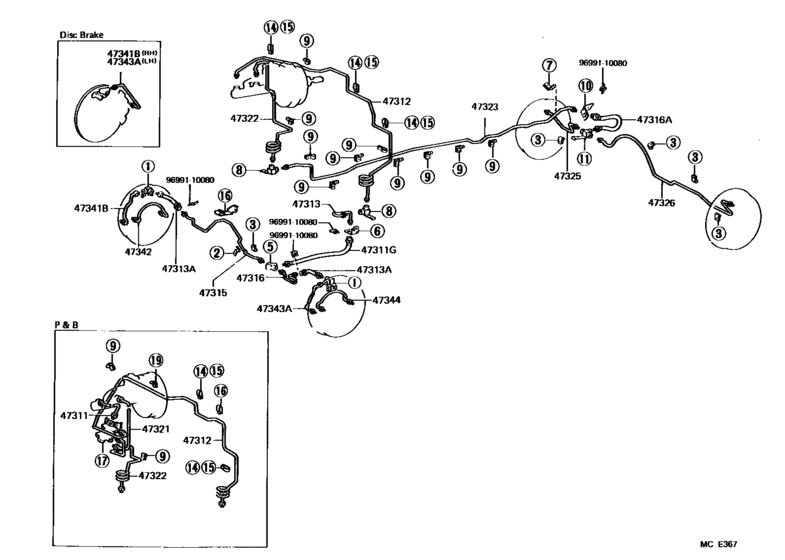

Brake Tube & Clamp ([08.1987 - ] (8708- )BJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-60450
Tube, Front Brake, No.1
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
47311-60450 |
— | ||
|
47311G
|
47311G
96940-34305 Hose, Flexible(For Brake Tube)[08.1987 - 01.1990] BJ60 |
96940-34305 |
from US $23.35 |
||
|
47312
|
47312
47312-60251 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1987 - 01.1990] BJ60..RHD |
47312-60251 |
US $34.51 |
||
|
47312
|
47312
47312-60262 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1987 - 01.1990] BJ60..RHD W(FRONT DISC BRAKE) |
47312-60262 |
US $34.51 |
||
|
47313
|
47313
47313-60111 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1987 - 01.1990] BJ60 |
47313-60111 |
US $8.01 |
||
|
47313A
|
47313A
96940-39855 Hose, Flexible, No.1(For Front)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
96940-39855 |
from US $16.49 |
||
|
47315
|
47315
47315-60274 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [08.1987 - 01.1990] BJ60 |
47315-60274 |
US $15 |
||
|
47316
|
47316
47316-60153 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1987 - 01.1990] BJ60 |
47316-60153 |
US $8.01 |
||
|
47316A
|
47316A
96940-33805 Hose, Clutch, No.1[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
96940-33805 |
from US $22.18 |
||
|
47321
|
47321
47321-60120
Tube, Rear Brake, No.1
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
47321-60120 |
— | ||
|
47322
|
47322
47322-60151 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [08.1987 - 01.1990] BJ60..RHD |
47322-60151 |
US $20.09 |
||
|
47322
|
47322
47322-60162 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [08.1987 - 01.1990] BJ60..RHD W(FRONT DISC BRAKE) |
47322-60162 |
US $18.05 |
||
|
47323
|
47323
47323-60031
Tube, Rear Brake, No.3
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
47323-60031 |
— | ||
|
47325
|
47325
47325-60100
Tube, Rear Brake, No.5
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
47325-60100 |
— | ||
|
47326
|
47326
47326-60110
Tube, Rear Brake, No.6
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
47326-60110 |
— | ||
|
47341B
|
47341B
47341-60021
Tube, Wheel Cylinder, Front Rh No.1
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
47341-60021 |
— | ||
|
47341B
|
47341B
47341-60031 Tube, Wheel Cylinder, Front Rh No.1[08.1987 - 03.1990] BJ60,FJ62,HJ60..GEN W(FRONT DISC BRAKE) |
47341-60031 |
from US $4.66 |
||
|
47342
|
47342
47342-60011 Tube, Wheel Cylinder, Front Rh No.2WHEEL CYLINDER, FRONT RH NO.2 [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
47342-60011 |
US $9.61 |
||
|
47343A
|
47343A
47343-60011
Tube, Wheel Cylinder, Front Lh No.1
[08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
47343-60011 |
— | ||
|
47343A
|
47343A
47343-60021 Tube, Wheel Cylinder, Front Lh No.1[08.1987 - 03.1990] BJ60,FJ62,HJ60..GEN W(FRONT DISC BRAKE) |
47343-60021 |
from US $4.64 |
||
|
47344
|
47344
47342-60011 Tube, Wheel Cylinder, Front Rh No.2WHEEL CYLINDER, FRONT RH NO.2 [08.1987 - 03.1992] BJ60,FJ62,HJ60..GEN |
47342-60011 |
US $9.61 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
