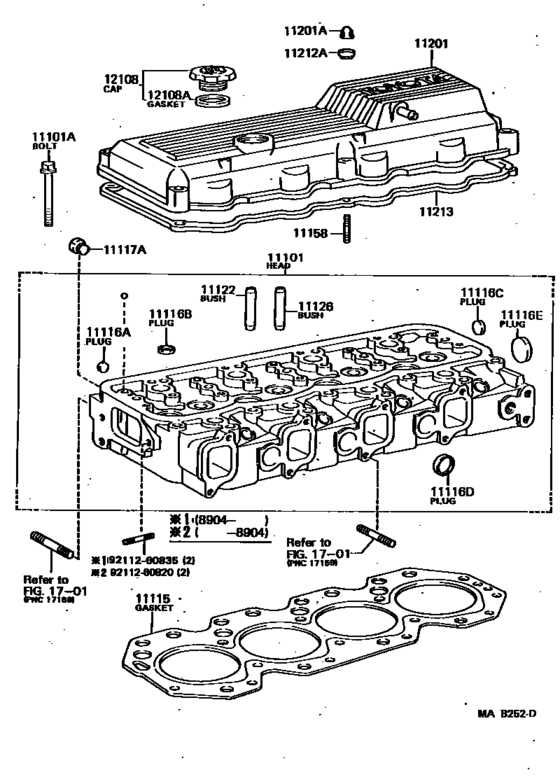

Cylinder Head ([08.1988 - ] (8808- )3B) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58013
Head Sub-Assy, Cylinder
[08.1987 - 08.1988] 3B..BJ60 |
11101-58013 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-58014
Head Sub-assy, Cylinder
[08.1987 - 08.1988] 3B..BJ60 |
11101-58014 |
— | ||
|
11101
|
11101
90201-14022
New Genuine Part
[08.1987 - 08.1988] 3B..BJ60 |
90201-14022 |
— | ||
|
11101
|
11101
11101-58050
Head Sub-Assy, Cylinder
[08.1988 - 01.1990] 3B..BJ60 |
11101-58050 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-58051
Head Sub-Assy, Cylinder
[08.1988 - 01.1990] 3B..BJ60 |
11101-58051 |
— | ||
|
11101A
|
11101A
90910-02046 Bolt(For Cylinder Head Set)[08.1987 - 08.1988] 3B..BJ60 |
90910-02046 |
from US $7.02 |
||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[08.1988 - 01.1990] 3B..BJ60 |
90910-02084 |
from US $5.50 |
||
|
11115
|
11115
11115-58040
Gasket, Cylinder Head
[08.1987 - 08.1988] 3B..BJ60 T=1.55 |
11115-58040 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58110 Gasket, Cylinder Head[08.1987 - 08.1988] 3B..BJ60 T=1.55 |
11115-58110 |
from US $93.31 |
||
|
11115
|
11115
11115-58080
Gasket, Cylinder Head
[08.1988 - 01.1990] 3B..BJ60 T=1.50 |
11115-58080 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58081 Gasket, Cylinder Head[08.1988 - 01.1990] 3B..BJ60 T=1.50 |
11115-58081 |
from US $93.42 |
||
|
11116A
|
11116A
96411-41200 Plug, Tight, No.1[08.1987 - 01.1990] 3B..BJ60 |
96411-41200 |
US $2.48 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[08.1987 - 08.1988] 3B..BJ60 |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
90331-21001 Plug, Tight, No.3[08.1987 - 01.1990] 3B..BJ60 |
90331-21001 |
US $1.40 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[08.1987 - 01.1990] 3B..BJ60 |
96411-42800 |
from US $2.70 |
||
|
11116E
|
11116E
96411-44000 Plug, Tight, No.1[08.1987 - 08.1988] 3B..BJ60 |
96411-44000 |
from US $3.53 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[08.1987 - 08.1988] 3B..BJ60..GEN W(HEATER) |
90345-54005 |
from US $2.75 |
||
|
11122
|
11122
11122-56021
Bush, Intake Valve Guide
[08.1987 - 08.1988] 3B..BJ60 STD |
11122-56021 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-56030 Bush, Intake Valve Guide[08.1987 - 08.1988] 3B..BJ60 STD |
11122-56030 |
from US $6.78 |
||
|
11122
|
11122
11122-56030 Bush, Intake Valve Guide[08.1988 - 02.1990] 3B..BJ60 STD |
11122-56030 |
from US $6.78 |
||
|
11126
|
11126
11122-56030 Bush, Intake Valve Guide[08.1988 - 02.1990] 3B..BJ60 STD |
11122-56030 |
from US $6.78 |
||
|
11158
|
11158
90116-08282 Bolt, Stud(For Head To Cylinder Head Cover)[08.1988 - 02.1990] 3B..BJ60 L=60 |
90116-08282 |
US $3.20 |
||
| replacement | |||||
|
11158
|
11158
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[08.1988 - 02.1990] 3B..BJ60 L=60 |
92112-60850 |
US $1 |
||
|
11201
|
11201
11201-56100 Cover Sub-Assy, Cylinder Head[08.1988 - 01.1989] 3B..BJ60 |
11201-56100 |
US $216.94 |
||
| replacements | |||||
|
11201
|
11201
91511-B0850 Bolt[08.1988 - 01.1989] 3B..BJ60 |
91511-B0850 |
from US $1.35 |
||
|
11201
|
11201
11201-58050 Cover Sub-Assy, Cylinder Head[08.1988 - 01.1989] 3B..BJ60 |
11201-58050 |
US $154.04 |
||
|
11201
|
11201
11213-58030 Gasket, Cylinder Head Cover[08.1988 - 01.1989] 3B..BJ60 |
11213-58030 |
from US $11.40 |
||
|
11201
|
11201
90179-08025 Nut, Cap(For Cylinder Head Cover)[08.1988 - 01.1989] 3B..BJ60 |
90179-08025 |
US $0.96 |
||
|
11201
|
11201
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[08.1988 - 01.1989] 3B..BJ60 |
92112-60850 |
US $1 |
||
|
11201
|
11201
11201-56101
Cover Sub-Assy, Cylinder Head
[10.1989 - 01.1990] 3B..BJ60 |
11201-56101 |
— | ||
| replacements | |||||
|
11201
|
11201
91511-B0850 Bolt[10.1989 - 01.1990] 3B..BJ60 |
91511-B0850 |
from US $1.35 |
||
|
11201
|
11201
11201-58050 Cover Sub-Assy, Cylinder Head[10.1989 - 01.1990] 3B..BJ60 |
11201-58050 |
US $154.04 |
||
|
11201
|
11201
11213-58030 Gasket, Cylinder Head Cover[10.1989 - 01.1990] 3B..BJ60 |
11213-58030 |
from US $11.40 |
||
|
11201
|
11201
90179-08025 Nut, Cap(For Cylinder Head Cover)[10.1989 - 01.1990] 3B..BJ60 |
90179-08025 |
US $0.96 |
||
|
11201
|
11201
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[10.1989 - 01.1990] 3B..BJ60 |
92112-60850 |
US $1 |
||
|
11201
|
11201
11211-56031
Cover Sub-Assy, Cylinder Head
[08.1987 - 08.1988] 3B..BJ60 |
11211-56031 |
— | ||
|
11201A
|
11201A
11295-46010
Nut, Cap(For Cylinder Head Cover)
[08.1987 - 08.1988] 3B..BJ60 |
11295-46010 |
— | ||
|
11201A
|
11201A
90176-08038
Nut, Cap(For Cylinder Head Cover)
[08.1988 - 01.1990] 3B..BJ60 |
90176-08038 |
— | ||
| replacement | |||||
|
11201A
|
11201A
90179-08159 Nut, Cap(For Cylinder Head Cover)[08.1988 - 01.1990] 3B..BJ60 |
90179-08159 |
US $1.51 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[08.1988 - 01.1989] 3B..BJ60 |
11228-56010 |
from US $1.56 |
||
|
11213
|
11213
11213-56012 Gasket, Cylinder Head Cover[08.1987 - 08.1988] 3B..BJ60 |
11213-56012 |
from US $21.77 |
||
|
11213
|
11213
11213-56030 Gasket, Cylinder Head Cover[08.1988 - 01.1989] 3B..BJ60 |
11213-56030 |
US $20.22 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[08.1987 - 01.1990] 3B..BJ60; 12HT,2H..HJ6# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1987 - 01.1990] 3B..BJ60; 12HT,2H..HJ6# |
12180-55010 |
from US $7.98 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1987 - 01.1990] 3B..BJ60; 12HT,2H..HJ6# |
90430-37140 |
from US $1.05 |
||
|
9211260820
|
9211260820
92112-60820 Bolt, Stud(For Manifold To Carburetor) |
92112-60820 |
US $1.65 |
||
|
9211260836
|
9211260836
92112-60836
New Genuine Part
|
92112-60836 |
— | ||
