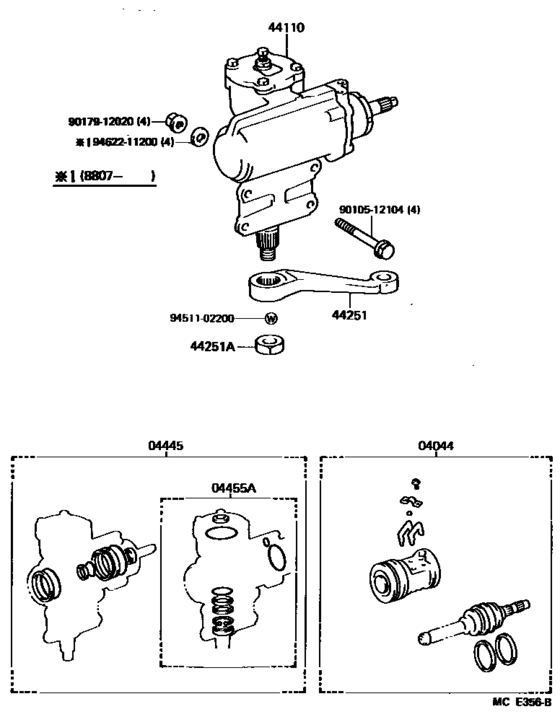

Front Steering Gear & Link ([08.1987 - ] POWER STEERING (8708- )RHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04044
|
04044
04044-60140 Warm Kit, Power Steering[08.1987 - 01.1990] HJ61..4FC;HJ61..5F..GX;FJ62..4FC..VX..ARL;BJ60,FJ62,HJ60..RHD..(GX,STD) |
04044-60140 |
US $391.66 |
||
|
04445
|
04445
04445-60030 Gasket Kit, Power Steering Gear(For Recirculating Ball)[08.1987 - 03.1992] HJ60..LUB;HJ61..4FC;HJ61..5F..GX;HJ60..RHD..STD;BJ60,FJ62..GEN,ME;FJ62..4FC..VX..A RL;FJ62..(GX,STD)..ARL |
04445-60030 |
from US $121.36 |
||
|
04455A
|
04455A
04455-60020
Gasket Kit, Power Steering Cross Shaft Overhole
[08.1987 - 03.1992] HJ60..LUB;HJ61..4FC;HJ61..5F..GX;HJ60..RHD..STD;BJ60,FJ62..GEN,ME;FJ62..4FC..VX..A RL;FJ62..(GX,STD)..ARL |
04455-60020 |
— | ||
|
44110
|
44110
44110-60150
Gear Assy, Power Steering
[08.1987 - 01.1990] BJ60,FJ62,HJ6#..RHD |
44110-60150 |
— | ||
|
44251
|
44251
45411-60090
Arm, Pitman
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
45411-60090 |
— | ||
|
44251A
|
44251A
90170-22058 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90170-22058 |
from US $2.07 |
||
|
9010512104
|
9010512104
90105-12104 BOLT |
90105-12104 |
US $6.99 |
||
|
9017912020
|
9017912020
90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing) |
90179-12020 |
US $2.87 |
||
|
9451102200
|
9451102200
94511-02200 WASHER |
94511-02200 |
US $1.97 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.58 |
