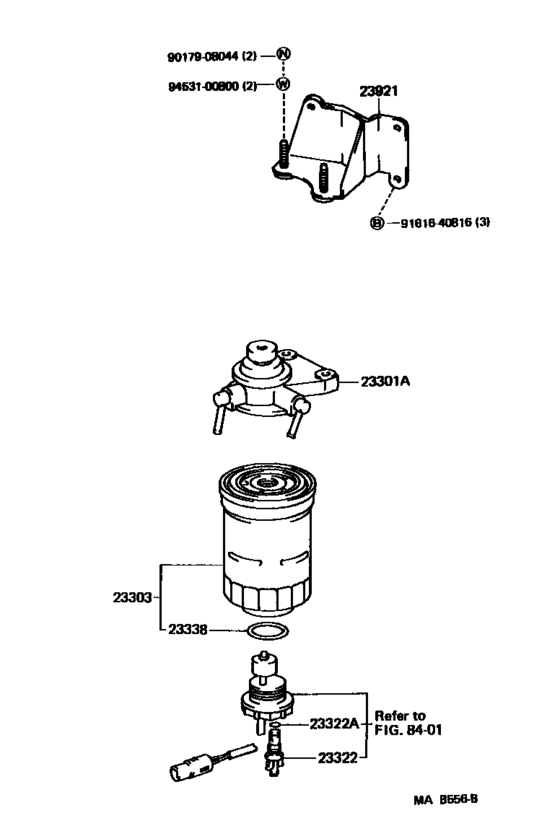

Fuel Filter ([08.1988 - ] (8808- )3B) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23301A
|
23301A
23301-54160 Cap Assy, Fuel Filter[08.1988 - 01.1990] 3B..BJ60 |
23301-54160 |
US $186.37 |
||
|
23303
|
23303
23303-56031 Element Sub-Assy, Fuel Filter[08.1987 - 08.1988] 3B..BJ60 |
23303-56031 |
US $65.69 |
||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[08.1988 - 01.1990] 3B..BJ60 |
23303-64010 |
from US $51.47 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[08.1988 - 01.1990] 3B..BJ60 |
23303-64010-00 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[08.1988 - 01.1990] 3B..BJ60 |
23322-64010 |
from US $7.18 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[08.1988 - 01.1990] 3B..BJ60 |
23344-54010 |
from US $1.54 |
||
|
23338
|
23338
23338-54010 Gasket(For Warning Switch)[08.1987 - 08.1988] 3B..BJ60; 12HT,2H..HJ6# |
23338-54010 |
US $3.32 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[08.1988 - 01.1990] 3B..BJ60 |
23344-64010 |
from US $1.54 |
||
|
23921
|
23921
23921-58020 Support, Fuel FilterFUEL FILTER [08.1988 - 01.1990] 3B..BJ60 |
23921-58020 |
US $54.31 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.20 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
