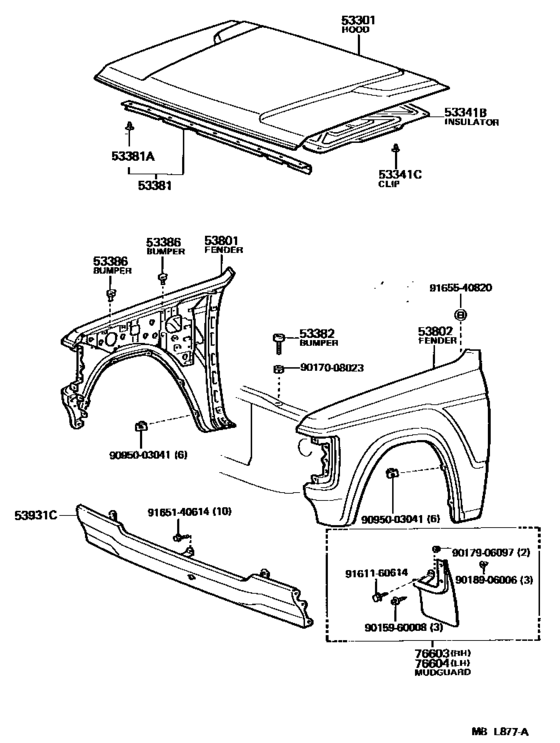

Hood & Front Fender ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-90A01
Hood Sub-Assy
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..ARL,GEN |
53301-90A01 |
— | ||
|
53341B
|
53341B
53341-90A00 Insulator, Hood[08.1987 - 03.1992] BJ60,FJ62,HJ60 |
53341-90A00 |
from US $185.52 |
||
|
53341C
|
53341C
90467-09014 Clip(For Hood Insulator)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90467-09014 |
from US $0.78 |
||
|
53381
|
53381
53381-90A00
Seal, Hood To Radiator Support
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
53381-90A00 |
— | ||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90467-08011-83 |
US $0.51 |
||
|
53382
|
53382
53382-90K01 Bumper, Hood, Front[06.1988 - 08.1990] BJ60,FJ62,HJ6# |
53382-90K01 |
from US $6.59 |
||
|
53386
|
53386
53382-30060
Bumper, Hood, Rear
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
53382-30060 |
— | ||
| replacement | |||||
|
53386
|
53386
53384-60030 Bumper, Hood, Rear[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
53384-60030 |
from US $5.57 |
||
|
53801
|
53801
53801-90A85
Fender Sub-Assy, Front Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
53801-90A85 |
— | ||
|
53801
|
53801
53801-90G22 Fender Sub-Assy, Front RhFRONT RH [08.1987 - 08.1988] BJ60,FJ62,HJ60..MTM..GEN W(*STAC) |
53801-90G22 |
US $703.25 |
||
|
53802
|
53802
53802-90A63
Fender Sub-Assy, Front Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
53802-90A63 |
— | ||
|
53931C
|
53931C
53931-90A06
Panel, Front End
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
53931-90A06 |
— | ||
| replacement | |||||
|
53931C
|
53931C
53931-90A07
Panel, Front End
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
53931-90A07 |
— | ||
|
76603
|
76603
76603-69015
Mudguard Sub-Assy, Front Fender, Rh
[08.1987 - 01.1990] FJ62..ME;HJ60..RHD..STD;FJ62,HJ61..4FC..ARL;FJ62,HJ61..5F..GX..ARL;BJ60,FJ62..STD. .(ARL,GEN) |
76603-69015 |
— | ||
|
76604
|
76604
76604-69015
Mudguard Sub-Assy, Front Fender, Lh
[08.1987 - 01.1990] FJ62..ME;HJ60..RHD..STD;FJ62,HJ61..4FC..ARL;FJ62,HJ61..5F..GX..ARL;BJ60,FJ62..STD. .(ARL,GEN) |
76604-69015 |
— | ||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.25 |
||
|
9017008023
|
9017008023
90170-08023
New Genuine Part
|
90170-08023 |
— | ||
| replacement | |||||
|
9017008023
|
9017008023
90170-08028 Nut |
90170-08028 |
US $3.11 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9095003041
|
9095003041
90950-03041 CASE |
90950-03041 |
from US $2.45 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
