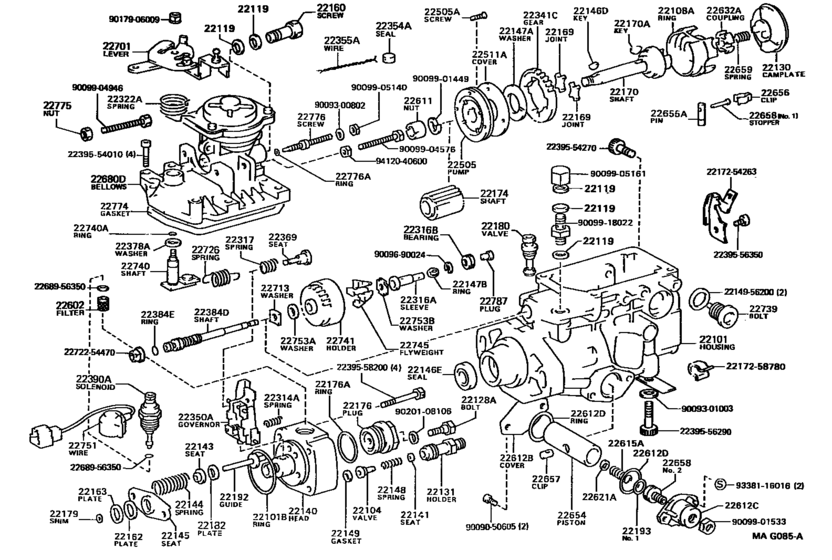

Injection Pump Body ([08.1988 - ] HIGH ALTITUDE COMPENSATOR (8808- )3B) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-54250 Housing Sub-Assy, Injection PumpINJECTION PUMP [08.1988 - 01.1990] 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR) |
22101-54250 |
US $160.74 |
||
|
22101
|
22101
22101-54770 Housing Sub-Assy, Injection Pump[08.1988 - 01.1990] 3B..BJ60 |
22101-54770 |
US $170.39 |
||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[08.1988 - 01.1990] 3B..BJ60 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-54060 Valve Sub-Assy, Injection Pump Delivery[08.1988 - 01.1990] 3B..BJ60 |
22104-54060 |
from US $53.44 |
||
|
22104
|
22104
22104-77020
Valve Sub-Assy, Injection Pump Delivery
[08.1987 - 08.1988] 3B..BJ60 |
22104-77020 |
— | ||
|
22108A
|
22108A
22108-54010
Ring Sub-Assy, Roller
[08.1988 - 01.1990] 3B..BJ60 |
22108-54010 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.1988 - 01.1990] 3B..BJ60 |
90201-12109 |
from US $1.25 |
||
|
22128A
|
22128A
22128-54010
Bolt, Distributive Head
[08.1988 - 01.1990] 3B..BJ60 |
22128-54010 |
— | ||
|
22130
|
22130
22130-58200
Camplate Sub-Assy, Face
[08.1988 - 01.1990] 3B..BJ60 |
22130-58200 |
— | ||
|
22131
|
22131
22131-54110
Holder, Delivery Valve
[08.1988 - 01.1990] 3B..BJ60 |
22131-54110 |
— | ||
|
22131
|
22131
22131-77020 Holder, Delivery Valve[08.1987 - 08.1988] 3B..BJ60 |
22131-77020 |
US $10.13 |
||
|
22140
|
22140
22140-58690
Head Sub-Assy, Distributive Pump
[08.1988 - 01.1990] 3B..BJ60 |
22140-58690 |
— | ||
|
22141
|
22141
22141-54010
Seat, Delivery Valve Spring
[08.1988 - 01.1990] 3B..BJ60 |
22141-54010 |
— | ||
|
22143
|
22143
22143-54010
Seat, Spring Upper
[08.1988 - 01.1990] 3B..BJ60 |
22143-54010 |
— | ||
|
22143
|
22143
22143-77020
Seat, Spring Upper
[08.1987 - 08.1988] 3B..BJ60 |
22143-77020 |
— | ||
|
22144
|
22144
22144-46010
Spring, Pump Plunger
[08.1987 - 08.1988] 3B..BJ60 |
22144-46010 |
— | ||
|
22144
|
22144
22144-54180 Spring, Pump Plunger[08.1988 - 01.1990] 3B..BJ60 |
22144-54180 |
US $8.27 |
||
|
22145
|
22145
22145-46010
Seat, Spring, Lower
[08.1987 - 08.1988] 3B..BJ60 |
22145-46010 |
— | ||
|
22145
|
22145
22145-54010
Seat, Spring, Lower
[08.1988 - 01.1990] 3B..BJ60 |
22145-54010 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[08.1988 - 01.1990] 3B..BJ60 |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[08.1988 - 01.1990] 3B..BJ60 |
22544-64740 |
from US $3.32 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[08.1988 - 01.1990] 3B..BJ60 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 |
22147-54290 |
— | ||
|
22148
|
22148
22148-46010
Spring, Delivery Valve
[08.1987 - 08.1988] 3B..BJ60 |
22148-46010 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[08.1988 - 01.1990] 3B..BJ60 |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-54010 Gasket, Delivery Valve[08.1988 - 01.1990] 3B..BJ60 |
22149-54010 |
US $1.25 |
||
|
22149
|
22149
22149-76010 Gasket, Delivery Valve[08.1987 - 08.1988] 3B..BJ60 |
22149-76010 |
US $4.12 |
||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[08.1988 - 01.1990] 3B..BJ60 |
22160-64010 |
US $25.90 |
||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[08.1988 - 01.1990] 3B..BJ60 |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[08.1988 - 01.1990] 3B..BJ60 |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[08.1988 - 01.1990] 3B..BJ60 |
22169-54180 |
— | ||
|
22170
|
22170
22170-54180 Shaft Sub-Assy, Drive[08.1988 - 01.1990] 3B..BJ60 |
22170-54180 |
US $47.17 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[08.1988 - 01.1990] 3B..BJ60 |
90099-13017 |
US $8.80 |
||
|
22174
|
22174
22174-47010
Shaft, Spline
[08.1987 - 08.1988] 3B..BJ60 |
22174-47010 |
— | ||
|
22174
|
22174
22174-58201
Shaft, Spline
[08.1988 - 01.1990] 3B..BJ60 |
22174-58201 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[08.1988 - 01.1990] 3B..BJ60 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[08.1988 - 01.1990] 3B..BJ60 |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[08.1988 - 01.1990] 3B..BJ60 |
22193-54772 |
from US $2.62 |
||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-58200 Valve Sub-Assy, Regulator[08.1988 - 01.1990] 3B..BJ60 |
22180-58200 |
US $90.90 |
||
|
22182
|
22182
22182-46010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.10 |
22182-46010 |
— | ||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1990] 3B..BJ60 T=0.5 |
22182-54010 |
— | ||
|
22182
|
22182
22183-46010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.20 |
22183-46010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1990] 3B..BJ60 T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-46010 Plate, Tappet Adjusting Shim[08.1987 - 08.1988] 3B..BJ60 T=0.30 |
22184-46010 |
US $2.33 |
||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1990] 3B..BJ60 T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-46010 Plate, Tappet Adjusting Shim[08.1987 - 08.1988] 3B..BJ60 T=0.40 |
22185-46010 |
US $2.33 |
||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1990] 3B..BJ60 T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-46010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.50 |
22186-46010 |
— | ||
|
22182
|
22182
22186-48010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.15 |
22186-48010 |
— | ||
| replacement | |||||
|
22182
|
22182
22185-48010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.15 |
22185-48010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1990] 3B..BJ60 T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-46010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.60 |
22187-46010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1990] 3B..BJ60 T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-46010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.70 |
22188-46010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[08.1988 - 01.1990] 3B..BJ60 T=2.0 |
22188-54010 |
US $4.14 |
||
|
22182
|
22182
22189-46010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.80 |
22189-46010 |
— | ||
|
22182
|
22182
22189-48031
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=0.90 |
22189-48031 |
— | ||
|
22182
|
22182
22189-48032
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=1.00 |
22189-48032 |
— | ||
|
22182
|
22182
22189-48033
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=1.10 |
22189-48033 |
— | ||
|
22182
|
22182
22189-48034
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=1.20 |
22189-48034 |
— | ||
|
22182
|
22182
22189-48035
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=1.30 |
22189-48035 |
— | ||
|
22182
|
22182
22189-48036
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 3B..BJ60 T=1.40 |
22189-48036 |
— | ||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[08.1988 - 01.1990] 3B..BJ60 |
22192-54010 |
US $11.97 |
||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[08.1988 - 01.1990] 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22193-55031 |
— | ||
|
22193
|
22193
22193-64750 Ring, O(For Lever Connecting Pin)[08.1988 - 01.1990] 3B..BJ60; 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22193-64750 |
from US $0.84 |
||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[08.1988 - 01.1990] 3B..BJ60 |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-64640
Sleeve, Governor
[08.1988 - 01.1990] 3B..BJ60 MARK 23 |
22316-64640 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[08.1988 - 01.1990] 3B..BJ60 |
90099-10148 |
— | ||
|
22317
|
22317
22317-54010
Spring, Governor Domper
[08.1988 - 01.1990] 3B..BJ60 K=0.2,L=6.5 |
22317-54010 |
— | ||
|
22322A
|
22322A
22322-54450
Spring, Return
[08.1988 - 01.1990] 3B..BJ60 |
22322-54450 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[08.1988 - 01.1990] 3B..BJ60 |
22341-54010 |
— | ||
|
22350A
|
22350A
22350-58200
Governor Assy, Torque Control
[08.1988 - 01.1990] 3B..BJ60 |
22350-58200 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[08.1988 - 01.1990] 3B..BJ60 |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[08.1988 - 01.1990] 3B..BJ60 |
22355-78030 |
from US $1.20 |
||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[08.1988 - 01.1990] 3B..BJ60 |
22369-54010 |
— | ||
|
22378A
|
22378A
22113-77090
Washer, Drain Screw
[08.1988 - 01.1990] 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22113-77090 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[08.1988 - 01.1990] 3B..BJ60; 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22378-64010 |
from US $0.42 |
||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[08.1988 - 01.1990] 3B..BJ60 |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[08.1988 - 01.1990] 3B..BJ60 |
90099-14049 |
US $2.15 |
||
|
22390A
|
22390A
22390-6A510
Solenoid Assy, Fuel Cut
[08.1988 - 01.1990] 3B..BJ60 |
22390-6A510 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-6A511 Solenoid Assy, Fuel Cut[08.1988 - 01.1990] 3B..BJ60 |
22390-6A511 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[08.1988 - 01.1990] 3B..BJ60 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[08.1988 - 01.1990] 3B..BJ60 |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[08.1988 - 01.1990] 3B..BJ60 |
22511-58650 |
US $14.42 |
||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[08.1988 - 01.1990] 3B..BJ60 |
22602-56350 |
from US $10.31 |
||
|
22611
|
22611
22611-46010
Nut, Timer Round
[08.1987 - 08.1988] 3B..BJ60 |
22611-46010 |
— | ||
|
22611
|
22611
22611-58200
Nut, Timer Round
[08.1988 - 01.1990] 3B..BJ60 |
22611-58200 |
— | ||
|
22612B
|
22612B
22612-54010
Cover, Timer
[08.1988 - 01.1990] 3B..BJ60 |
22612-54010 |
— | ||
|
22612C
|
22612C
22612-54450
Cover, Timer
[08.1988 - 01.1990] 3B..BJ60 |
22612-54450 |
— | ||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[08.1988 - 01.1990] 3B..BJ60 |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[08.1988 - 01.1990] 3B..BJ60 |
22193-17840 |
from US $2.64 |
||
|
22615A
|
22615A
22615-54290
Spring, Timer Outer
[08.1988 - 01.1990] 3B..BJ60 K=2.30,L=37.9 |
22615-54290 |
— | ||
|
22621A
|
22621A
22621-54010
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.5,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22621-54010 |
— | ||
|
22621A
|
22621A
22622-54010
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=1.0,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22622-54010 |
— | ||
|
22621A
|
22621A
22624-54010
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.2,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54010 |
— | ||
|
22621A
|
22621A
22624-54800
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.6,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54800 |
— | ||
|
22621A
|
22621A
22624-54803
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.7,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54803 |
— | ||
|
22621A
|
22621A
22624-54804
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.8,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54804 |
— | ||
|
22621A
|
22621A
22624-54805
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.9,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54805 |
— | ||
|
22621A
|
22621A
22624-54806
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.3,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54806 |
— | ||
|
22621A
|
22621A
22625-54272
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.5; 3B..BJ60 T=0.5,W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22625-54272 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[08.1988 - 01.1990] 3B..BJ60 |
22632-54010 |
from US $49.10 |
||
|
22654
|
22654
22654-58200
Piston, Timer
[08.1988 - 01.1990] 3B..BJ60 |
22654-58200 |
— | ||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[08.1988 - 01.1990] 3B..BJ60 |
22655-54010 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[08.1988 - 01.1990] 3B..BJ60 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[08.1988 - 01.1990] 3B..BJ60 |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[08.1988 - 01.1990] 3B..BJ60 |
22657-54010 |
— | ||
|
22658
|
22658
22658-54010
Stopper, Timer
[08.1988 - 01.1990] 3B..BJ60 NO.1 |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840
Stopper, Timer
[08.1988 - 01.1990] 3B..BJ60 NO.1 |
22658-17840 |
— | ||
|
22658
|
22658
22658-54450
Stopper, Timer
[08.1988 - 01.1990] 3B..BJ60 NO.2 |
22658-54450 |
— | ||
|
22659
|
22659
22659-64150
Spring, Coupling
[08.1988 - 01.1990] 3B..BJ60 |
22659-64150 |
— | ||
|
22680D
|
22680D
22680-56310
Bellows Assy, Pneumatic
[08.1988 - 01.1990] 3B..BJ60 |
22680-56310 |
— | ||
|
22701
|
22701
22701-58202
Lever Sub-Assy, Adjusting
[08.1988 - 01.1990] 3B..BJ60 TYPE A=ANGLE OF 22 |
22701-58202 |
— | ||
|
22701
|
22701
22701-58203
Lever Sub-Assy, Adjusting
[08.1988 - 01.1990] 3B..BJ60 TYPE B=ANGLE OF 29.5 |
22701-58203 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=1.05 |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[08.1988 - 01.1990] 3B..BJ60 T=1.85 |
22717-54010 |
US $6.86 |
||
|
22726
|
22726
22726-58200
Spring, Speed Control
[08.1988 - 01.1990] 3B..BJ60 |
22726-58200 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[08.1988 - 01.1990] 3B..BJ60 |
22739-54020 |
— | ||
|
22740
|
22740
22740-58210
Shaft Sub-Assy, Governor Adjusting
[08.1988 - 01.1990] 3B..BJ60 |
22740-58210 |
— | ||
|
22740A
|
22740A
90099-14048
Bearing, Ball(For Governor Sleeve)
[08.1988 - 01.1990] 3B..BJ60 |
90099-14048 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[08.1988 - 01.1990] 3B..BJ60 |
22193-54770 |
from US $1.98 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[08.1988 - 01.1990] 3B..BJ60 |
22741-54020 |
— | ||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[08.1988 - 01.1990] 3B..BJ60 |
22745-54010 |
US $36.33 |
||
|
22751
|
22751
22751-54311 Wire Sub-Assy, Fuel Cut Solenoid[08.1988 - 01.1990] 3B..BJ60 |
22751-54311 |
US $7.86 |
||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[08.1988 - 01.1990] 3B..BJ60 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54290
Washer, Flyweight, No.1
[08.1988 - 01.1990] 3B..BJ60 |
22753-54290 |
— | ||
| replacement | |||||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[08.1988 - 01.1990] 3B..BJ60 |
22753-54020 |
US $1.54 |
||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[08.1988 - 01.1990] 3B..BJ60 |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[08.1988 - 01.1990] 3B..BJ60 |
22774-54270 |
from US $3.14 |
||
|
22775
|
22775
22775-77121
Nut, Rock
[08.1988 - 01.1990] 3B..BJ60 |
22775-77121 |
— | ||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[08.1988 - 01.1990] 3B..BJ60 |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[08.1988 - 01.1990] 3B..BJ60 |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[08.1988 - 01.1990] 3B..BJ60 |
22193-54771 |
US $1.27 |
||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=3.3 |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=3.4 |
22787-54027 |
— | ||
|
22787
|
22787
22787-64660
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=2.2 |
22787-64660 |
— | ||
|
22787
|
22787
22787-64661
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=2.3 |
22787-64661 |
— | ||
|
22787
|
22787
22787-64662
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=2.4 |
22787-64662 |
— | ||
|
22787
|
22787
22787-64663
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=2.5 |
22787-64663 |
— | ||
|
22787
|
22787
22787-64664
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=2.6 |
22787-64664 |
— | ||
|
22787
|
22787
22787-64665
Plug, Governor Sleeve
[08.1988 - 01.1990] 3B..BJ60 L=2.7 |
22787-64665 |
— | ||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
US $1.40 |
||
|
2217254263
|
2217254263
22172-54263
Clip, Connector Support, Solenoid
|
22172-54263 |
— | ||
|
2217258780
|
2217258780
22172-58780
Clip, Connector Support, Solenoid
|
22172-58780 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239554270
|
2239554270
22395-54270
Bolt, Suction Control Valve
|
22395-54270 |
— | ||
|
2239556290
|
2239556290
22395-56290
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56290 |
— | ||
|
2239556350
|
2239556350
22395-56350
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56350 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2268956350
|
2268956350
22689-56350 Washer(For Swivel Nipple) |
22689-56350 |
from US $0.70 |
||
|
2272254470
|
2272254470
22722-54470
Nut, Governor Shaft Rock
|
22722-54470 |
— | ||
|
9009050605
|
9009050605
90090-50605 New Genuine Part |
90090-50605 |
US $1.31 |
||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009301003
|
9009301003
90093-01003
New Genuine Part
|
90093-01003 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009901449
|
9009901449
90099-01449
Washer, Spring
|
90099-01449 |
— | ||
|
9009901533
|
9009901533
90099-01533
Washer, Air Bleeder Nipple
|
90099-01533 |
— | ||
|
9009904576
|
9009904576
90099-04576
BOLT
|
90099-04576 |
— | ||
|
9009904946
|
9009904946
90099-04946
Ring, O(For Bellows Cover)
|
90099-04946 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9020108106
|
9020108106
90201-08106 Washer(For Cap Nut) |
90201-08106 |
from US $0.76 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
