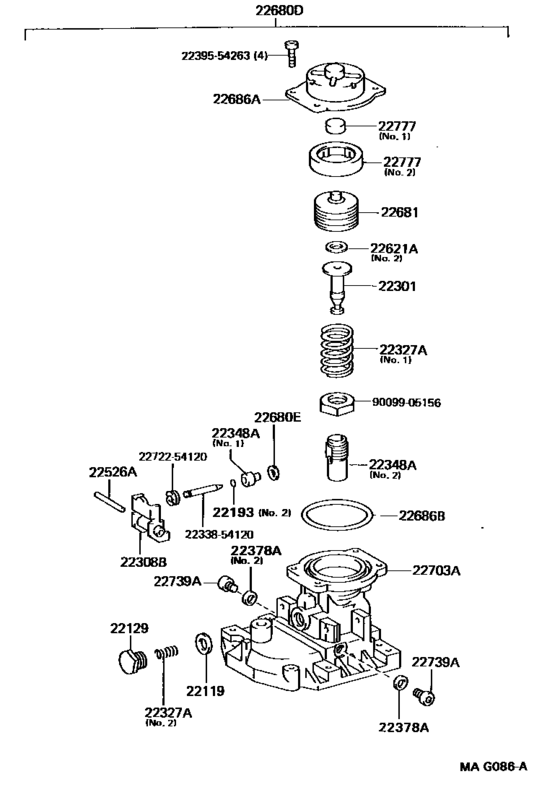

Injection Pump Body ([08.1988 - ] HIGH ALTITUDE COMPENSATOR (8808- )3B) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.1988 - 01.1990] 3B..BJ60 |
90201-12109 |
from US $1.25 |
||
|
22129
|
22129
22129-55110
Plug, Screw
[08.1988 - 01.1990] 3B..BJ60 |
22129-55110 |
— | ||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[08.1988 - 01.1990] 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22193-55031 |
— | ||
|
22193
|
22193
22193-64750 Ring, O(For Lever Connecting Pin)[08.1988 - 01.1990] 3B..BJ60; 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22193-64750 |
from US $0.84 |
||
|
22301
|
22301
22301-56310
Rod Sub-Assy, Push
[08.1988 - 01.1990] 3B..BJ60 |
22301-56310 |
— | ||
|
22308B
|
22308B
22308-54140
Lever Sub-Assy, Control
[08.1988 - 01.1990] 3B..BJ60 |
22308-54140 |
— | ||
| replacement | |||||
|
22308B
|
22308B
22308-17570
Lever Sub-Assy, Control
[08.1988 - 01.1990] 3B..BJ60 |
22308-17570 |
— | ||
|
22327A
|
22327A
22327-54120
Spring(For Bellows)
[08.1988 - 01.1990] 3B..BJ60 NO.1 |
22327-54120 |
— | ||
|
22327A
|
22327A
22327-64400
Spring(For Bellows)
[08.1988 - 01.1990] 3B..BJ60 NO.2 |
22327-64400 |
— | ||
|
22348A
|
22348A
22348-54121
Bushing, Guide
[08.1988 - 01.1990] 3B..BJ60 NO.1 |
22348-54121 |
— | ||
|
22348A
|
22348A
22348-64400
Bushing, Guide
[08.1988 - 01.1990] 3B..BJ60 NO.2 |
22348-64400 |
— | ||
|
22378A
|
22378A
22113-77090
Washer, Drain Screw
[08.1988 - 01.1990] 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22113-77090 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[08.1988 - 01.1990] 3B..BJ60; 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22378-64010 |
from US $0.42 |
||
|
22526A
|
22526A
22526-54120
Pin, Lever Support
[08.1988 - 01.1990] 3B..BJ60 |
22526-54120 |
— | ||
|
22621A
|
22621A
22621-54010
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.5,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22621-54010 |
— | ||
|
22621A
|
22621A
22622-54010
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=1.0,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22622-54010 |
— | ||
|
22621A
|
22621A
22624-54010
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.2,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54010 |
— | ||
|
22621A
|
22621A
22624-54800
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.6,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54800 |
— | ||
|
22621A
|
22621A
22624-54803
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.7,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54803 |
— | ||
|
22621A
|
22621A
22624-54804
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.8,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54804 |
— | ||
|
22621A
|
22621A
22624-54805
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.9,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54805 |
— | ||
|
22621A
|
22621A
22624-54806
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.3,W(HIGH ALTITUDE COMPENSATOR),NO.2 |
22624-54806 |
— | ||
|
22621A
|
22621A
22625-54272
Washer, Timer Adjusting
[08.1988 - 01.1990] 3B..BJ60 T=0.5; 3B..BJ60 T=0.5,W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22625-54272 |
— | ||
|
22680D
|
22680D
22680-56310
Bellows Assy, Pneumatic
[08.1988 - 01.1990] 3B..BJ60 |
22680-56310 |
— | ||
|
22680E
|
22680E
90099-01473
Washer(For Guide Bushing)
[08.1988 - 01.1990] 3B..BJ60 |
90099-01473 |
— | ||
|
22681
|
22681
22681-54460
Bellows Sub-Assy, Pneumatic
[08.1988 - 01.1990] 3B..BJ60 |
22681-54460 |
— | ||
|
22686A
|
22686A
22682-54351
Cover, Pneumatic Bellows
[08.1988 - 01.1990] 3B..BJ60 |
22682-54351 |
— | ||
|
22686B
|
22686B
90099-14057
Ring, O(For Bellows Cover)
[08.1988 - 01.1990] 3B..BJ60 |
90099-14057 |
— | ||
|
22703A
|
22703A
22703-54132
Cover Sub-Assy, Governor
[08.1988 - 01.1990] 3B..BJ60 |
22703-54132 |
— | ||
|
22703A
|
22703A
22703-54351
Cover Sub-Assy, Governor
[08.1988 - 01.1990] 3B..BJ60 W(HIGH ALTITUDE COMPENSATOR) |
22703-54351 |
— | ||
|
22739A
|
22739A
22739-54120
Bolt, Governor Link Support
[08.1988 - 01.1990] 3B..BJ60 |
22739-54120 |
— | ||
|
22777
|
22777
22777-54120
Cap, Rubber(For Bellows)
[08.1988 - 01.1990] 3B..BJ60 NO.1 |
22777-54120 |
— | ||
|
22777
|
22777
22777-64410
Cap, Rubber(For Bellows)
[08.1988 - 01.1990] 3B..BJ60 NO.2 |
22777-64410 |
— | ||
|
2233854120
|
2233854120
22338-54120
Pin, Lever Connecting
|
22338-54120 |
— | ||
|
2239554263
|
2239554263
22395-54263
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-54263 |
— | ||
|
2272254120
|
2272254120
22722-54120
Nut, Governor Shaft Rock
|
22722-54120 |
— | ||
|
9009905156
|
9009905156
90099-05156
New Genuine Part
|
90099-05156 |
— | ||
