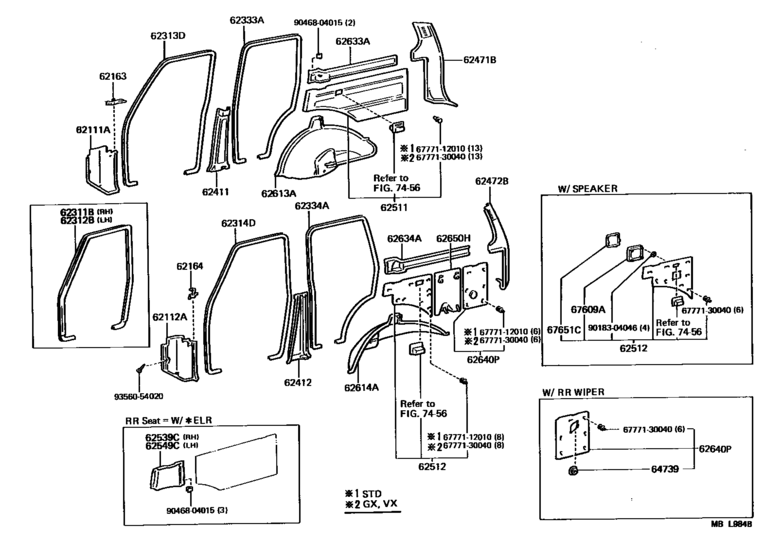

Inside Trim Board ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- BJ60
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111A
|
62111A
62101-90A00-16
Board Sub-Assy, Cowl Side Trim, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62101-90A00-16 |
— | ||
|
62112A
|
62112A
62102-90A00-16
Board Sub-Assy, Cowl Side Trim, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62102-90A00-16 |
— | ||
|
62112A
|
62112A
62102-90A05-06 Board Sub-Assy, Cowl Side Trim, LhCOWL SIDE TRIM, LH [08.1987 - 01.1990] HJ60..LHD..STD;BJ60,FJ62,HJ60..RHD..GEN W(EXTINGUISHER),SEPIA BROWN,TRIM4# |
62102-90A05-06 |
US $96.10 |
||
|
62163
|
62163
62163-90A00-16 Cover, Cowl Side Instrument Panel Bracket, Rh[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62163-90A00-16 |
US $8.59 |
||
| replacement | |||||
|
62163
|
62163
62163-90A00-03
Cover, Cowl Side Instrument Panel Bracket, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62163-90A00-03 |
— | ||
|
62164
|
62164
62164-90A00-16 Cover, Cowl Side Instrument Panel Bracket, Lh[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62164-90A00-16 |
US $8.59 |
||
| replacement | |||||
|
62164
|
62164
62164-90A00-03
Cover, Cowl Side Instrument Panel Bracket, Lh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62164-90A00-03 |
— | ||
|
62313D
|
62313D
62313-90A00-16
Trim, Front Door Opening, Rh
[08.1987 - 08.1988] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62313-90A00-16 |
— | ||
| replacement | |||||
|
62313D
|
62313D
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 08.1988] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62314D
|
62314D
62313-90A00-16
Trim, Front Door Opening, Rh
[08.1987 - 08.1988] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62313-90A00-16 |
— | ||
| replacement | |||||
|
62314D
|
62314D
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 08.1988] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62333A
|
62333A
62333-90A00-16
Trim, Rear Door Opening, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-16 |
— | ||
| replacement | |||||
|
62333A
|
62333A
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62334A
|
62334A
62333-90A00-16
Trim, Rear Door Opening, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-16 |
— | ||
| replacement | |||||
|
62334A
|
62334A
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 03.1992] BJ60,FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62411
|
62411
62411-90A00-16
Garnish, Center Pillar, Rh
[08.1987 - 03.1992] HJ60..GEN,ME;BJ60,FJ62..GEN SEPIA BROWN,TRIM4# |
62411-90A00-16 |
— | ||
|
62411
|
62411
62411-90A01-16
Garnish, Center Pillar, Rh
[08.1987 - 11.1988] FJ62..RHD..5F..GEN;BJ60,HJ60..LHD..STD W(*ELR),SEPIA BROWN,TRIM4#; FJ62,HJ60..RHD..4F W(*ELR),SEPIA BROWN,TRIM4#; BJ60..RHD;HJ60..LHD..GX..GEN;FJ62..LHD..(GX,STD)..GEN W(*ELR),SEPIA BROWN,TRIM4# |
62411-90A01-16 |
— | ||
|
62412
|
62412
62412-90A00-16
Garnish, Center Pillar, Lh
[08.1987 - 03.1992] HJ60..GEN,ME;BJ60,FJ62..GEN SEPIA BROWN,TRIM4# |
62412-90A00-16 |
— | ||
|
62412
|
62412
62412-90A01-16
Garnish, Center Pillar, Lh
[08.1987 - 11.1988] FJ62..RHD..5F..GEN;BJ60,HJ60..LHD..STD W(*ELR),SEPIA BROWN,TRIM4#; FJ62,HJ60..RHD..4F W(*ELR),SEPIA BROWN,TRIM4#; BJ60..RHD;HJ60..LHD..GX..GEN;FJ62..LHD..(GX,STD)..GEN W(*ELR),SEPIA BROWN,TRIM4# |
62412-90A01-16 |
— | ||
|
62471B
|
62471B
62471-90A00-18
Cover, Rear Pillar, Rh
[08.1988 - 03.1992] HJ60..GX,VX;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..S OB..GX..GEN IVORY,TRIM1#,4#; HJ60..LHD..STD;BJ60,FJ62..STD..(GEN,ME) IVORY,TRIM4# |
62471-90A00-18 |
— | ||
|
62472B
|
62472B
62472-90A00-18
Cover, Rear Pillar, Lh
[08.1988 - 03.1992] HJ60..GX,VX;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..S OB..GX..GEN IVORY,TRIM1#,4#; BJ60,FJ62,HJ60..STD..(GEN,ME) IVORY,TRIM4# |
62472-90A00-18 |
— | ||
|
62511
|
62511
62510-90A07-16 Board, Quarter Inside Trim, RhQUARTER INSIDE TRIM, RH [08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..(GEN,ME) SEPIA BROWN,TRIM4# |
62510-90A07-16 |
US $109.20 |
||
|
62511
|
62511
62510-90A16-06 Board, Quarter Inside Trim, Rh[08.1987 - 01.1990] HJ60..RHD..STD..GEN;BJ60,FJ62..STD..(GEN,ME) W(*FLO),SEPIA BROWN,TRIM4# |
62510-90A16-06 |
US $109.20 |
||
| replacement | |||||
|
62511
|
62511
62510-90A25-06 Board, Quarter Inside Trim, RhQUARTER INSIDE TRIM, RH [08.1987 - 01.1990] HJ60..RHD..STD..GEN;BJ60,FJ62..STD..(GEN,ME) W(*FLO),SEPIA BROWN,TRIM4# |
62510-90A25-06 |
US $126.67 |
||
|
62512
|
62512
62520-90A39-06 Board, Quarter Inside Trim, Lh[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..(GEN,ME) SEPIA BROWN,TRIM4# |
62520-90A39-06 |
US $57.95 |
||
|
62539C
|
62539C
62539-90A01-06
Cover, Quarter Trim Upper Belt Hole, Rh
[08.1988 - 01.1990] BJ60,HJ61;FJ62..STD..(GEN,ME);HJ60..RHD..STD..GEN;FJ62,HJ60..RHD..(4FC,5F)..LUB SEPIA BROWN,TRIM4#; HJ60..LHD..STD W(VINYL FRONT FLOOR MAT OR *FLO),SEPIA BROWN,TRIM4# |
62539-90A01-06 |
— | ||
|
62549C
|
62549C
62549-90A00-16
Cover, Quarter Trim Upper Belt Hole, Lh
[08.1988 - 01.1990] BJ60,HJ61;FJ62,HJ60..STD;FJ62,HJ60..RHD..(4FC,5F)..LUB SEPIA BROWN,TRIM4# |
62549-90A00-16 |
— | ||
|
62613A
|
62613A
62613-90A00-16 Cover, Wheel House Trim, RhQUARTER WHEEL HOUSE, RH [08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..(GEN,ME) SEPIA BROWN,TRIM4# |
62613-90A00-16 |
US $48.48 |
||
|
62613A
|
62613A
62613-90A07-06
Cover, Wheel House Trim, Rh
[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..(GEN,ME) SEPIA BROWN,TRIM4# |
62613-90A07-06 |
— | ||
|
62613A
|
62613A
62613-90A08-06 Cover, Wheel House Trim, RhWHEEL HOUSE TRIM, RH [08.1988 - 01.1990] HJ60..RHD..STD..GEN W(PARALLEL 3RD SEAT),SEPIA BROWN,TRIM4#; FJ62..LHD..SRF..STD..GEN W(PARALLEL 3RD SEAT),SEPIA BROWN,TRIM4#; FJ62..RHD..STD..GEN W(*RFM & PARALLEL SEAT),SEPIA BROWN,TRIM4#; BJ60;FJ62..STD..ME;FJ62..HRF..STD;HJ60..LHD. |
62613-90A08-06 |
US $158.70 |
||
|
62613A
|
62613A
62613-90A14-06 Cover, Wheel House Trim, LhQUARTER WHEEL HOUSE, RH [08.1987 - 01.1990] FJ62..HRF..STD W(*FLO),SEPIA BROWN,TRIM4#; FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(*FLO),SEPIA BROWN,TRIM4#; BJ60..GEN;FJ62..STD..ME;HJ60..LHD..STD W(*FLO),SEPIA BROWN,TRIM4# |
62613-90A14-06 |
US $48.78 |
||
|
62614A
|
62614A
62613-90A00-16 Cover, Wheel House Trim, RhQUARTER WHEEL HOUSE, RH [08.1987 - 01.1990] FJ62..HRF..STD SEPIA BROWN,TRIM4#; FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN SEPIA BROWN,TRIM4#; BJ60..GEN;FJ62..STD..ME;HJ60..LHD..STD W(*FLO),SEPIA BROWN,TRIM4# |
62613-90A00-16 |
US $48.48 |
||
|
62614A
|
62614A
62614-90A00-16
Cover, Wheel House Trim, Lh
[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD..(GEN,ME) W(*RFM),SEPIA BROWN,TRIM4# |
62614-90A00-16 |
— | ||
|
62614A
|
62614A
62614-90A01-16 Cover, Wheel House Trim, LhWHEEL HOUSE TRIM, LH [08.1988 - 01.1990] HJ60..RHD..STD..GEN W(PARALLEL 3RD SEAT),SEPIA BROWN,TRIM4#; FJ62..RHD..STD..GEN W(PARALLEL 3RD SEAT),SEPIA BROWN,TRIM4#; FJ62..LHD..SRF..STD..GEN W(PARALLEL 3RD SEAT),SEPIA BROWN,TRIM4#; BJ60;FJ62..STD..ME;FJ62..HRF..STD;HJ60..LHD..ST |
62614-90A01-16 |
US $183.46 |
||
|
62633A
|
62633A
62633-90A11-08 Garnish, Quarter Trim, RhQUARTER TRIM, RH [08.1988 - 01.1990] BJ60,FJ62..STD..(GEN,ME) IVORY,TRIM4#; HJ60..STD..GEN W(*RFM),IVORY,TRIM4# |
62633-90A11-08 |
US $123.76 |
||
|
62634A
|
62634A
62634-90A11-08 Garnish, Quarter Trim, LhQUARTER TRIM, LH [08.1988 - 01.1990] BJ60,FJ62..STD..(GEN,ME) IVORY,TRIM4#; HJ60..STD..GEN W(*RFM),IVORY,TRIM4# |
62634-90A11-08 |
US $123.76 |
||
|
62640P
|
62640P
62640-90A00-06 Panel Assy, Quarter Trim, Rear Lh[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD SEPIA BROWN,TRIM4# |
62640-90A00-06 |
US $37.71 |
||
|
62650H
|
62650H
62650-90A05-06 Panel Assy, Quarter Trim, Center[08.1987 - 01.1990] BJ60,FJ62,HJ60..STD SEPIA BROWN,TRIM4# |
62650-90A05-06 |
US $84.45 |
||
|
6777112010
|
6777112010
67771-12010 Retainer, Door Trim |
67771-12010 |
from US $1.77 |
||
|
6777130040
|
6777130040
67771-30040 Retainer(For Front Door Trim Board) |
67771-30040 |
US $3.14 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $2.15 |
||
|
9046804015
|
9046804015
90468-04015
New Genuine Part
|
90468-04015 |
— | ||
|
9356054020
|
9356054020
93560-54020 New Genuine Part |
93560-54020 |
US $1.97 |
||
